2. Loading Supplies

2.1 Adding Paper/Labels

The printer can print text, bar codes and graphics on thermal receipt paper. See "Supply
Specifications" on section 5.2 for the width, thickness requirements and approved vendors.
Follow these steps to load printer paper.
Press Paper Door Release Button. The door will open slightly. Open rest of the way as
shown in Figure 6.
Grip either side of the paper door and open - it will open to 180 degrees.
Note: Paper Door Release button must be depressed when opening and closing paper door
Place the paper roll into the paper supply well. Make sure the paper supply unwinds
from the bottom as indicated below with the thermal side closest to the print head.
Unroll about 3 inches of paper from the roll and position between the print head
guides.
Note: Pull Paper Roll Leader Out of Printer. Note direction of paper travel
While pressing Paper Door Release button, close paper door.
Let go of the Paper Door Release button and press the printer door until fully closed
1500T User's Guide

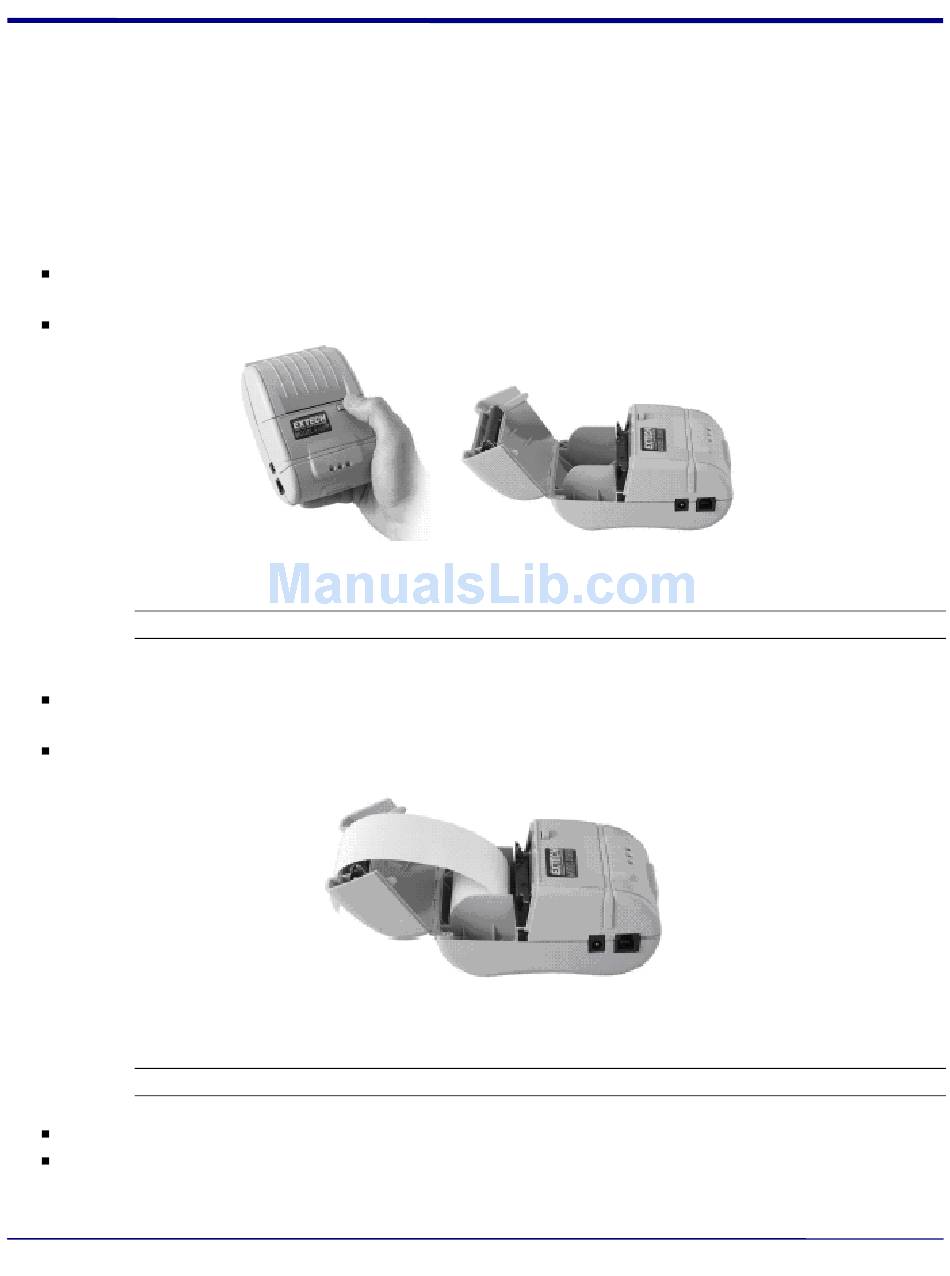

FIGURE 5: OPENING PAPER DOOR
FIGURE 6: LOADING SUPPLY
Rev 2.1 11
