Extech Instruments APEX 3 Quick Start Manual

Status Indicator LEDs
Press the ON/OFF button to turn the printer on. Three LED indicators
located on the top of the printer indicate various printer functions. LED will
indicate function as described below:
LED Color
Flashing
Green
Flashing
LED #1
Blue
Communication
Flashing
Amber
Red
LED #2
Amber
Battery
Green
LED #3
Magnetic Card
Reader & Printer Error
Red
Flashing
LED #1 LED #2 LED #3

Performing Self Test

1. The printer must be OFF.
2. Press and hold the Paper Feed Button.
3. While holding the Paper Feed Button, press
the ON/OFF Button.
Communication: All printers ship in RS232 and Bluetooth™ mode.
IrDA and 802.11g are optional features. Refer to the User Guide for
set-up instructions.
Copyright @ 2008 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form. Extech Instru-
ments Corporation 285 Bear Hill Road, Waltham, MA 02451-1064
Phone: 1-781-890-7864 Fax: 1-781-890-7864 Web: www.extech.com/printers
State Description
Power is ON and the printer is in RS232 or IRDA
mode
Steady Communicating with host
Power is ON and the printer is in Bluetooth mode
Steady Transmitting/Receiving
Power is ON and the printer is in 802.11b/g mode
Steady Transmitting/Receiving
Steady Low power indication
Battery being charged. The LED
Steady will turn off when the battery
is fully charged
• Indicates that MCR is ready to accept data
Steady
• Indicates that SCR is ready to accept data
• Printer Error. The printer is out-of- paper or Paper
Steady door is open.
• MCR/SCR faulty condition
Indicates the print head is hot and printing is
paused
Model APEX 3

Mobile Printer

Quick Start Guide

This guide provides reference illustrations of the initial steps to quickly
get your APEX 3 printer up and running. Refer to the User's Guide
for more detailed information on the operation and use of the APEX 3
printer. A copy of the User's Guide can be downloaded
from www.extech.com/printers.

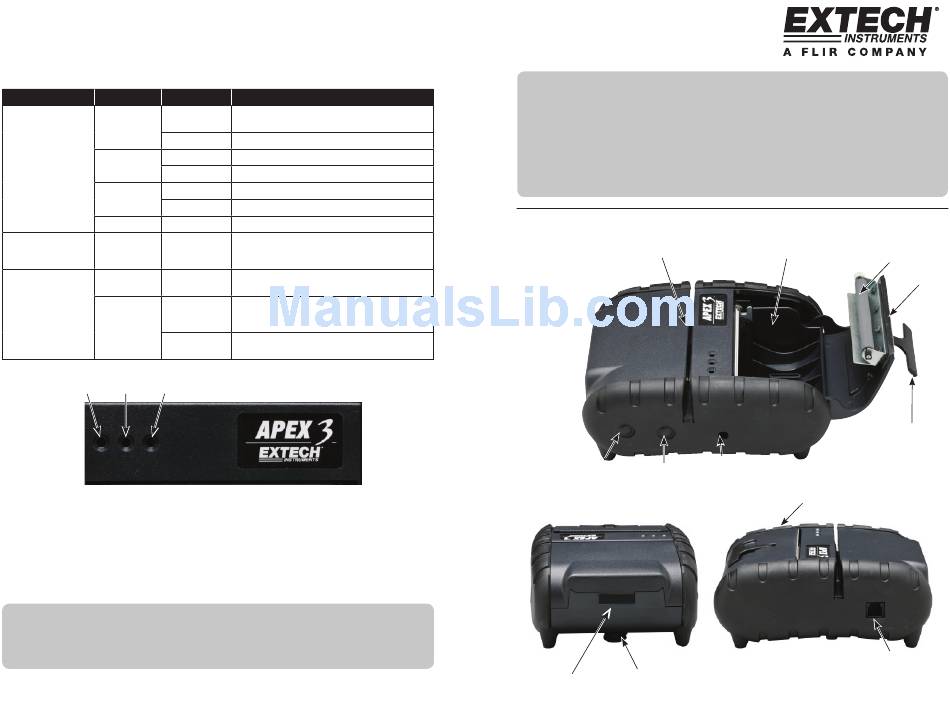

APEX 3 Overview
Window
Rev. 112408-R1
MCR Slot
On/Off AC Adaptor
Paper Feed
Button Port
Button
Belt Clip
IrDa
Paper
Platen
Compartment
Roller
Metal
Tear Bar
Paper Door
Pull Lever
Paper Door
Release Button
Serial
Port
