1.4 Attaching Optional Belt Loop System

The belt loop system consists of two parts:
A knob located on the back part of the printer just above the battery door
A strap with click on connector
To attach the strap insert the knob located at the bottom of the printer into the slot of the
connector. Pull down until you hear a click. The printer is now secure. Place the loop over
your belt. Allow the printer to hang down on the left or right hip.
To release the printer, press in on the two latches on the connector and pull the knob
clear of the slot
Note: Do not force or pull the printer from the connector without pressing in on the two
latches
1500T User's Guide

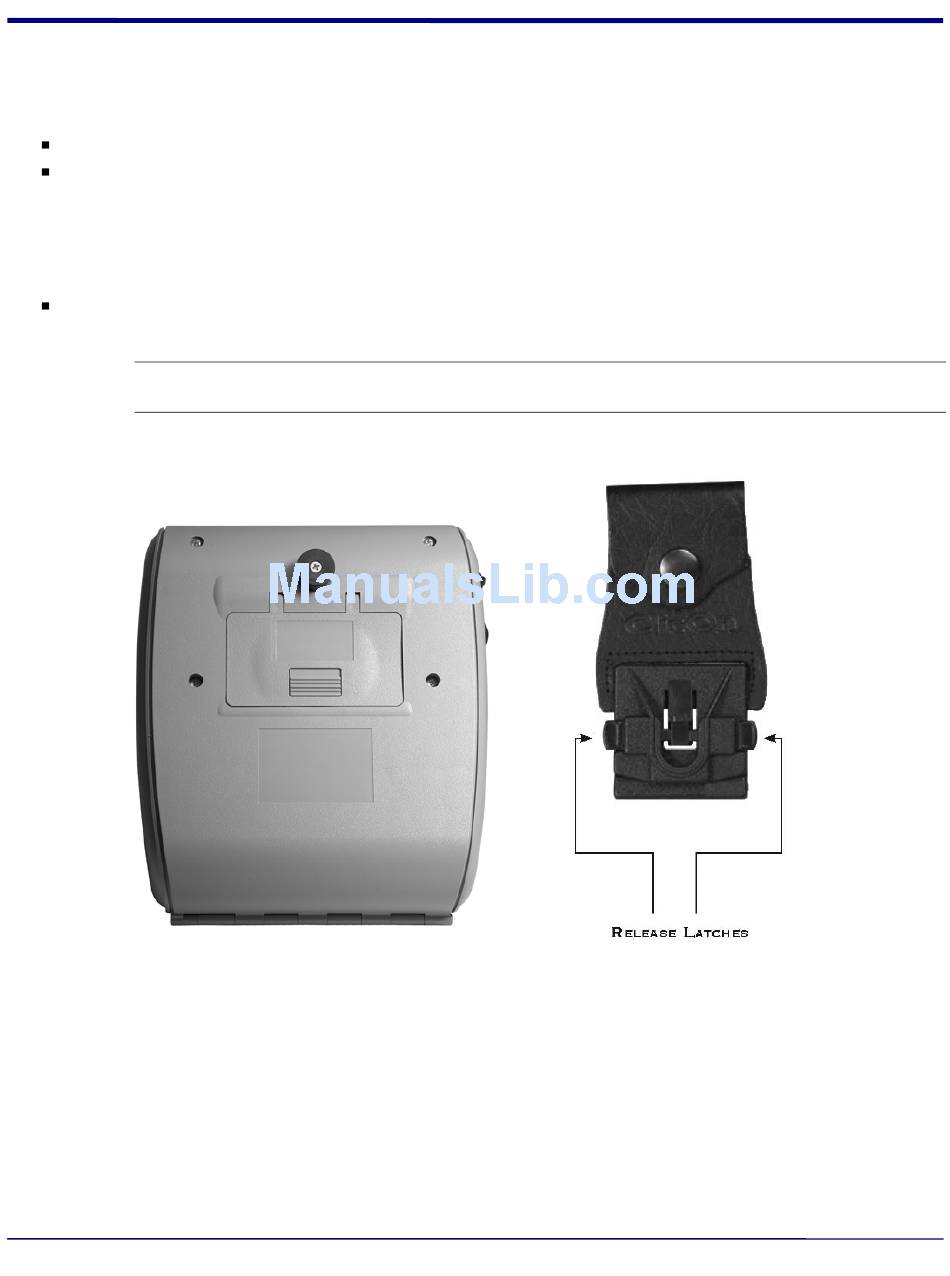

FIGURE 5: KNOB CONNECTION AND QUICK CLIP
