Outdoor Unit

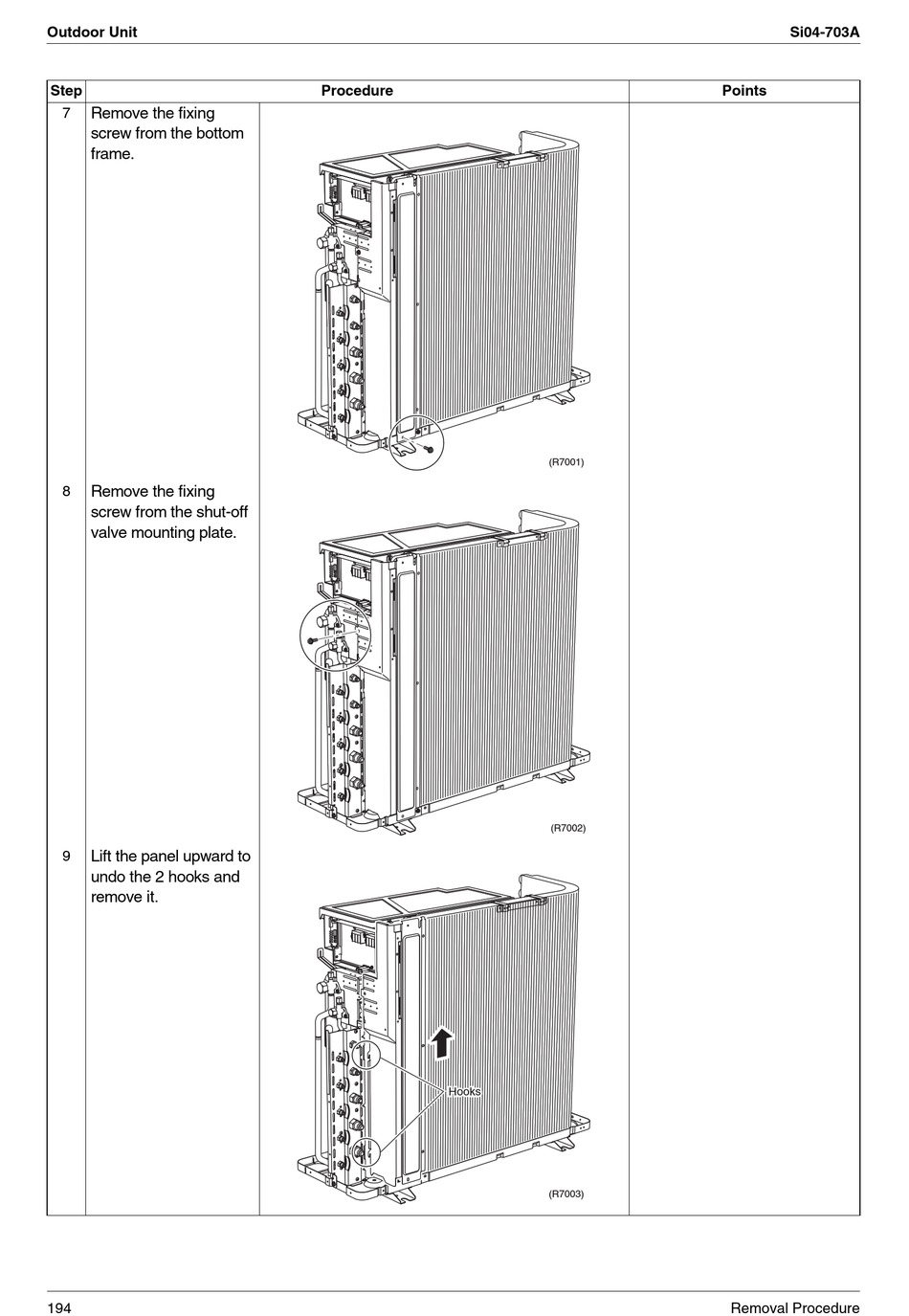

Step
7 Remove the fixing
screw from the bottom
frame.
Remove the fixing
8
screw from the shut-off
valve mounting plate.
Lift the panel upward to
9
undo the 2 hooks and
remove it.
194
Procedure
Hooks Hooks
(R7001) (R6406)
(R7002)
(R7003)
Si04-703A
Points
Removal Procedure
