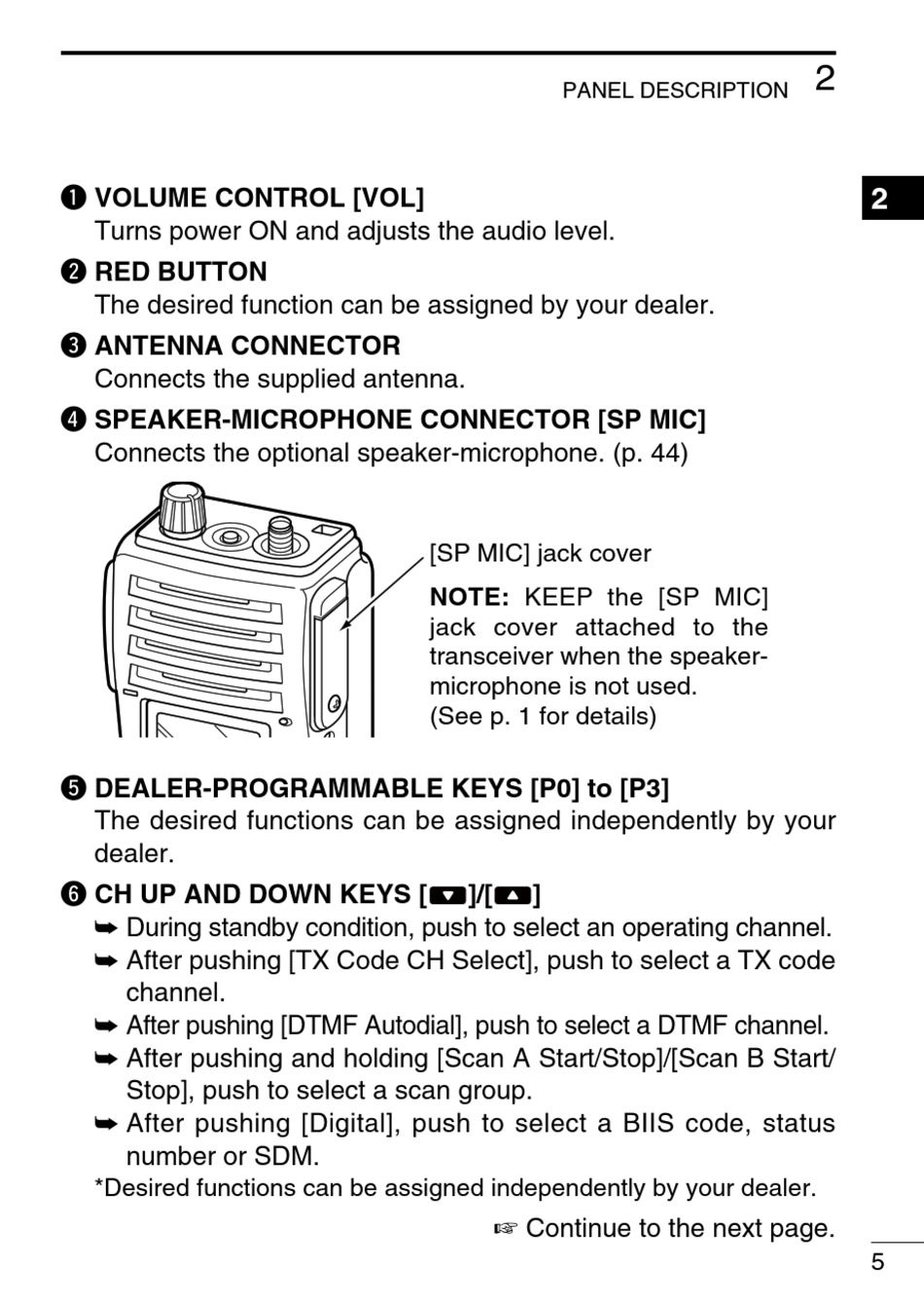

Icom IC-F51 Instruction Manual page 11

q VOLUME CONTROL [VOL]
Turns power ON and adjusts the audo level.
w RED BUTTON
The desred functon can be assgned by your dealer.
e ANTENNA CONNECTOR
Connects the suppled antenna.
r SPEAKER-MICROPHONE CONNECTOR [SP MIC]
Connects the optonal speaker-mcrophone. (p. 44)
t DEALER-PROGRAMMABLE KEYS [P0] to [P3]
The desred functons can be assgned ndependently by your
dealer.
y CH UP AND DOWN KEYS [
➥ Durng standby condton, push to select an operatng channel.
➥ After pushng [TX Code CH Select], push to select a TX code
channel.
➥ After pushng [DTMF Autodal], push to select a DTMF channel.
➥ After pushng and holdng [Scan A Start/Stop]/[Scan B Start/
Stop], push to select a scan group.
➥ After pushng [Dgtal], push to select a BIIS code, status
number or SDM.
*Desred functons can be assgned ndependently by your dealer.
PANEL DESCRIPTION
[SP MIC] jack cover
NOTE: KEEP the [SP MIC]
jack cover attached to the
transcever when the speaker-
mcrophone s not used.
(See p. 1 for detals)
]/[ ]
☞ Contnue to the next page.
