36 en | Rack Installation

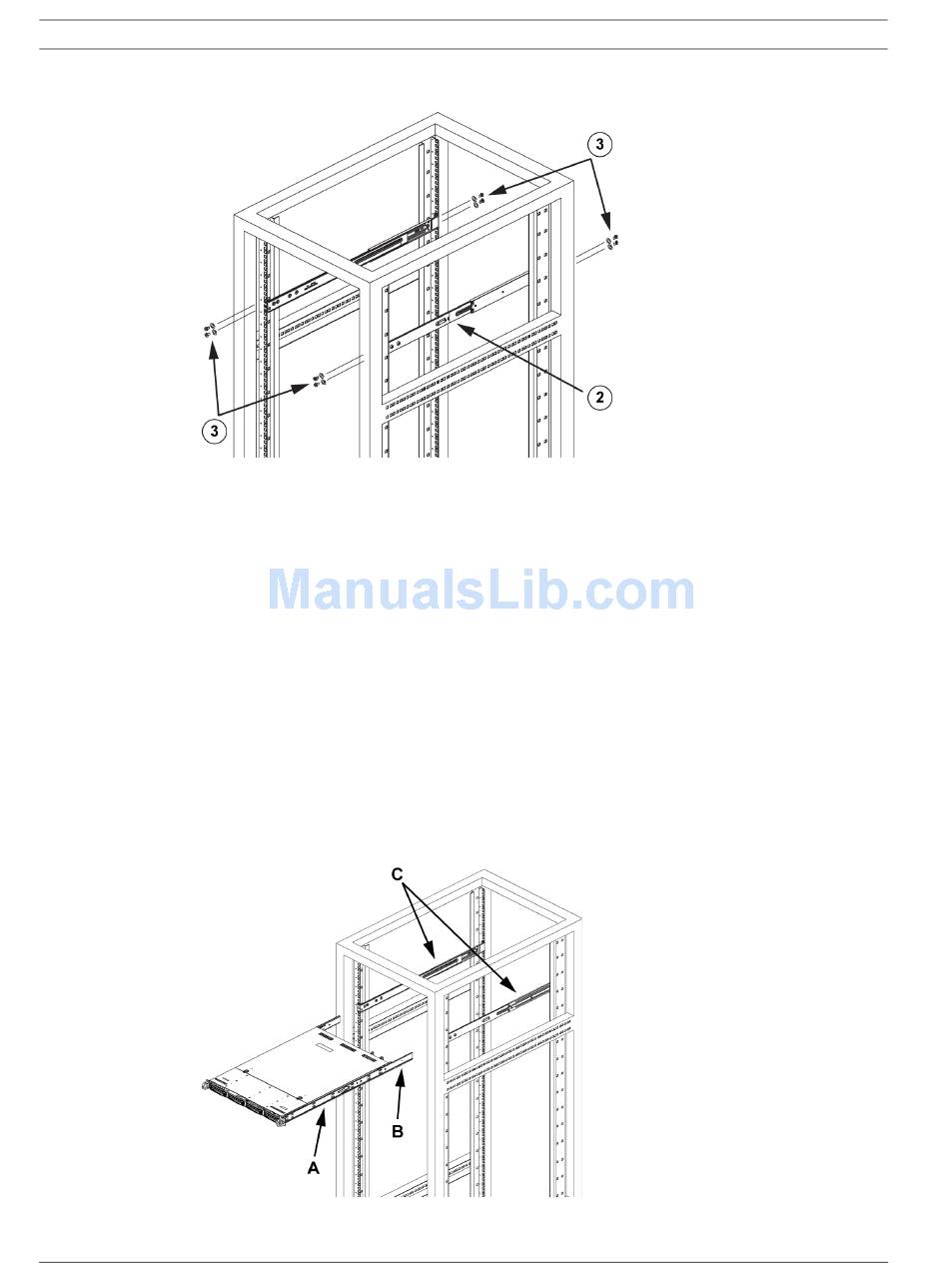

Installing the Outer Rails to the Rack
1.
2.
3.
4.
Locking Tabs
–
4.3.4

Installing the Chassis into a Rack

- | V1 | 2011.10
Attach the longer section of the outer rail to the outside of the shorter section of the
outer rail. You must align the pins with the slides. Both ends of the outer rail must face
the same direction in order to be secured to the rack (see also Section Assembling the
Outer Rails).
Adjust both sections of the outer rail to the proper length so that the rail fits snugly
within the rack.
Secure the longer section of the outer rail to the front of the rack with two M5 screws
and the shorter section to the rear side of the rack with two M5 screws.
Repeat steps 1-4 for the remaining outer rail.
Both chassis rails have a locking tab, which serves two functions. The first is to lock the
system into place when installed and pushed fully into the rack, which is its normal
position. Secondly, these tabs also lock the system in place when fully extended from the
rack. This prevents the system from coming completely out of the rack when you pull it
out for servicing.
