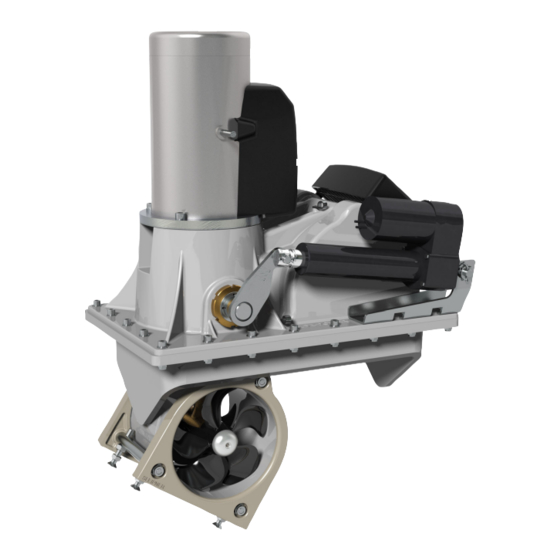

  • Page 1 SRV(P) 80/185 T SRL(P) 80/185 T SRV(P) 100/185 T SIDE-POWER SRL(P) 100/185 T Thruster Systems Installation & User Guide Installasjons- og brukerveiledning SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Tel: +47 69 30 00 60 w w w . s i d e - p o w e r . c o m...

  • Page 2: Table Of Contents

    Contents Installation instructions Measurements, thruster..............3 S-Link Planning and important precautions ...........4 S-link system overview .............17 Technical specifications ..............5 Planning & precautions ............18 Thruster installation User’s manual Positioning the thruster ..............6 Control panels ................19 Moulding ..................9 General use ................20 Fitting upper part and hatch ............ 10 Installation checklist..............

  • Page 3: Measurements, Thruster

    Measurements, thruster Målskisse, truster 244,00 166,50 192,50 13,5 550,00 Designed by Material Type Date Drawing nr Tolerance NS-ISO 2768-1 01-06-080-100 Tore Eriksen 16.05.2012 Copyright All rights reserved Title SR80/100T SRV(P)80/185T - SRL(P)80/185T - SRV(P)100/185T SRL(P)100/185T SLEIPNER MOTOR AS 1.0.5 - Sept. 2014 Part nr Weight Size...

  • Page 4: Planning And Important Precautions

    Planning and important precautions Prior to installation, it is important that the installer reads this guide to ensure necessary acquaintance with this product.  The thruster must NOT be installed in compartments that require ignition proof electric equipment. If necessary, make a separate compartment.

  • Page 5: Technical Specifications

    Fig. 1 WATERLINE Min. 185mm Technical specifications Tekniske spesifikasjoner TYPE TYPE SRV/SRL Thruster med en hastighet SRV/SRL Thruster with one speed TYPE TYPE SRVP/SRLP: Thruster med regulerbar hastighet SRVP/SRLP: Thruster with speed control Motor: Spesialutviklet reversibel DC-motor. Motor: Custom made reversible DC-motor. Girhus: Sjøvannsbestandig bronsje.

  • Page 6: Positioning The Thruster

    Fig. 2 Fig. 2b CENTERLINE, THRUSTER Refrence Front line FORWARD PLACEMENT MARKING Hull CENTERLINE, FRONT HULL Fig. 4 Fig. 3 Designed by Checked by Approved by Date Date olekr 05.08.2014 Edition Sheet 1 / 1 DON`T GRIND OR REMOVE MATERIAL FROM THESE TWO SURFACES! NS-ISO 2768-1 Over t.o.m.
  • Page 7 FRONT Fig. 5 CUT LINE VIEW FROM CUT LINE INSIDE 55,5 Fig. 5b Thruster casing Designed by Material Type Date Drawing nr Tolerance NS-ISO 27 Tore Eriksen Assembly med vertikal moto 29.03.2012 Copyright All rights reserved Title SLEIPNER MOTOR AS Cut, 45 degree Weight Part nr...
  • Page 8 Fig. 6 Fig. 7 Hatch in conflict with hull          Fig. 7b  Pivot point for rotation (Maintain  reference  height here) Lift aft end  to rotate unit and make clearence for hatch Make sure hatch stops free...

  • Page 9: Moulding

    Fig. 9 Grind in this areas, deepest where the hull and lower unit meets. Layers of fiberglass cloth Moulding Laminering Enheten er nå i riktig posisjon og er klar for laminering til skroget. The unit is now positioned correctly and is ready to be laminated to the hull.

  • Page 10: Fitting Upper Part And Hatch

    Fig. 10a Bolt tightening force: 4 Nm (2.9 lb/ft) Seal with approved sealant Fig. 10b Secure with glue Adjust hatch fitting with bolts Fill for perfect seal Fitting the upper part & hatch Montering av overdel og luke Monter overdel til underdel ved hjelp av godkjent tetningsmasse, og Assemble the upper part of the unit to the lower part using approved samtlige skruer/skiver/låsemuttere i flens.

  • Page 11: Fitting The Electromotor

    Fig. 11a Bolt tightening force (4x): 33 Nm (24 lb/ft) Fitting the electromotor Montering av elektromotor 1. Remove the 4 bolts in the motor bracket. 1. Fjern de 4 boltene i motorinnfestingen 2. Plasser motor slik at motorreleet peker mot controlleren, Sjekk at 2.

  • Page 12: Electrical Installation

     Fig. 13 Fig. 12       SRV/SRL    Models        SRVP/SRLP Models           Battery & cable recommendations: Model Voltage Nominal Min.

  • Page 13: Technical & Visual Wiring Diagrams, Srv/Srl Models

    Technical wiring diagram, SRV/SRL models To S-link control system S-link automatic Version (optional) Main fuse grey Actuator blue Main switch black white Controller 150000 Motor pink blue Battery Position sensor 12/24V Visual wiring diagram, SRV/SRL models Joystick Touch control panel control panel PJC 211 (Single thruster) 8700...

  • Page 14: Technical & Visual Wiring Diagrams, Srvp/Srlp Models

    Technical wiring diagram, SRVP/SRLP models                                    ...

  • Page 15: Check And Calibrate Drive Shaft Alignment

    Fig. 15 Fig. 14            Dipswitch Do not change Operating Mode     Thruster Type Single Align pointer Actuator Service Mode on lever arm     ...

  • Page 16: Maintenance

    Check and relubricate Anode, with waterproof grease if gearleg neccessary Vedlikehold Maintenance » Keep the propeller and gearhouse clean from growth by painting » Hold propellen og girhuset fritt for algevekst ved å påføre bunnstoff før with antifouling before every season. hver sesong.

  • Page 17: S-Link System Overview

    Example of wiring Wiring of S-link system Wiring of S-link system Explaining S-link Example Explaining S-link Example S-link is a ”CanBus” based control system S-link is a ”CanBus” based control system with full intelligent communication with full intelligent communication between all units in the system, much like between all units in the system, much like a computer network.

  • Page 18: Planning & Precautions

    Example of the control wiring with S-link system for boats with one control position and one retractable thruster. You need: 2 x 6 1327 End terminators 3 x 6 1326 T-connectors 1 x 6 1328 Power spur 2 x 6 1320-xxM Backbone cables 2 x 6 1321-xxM Spur cables BB2=___ BB1=___...

  • Page 19: Control Panels

    Control panels Kontrollpaneler PANEL ON: push both “ON” buttons simultaneously, thruster deploys. PANEL PÅ: Trykk begge “ON”-knappene samtidlig og trusteren felles ut PANEL OFF: push “OFF” button, thruster retracts. PANEL AV: Trykk på “OFF”-knappen og trusteren felles inn. For a detailed description of status and alarm messages shown, please For detaljert beskrivelse av status og alarmer som vises i panelene, se refer to the manual included with the control panel.

  • Page 20: General Use

    1. Skru på hovedstrømmen (skru alltid av hovedstrømmen når du ikke er the main power switch when not on board.) A Side-Power Automatic om bord i båten). En Side-Power Automatic Main Switch slås på / av Main Switch will turn on/off when the panel is turned on/off.

  • Page 21: Installation Checklist

    Checklist Sjekkliste  Propeller is fastened correctly to the shaft. Propellen er festet til akselen på korrekt vis.   Propeller turns freely in tunnel. Propellen roterer fritt i tunnel.   The zinc-anode holding screw is tightened well with thread glue. Festeskruen til sinkanoden er festet med gjengelim.

  • Page 22: Important User Precautions

    Important user precautions Viktige brukerforbehold • Forviss deg om at du kjenner plasseringen av hovedstrømsbryteren • Ensure that you know the location of the main battery switch that disconnects the thruster from all power sources (batteries) so that til baugtrusteren, som kutter all strøm til trusteren, så trusteren kan the thruster can be turned off in case of a malfunction.

  • Page 23: Troubleshooting

    Troubleshooting Before seeking assistance at the help desk of your Side-Power dealer/distributor please perform these tests and make notes of all measurements to ensure that they have as much information as possible to work on. Some error messages and alarms will be shown in the panel display.

  • Page 24: Problemer Og Løsninger

    Problemer og løsninger Før du søker hjelp hos din forhandler kan du foreta noen tester, og notere ned resultatet for at forhandleren skal ha mest mulig informasjon til rådighet. Noen feilmeldinger og alarmer vil kunne vises i betjeningspanelet. Vennligst se manualen for panelet.

  • Page 25: Warranty Statement

    Warranty statement 1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years (Leisure Use) or one year (Commercial use) from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period.

  • Page 26: Spareparts Lists & Drawings

    Partslist - SRV(P)80/185T - SRL(P)80/185T - SRV(P)100/185T SRL(P)100/185T 6 1268 4 2052 6 1226 B RK0008 7 1363 4 1126 6 1232i 2 3208 4 2043 6 1286 7 1500 10 1225 1 0612 6 2025 6 8810 4 2035 4 1372 12 10 1440 6 1012...
  • Page 27 Partslist - SRV(P)80/185T - SRL(P)80/185T - SRV(P)100/185T SRL(P)100/185T SP 75 Ti SRV(P)80/185T - SRL(P)80/185T - SRV(P)100/185T SRL(P)100/185T 1.0.5 - Sept. 2014...

  • Page 28: Revision

    Revision Revision Date Comment 110814 Changed description of cut out hole for thruster case. new mesurements. Page 4-6. Changed last page. Updated parts list. Updated sealant info. SRV(P)80/185T - SRL(P)80/185T - SRV(P)100/185T SRL(P)100/185T 1.0.5 - Sept. 2014...
  • Page 29 Notes SRV(P)80/185T - SRL(P)80/185T - SRV(P)100/185T SRL(P)100/185T 1.0.5 - Sept. 2014...
  • Page 30 Notes SRV(P)80/185T - SRL(P)80/185T - SRV(P)100/185T SRL(P)100/185T 1.0.5 - Sept. 2014...
  • Page 31 Notes SRV(P)80/185T - SRL(P)80/185T - SRV(P)100/185T SRL(P)100/185T 1.0.5 - Sept. 2014...

  • Page 32: Service Centres

    Worldwide sales and service www.side-power.com SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Tel: +47 69 30 00 60 Fax:+47 69 30 00 70 www.side-power.com sidepower@sleipner.no...
