TV One 1T-C2-100 Operation Manual

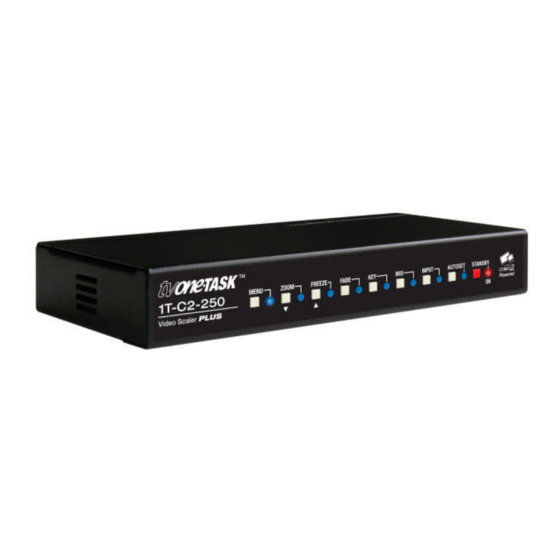

1t-c2 series down converter, video scaler
Hide thumbs Also See for 1T-C2-100:
Table of Contents

Advertisement

Quick Links

Download this manual
1T-C2 Series
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1T-C2-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TV One 1T-C2-100

Summary of Contents for TV One 1T-C2-100

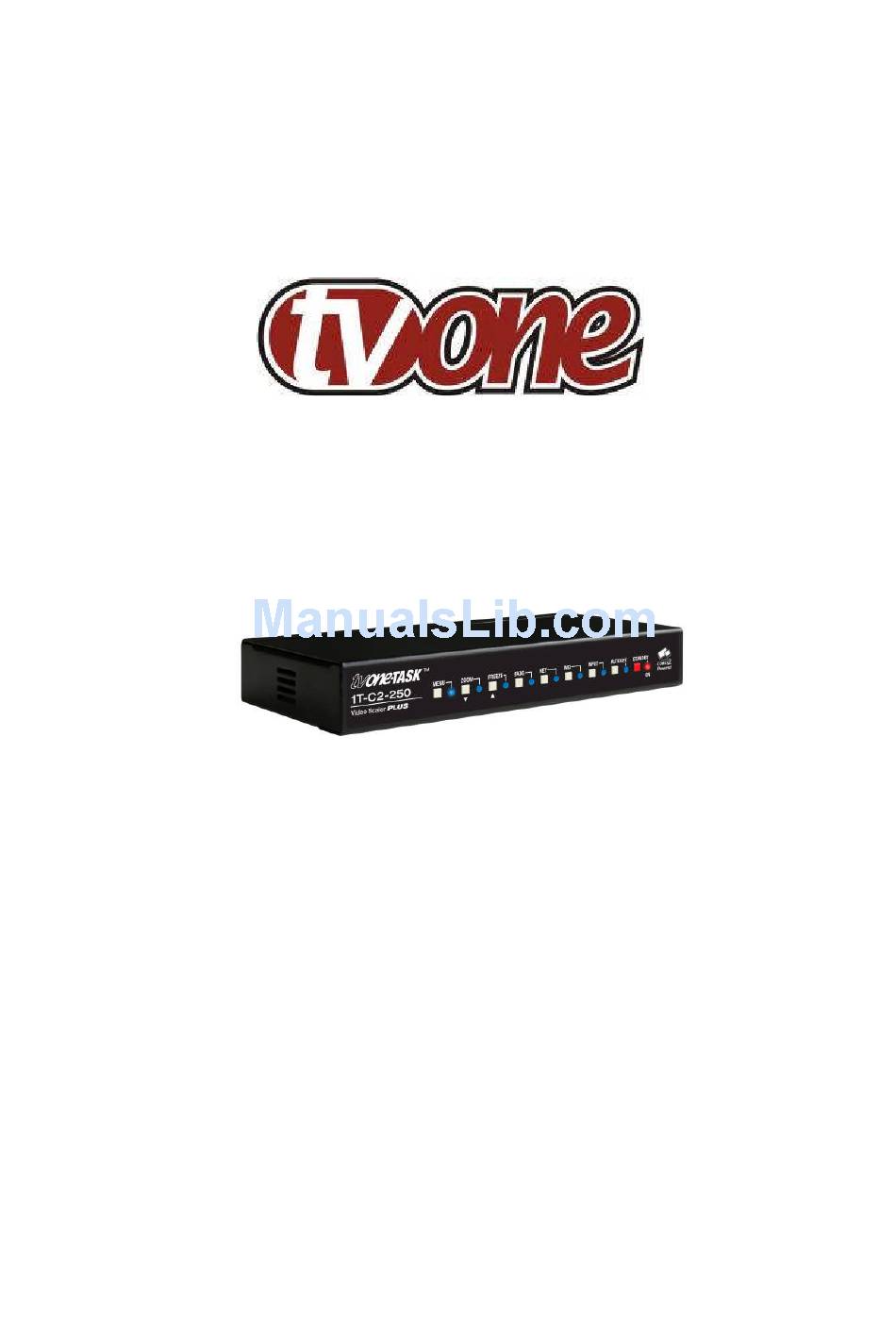

  • Page 1 1T-C2 Series Operation Manual...
  • Page 2 1T-C2 S ERIES PERATION ANUAL...

  • Page 3: Table Of Contents

    1T-C2 S ERIES PERATION ANUAL Table of Contents DISCLAIMER ....................1 Regulatory Agency Acceptance................1 FCC Statement ....................1 Manual Version Information................. 2 Manual Copyright Notice ..................2 IMPORTANT SAFETY INSTRUCTION............3 DEVICE SUMMARY ................... 13 Device Capabilities.................... 13 Device Features ....................
  • Page 4 1T-C2 S ERIES PERATION ANUAL 8.6.2 DVI Source Menu Items ..................37 8.6.3 RGB Source Menu Items................... 39 8.6.4 CV & YC Source Menu Items ................40 8.6.5 Still Image Store / Testcard Source Menu Items..........41 Items associated with the Adjust resolutions group ........... 41 Items Associated with the System group............
  • Page 5 1T-C2 S ERIES PERATION ANUAL 12.14 No video present from the UTP output.............. 68 13 RETURN PROCEDURE ................69 13.1 Are you sure there's a fault?................69 13.2 To return a unit for repair................... 69 14 WARRANTY POLICY ................. 71 15 CONNECTOR PINOUTS ..............

  • Page 6: Disclaimer

    1T-C2 S ERIES PERATION ANUAL DISCLAIMER This product is intended for professional and/or home use. This product is not intended for use in a medical environment and does not have the required certifications for such use. Similarly, use aboard any aircraft or spacecraft while in flight or as an adjunct to any surface, airborne or marine navigation system or any offshore marine activity, including control of any watercraft, or any use similar to those specifically herein mentioned is prohibited.

  • Page 7: Manual Version Information

    Release Date: May, 2009 Manual Copyright Notice This Operation Manual is the intellectual property of TV One, ©2006, 2007, 2008, 2009. No portion of this manual may be copied or reproduced in any manner or by any means, including, but not limited to electronic and electro-mechanical, without...

  • Page 8: Important Safety Instruction

    1T-C2 S ERIES PERATION ANUAL IMPORTANT SAFETY INSTRUCTION To insure the best from this product, please read this manual carefully. Keep it in a safe place for future reference. To reduce the risk of electric shock, do not remove the cover from the unit. No user serviceable parts inside.
  • Page 9 1T-C2 S ERIES PERATION ANUAL 2.5 Ventilation Slots and openings in the sides of the unit are provided for ventilation. To ensure reliable operation, avoid obstruction of these openings and ensure the unit is installed in a well-ventilated area. 2.6 Intellectual property Some IC chips in this product include confidential and/or trade secret property.
  • Page 10 1T-C2 S ERIES PERATION ANUAL 2 IMPORTANT: CONSIGNES DE SECURITE Afin de tirer le meilleur de ce produit, merci de lire attentivement ce manuel. Gardez-le dans un endroit sûr pour pouvoir le consulter à nouveau. Afin de réduire le risque de choc électrique, ne retirez pas l’unité de sa protection. Aucune pièce réparable par l’utilisateur à...
  • Page 11 1T-C2 S ERIES PERATION ANUAL L’installation de cette unité doit se faire dans un endroit frais et sec, éloigné de sources excessives de chaleur, de vibrations, de poussière, d’humidité et de froid. 2.5 Aération Les rainures et les ouvertures sur les cotés de l’unité servent à l’aérer. Pour permettre une utilisation sûre, évitez d’obstruer ces ouvertures et assurez-vous que l’unité...

  • Page 12: Instrucciones Importantes De Seguridad

    1T-C2 S ERIES PERATION ANUAL 2 INSTRUCCIONES IMPORTANTES DE SEGURIDAD Para sacar el mejor provecho de este producto, léase este manual con detenimiento. Guárdelo en un lugar seguro para poder hacerle referencia en el futuro. Para reducir el riesgo de calambre, no quite la cubierta del aparato. No hay piezas utilizables dentro.
  • Page 13 1T-C2 S ERIES PERATION ANUAL 2.4 Ubicación Este aparato se debe instalar en un lugar seco y fresco, lejos de fuentes de calor excesivas, la vibración, el polvo, la humedad y el frío. 2.5 Ventilación El aparato viene provisto de ranuras y agujeros en los lados para la ventilación. Para asegurar una operación eficaz, se debe evitar la obstrucción de estos agujeros y también asegurar que el aparato se instale en una zona con adecuada ventilación.
  • Page 14 1T-C2 S ERIES PERATION ANUAL 2 WICHTIGE SICHERHEITSVORSCHRIFTEN Lesen Sie diese Bedienungsanleitung bitte sorgfältig, um Ihr Produkt optimal nützen zu können, und bewahren Sie sie zum späteren Nachschlagen an einem sicheren Ort auf. Entfernen Sie bitte keinesfalls die Abdeckung, um der Gefahr eines Stromschlags vorzubeugen.
  • Page 15 1T-C2 S ERIES PERATION ANUAL 2.3 Aufstellung Das Gerät sollte an einem kühlen, trockenen Ort aufgestellt werden, fern von übermäßiger Wärme, Vibrationen, Staub, Feuchtigkeit und Kälte. 2.5 Belüftung Seitliche Schlitze und Öffnungen sorgen für die Belüftung des Geräts. Um die ordnungsgemäße Belüftung zu gewährleisten, dürfen diese Öffnungen nicht verdeckt werden.
  • Page 16 1T-C2 S ERIES PERATION ANUAL 2 BELANGRIJKE VEILIGHEIDSINSTRUCTIES Lees deze handleiding zorgvuldig door om het beste uit uw product te halen. Bewaar het op een veilige plek voor raadpleging in de toekomst. Haal nooit het omhulsel van de eenheid af, dit om de kans op een elektrische schok te verminderen.
  • Page 17 1T-C2 S ERIES PERATION ANUAL 2.4 Plaatsing Deze eenheid moet geïnstalleerd worden op een koele droge plaats, uit de buurt van bronnen van extreme hitte, vibraties, stof, vocht en kou. 2.5 Ventilatie De sleuven en openingen aan de zijkant van de eenheid zijn voor ventilatie. Zorg er voor dat de eenheid op een goed geventileerde plek geïnstalleerd wordt zodat deze betrouwbaar werkt.

  • Page 18: Device Summary

    1T-C2 S ERIES PERATION ANUAL DEVICE SUMMARY Device Capabilities ® The 1T-C2 series uses the proprietary CORIO 2 Engine to perform its functions, ® ® being the second generation of the successful CORIO products. The CORIO technology is a powerful toolset for any application requiring high quality video signal conversion or image manipulation.

  • Page 19: Device Features

    1T-C2 S ERIES PERATION ANUAL PC/HD Scaler This unit allows computer / high-definition video scaling from one resolution to another – for example, 720p to 1080i, or VGA to XGA, etc. This unit does not have any overlay abilities. Device Features General Topography 4:4:4 RGB / YUV sampling provides full bandwidth color which allows precise keying where included in the units capabilities.

  • Page 20: Product Images

    1T-C2 S ERIES PERATION ANUAL PRODUCT IMAGES Your 1T-C2 product should look like one of the units below. Each unit has a different main function (Down Converter or Video Scaler) and a subsequently different ability to process video signals.

  • Page 21: Front Panel Controls

    1T-C2 S ERIES PERATION ANUAL FRONT PANEL CONTROLS The range of buttons on the front of the unit provides the user with quick access for selecting a variety of inputs and features. Since all the units in the 1T-C2 series are different, not all of the descriptions below will be applicable to the unit in question.

  • Page 22: Menu And Buttons

    1T-C2 S ERIES PERATION ANUAL MENU and buttons The on-screen display (OSD) is controlled from the front panel by using these buttons. MENU will activate the OSD, whilst the and arrowed keys will allow different menu items to be selected and adjusted – this is detailed in a later section. Advanced menus System Advanced menus...

  • Page 23: Switching Units Between Different Resolutions Using The Front Panel

    For example, press MENU & FREEZE together on the 1T-C2-100 to select PAL. When you are happy with the output resolution selected, press and hold the MENU button in to store the current settings.

  • Page 24: Video Inputs And Outputs

    1T-C2 S ERIES PERATION ANUAL VIDEO INPUTS AND OUTPUTS The units have different video inputs and outputs depending on your model, and with the PC/HD output being either scaled, or just as a loop-through from the PC/HD input. Computer & Video inputs The PC/HD input can accept: Analog RGBHV RGsB (sync on green)
  • Page 25 1T-C2 S ERIES PERATION ANUAL RGBS (separate sync at TTL levels) YUV/YPbPr (including tri-level). However, please note that on some units such as Down Converters, the PC/HD output is there just to loop the PC image through to the PC monitor. On Video and PC/HD Scalers, bypass mode (with the unit in Standby) will feed PC/HD input to the PC/HD output directly.

  • Page 26: Infra-Red Remote Control

    1T-C2 S ERIES PERATION ANUAL INFRA-RED REMOTE CONTROL Your unit is compatible with an optional infra-red remote control as shown below: Resets back to power-on defaults Stores current Selects input: settings 1/2/3=RGB/CV/YC Enables Keyer Enables Lock & Mix mode Fades in/out Starts AutoSet Locks the IR &...

  • Page 27: Menu Layout And Settings Adjustment

    1T-C2 S ERIES PERATION ANUAL MENU LAYOUT AND SETTINGS ADJUSTMENT From here on, we’ll be looking at the menu structure employed in the series and, more importantly, the individual menu items that allow you to take advantage of the power of the unit. You’ll be using the MENU and buttons and the on-screen display (OSD) to view the options and settings available to you.

  • Page 28: Group Names And Descriptions

    1T-C2 S ERIES PERATION ANUAL CORIO2 TV One The first is the ‘welcome’ display shown above indicating the model of the unit. www.tvone.com SW: 65. PT: 12, BT: 13 Moving to the next menu item displays the firmware information screen (the numbers on your unit will be different to those shown).
  • Page 29 1T-C2 S ERIES PERATION ANUAL This menu item allows the lock mode to be selected and the lock source to be defined. The top line of the display shows the current detected resolution of the selected lock source (RGB1 in this example). The lock mode can be either Off, Genlock or Lock &...
  • Page 30 1T-C2 S ERIES PERATION ANUAL 1024 x 768 60Hz Output res. [28] Your unit can handle a very wide array of inputs and convert them all to a single output signal with defined characteristics. This output resolution will remain in place until changed or it may be overridden by the lock mode and source.
  • Page 31 1T-C2 S ERIES PERATION ANUAL but the output is not currently scaling. encrypted. Rep. active The repeater unit (e.g. scaler) As the DVI output is HDCP encrypted, then a attached is capable of HDCP, HDCP-encrypted source can be selected for and the output from the unit is scaling.

  • Page 32: Items Associated With The Adjust Windows Group

    1T-C2 S ERIES PERATION ANUAL This menu item is only available on certain units when the Output resolution is set to PAL or NTSC. With this you can change the output filtering system to increase or decrease the image sharpness. In general, high sharpness can result in increased colour disturbance.
  • Page 33 1T-C2 S ERIES PERATION ANUAL Adjust windows Zoom level % [ 100] Changing this option, sets the amount of picture magnification you wish to use for the window Source. You are provided with the options to zoom the image from 100% to 1000% (10x zoom).
  • Page 34 1T-C2 S ERIES PERATION ANUAL Note that some units do not have the [On] entry – this is only for units with a PIP button on the front, with turns this entry On and Off. On these units, this feature is ‘Off’...

  • Page 35: Extended Scaling Controls

    1T-C2 S ERIES PERATION ANUAL Disables flicker reduction (sharpest mode). Suitable for most input sources. Med. Enough for most situations such as thin line drawings High Highest amount of flicker reduction. Will cause loss of vertical detail in some images. Adjust windows Image smoothing [Auto]...

  • Page 36: Aspect Adjust' = 'Advanced

    1T-C2 S ERIES PERATION ANUAL In ‘Pixel’ mode, the user has direct access to pixel and line-accurate scaling functions. This lets the user specify the exact co-ordinates and size of the source image (within the video source), and the position and size of where this is placed in the output video signal.

  • Page 37: Aspect Adjust' = 'Pixel

    1T-C2 S ERIES PERATION ANUAL 8.4.3 ‘Aspect adjust’ = ‘Pixel’ Adjust windows [ 300] , 150 750, 400 Adjust windows [ 50] , 250, 300 These menu items work together to specify the exact co-ordinates and size of the source image (within the video source) and the position and size of where this is placed in the output video signal –...
  • Page 38 1T-C2 S ERIES PERATION ANUAL Adjust keyers Swap fore/backgrnd [Off] This menu item is only present on single-channel scalers – dual-channel scalers have the layer priority set within the ‘Adjust Windows’ menu. This menu item allows you to swap the foreground and background images when Lock mode is set to Lock &...

  • Page 39: Items Associated With The Adjust Sources Group

    1T-C2 S ERIES PERATION ANUAL sometimes 51%. Increasing the softness value will broaden the range of keyed colors so that the keying of images varies depending on how close a color is to the keyed-out range. Adjust keyers Y Key invert [Off] The Y Key invert changes the keying characteristics with respect to what colors of the foreground image you wish to ‘key out’.

  • Page 40: Menu Items Common To All Inputs

    1T-C2 S ERIES PERATION ANUAL 8.6.1 Menu items common to all inputs Source: RGB1 Aspect correct [ Fill] This menu item will be used to correct the aspect ratio of the video source when converted into the final output resolution. The following table details what happens in the available modes: Setting Result...
  • Page 41 1T-C2 S ERIES PERATION ANUAL Source: RGB1 OPTION audio source [ 1] If an external audio switcher is connected via the OPTION bus, then this menu item selects the desired Audio input for use with the active video source, allowing an audio-follow-video function.

  • Page 42: Dvi Source Menu Items

    1T-C2 S ERIES PERATION ANUAL maximum movement within an image. Your unit provides some tools to minimize the effects of de-interlacing of an image. The following options are available for this menu item: Mode Function Normal/weave The two interlaced fields are simply combined/weaved together.
  • Page 43 1T-C2 S ERIES PERATION ANUAL If turned ‘On’, and a HDCP-compliant display or device is attached to your unit’s DVI output, then HDCP encrypted sources can be used. The following table summarizes the message given in brackets: Status Description Effect message Inactive HDCP is not active...

  • Page 44: Rgb Source Menu Items

    1T-C2 S ERIES PERATION ANUAL If you change this value, you’ll need to store your settings and then re-boot the CORIO2 unit at least once to ensure that the DVI source sees that the EDID data has changed. It should also be noted that some graphic cards will require your PC to be re- booted before they see that a change has occurred.

  • Page 45: Cv & Yc Source Menu Items

    1T-C2 S ERIES PERATION ANUAL pixel phase adjustment allows you to change the position (from 0 to 31) where the pixels are sampled, relative to the horizontal sync signal. To make this adjustment, select an RGB source and then provide an image from that source with fine detail, preferably with very sharp vertical lines.

  • Page 46: 8.6.5 Still Image Store / Testcard Source Menu Items

    1T-C2 S ERIES PERATION ANUAL Saturation is the amount of color present in the image. Hue is the color “tint” parameter and the adjustment range is +90 degrees through to -90 degrees with 0 being the default. Source: YC1 Sharpness Within limits, you can enhance or soften the appearance of detail within an image.
  • Page 47 1T-C2 S ERIES PERATION ANUAL Important Cautionary Information DO NOT ADJUST THESE ITEMS UNLESS YOU’RE CERTAIN YOU KNOW WHAT YOU’RE DOING! THE ONLY METHOD TO UNDO CERTAIN CHANGES IS TO UPDATE THE FIRMWARE. TRY USING THE AUTOSET, SHRINK, SHRINK POS, TL & BR ADJUSTMENTS FIRST.
  • Page 48 1T-C2 S ERIES PERATION ANUAL The H.freq.fine (Horizontal Sync Frequency) adjustment provides the option for changing the Horizontal Sync timing Frequency in 1 Hz steps. Use this option to fine tune after using the course adjust. Please note that the internal sync generator may be unable to generate the exact frequency you want.

  • Page 49: Items Associated With The System Group

    1T-C2 S ERIES PERATION ANUAL respect to the Horizontal Sync pulse and the width of the Back Porch have a direct bearing on where the active (visible) portion of the image begins. Do not attempt this adjustment without monitoring the results with an oscilloscope. 800 x 600 60 Hz H/V Sync [ 128] x 4...
  • Page 50 1T-C2 S ERIES PERATION ANUAL The first section, “SW”, is the version of the software that is installed on your unit. You can update software via the User Support web site (procedure to be described later in this manual) and the updates are currently free of charge. “PT” refers to Product Type and “BT”...
  • Page 51 1T-C2 S ERIES PERATION ANUAL of the screen edge between Low, Medium, High and V.high. Medium is the default level, which is recommended for normal use (Windows-type images, etc.) System OSD on power up [On] This parameter controls whether the ‘welcome’ screen is displayed or not on power up for units with an on-screen display –...
  • Page 52 1T-C2 S ERIES PERATION ANUAL System Logos / T-cards If your units supports Logos or Still Images / Testcards then this screen will display how many are present in the memory of the units. System Power cycles Power Cycles refers to how many times the unit has been powered since it left the factory.
  • Page 53 1T-C2 S ERIES PERATION ANUAL...

  • Page 54: Rs232 Port

    1T-C2 S ERIES PERATION ANUAL RS232 PORT Connection Your unit is fitted with a standard ‘D9’ plug or socket allowing it to be controlled from a computer or other type of terminal or console with a similar interface. Most computers fitted with an RS232 port, known as a ‘COM’ port, will have a ‘D9’ plug on them.

  • Page 55: Rs232 / Ip Control Specification

    1T-C2 S ERIES PERATION ANUAL RS232 / IP CONTROL SPECIFICATION PLEASE NOTE: Not all units support RS232 and/or IP (Ethernet) communications – check to see if this feature is present on your unit. This section outlines how to control a unit via an RS232 or Ethernet link (if fitted to your unit), using ASCII-based commands.

  • Page 56: Packet Format

    1T-C2 S ERIES PERATION ANUAL The ACK flag will be returned as 0 if the command is invalid for some reason – for example a bad FUNCTION, WINDOW, OUTPUT or PAYLOAD value. An ACK=0 message will be otherwise identical to the one you sent, so you know exactly which message has the error.
  • Page 57 1T-C2 S ERIES PERATION ANUAL returned means message was okay. ACK=0 returned means an error was present in the message. Bit 5 = 0 Reserved for future use. Bit 4 = 0 Reserved for future use. Bit 3 = 0 Reserved for future use. Bit 2 = 1 This bit *must* be set.

  • Page 58: Function List

    1T-C2 S ERIES PERATION ANUAL ASCII-hex byte that is the (check) sum of all previous bytes (excluding the SOP 'F' character). E.g. The command F0400410082000001C8 has the checksum of 04+00+41+00+82+00+00+01=C8, so the complete command to send is F0400410082000001C8. A short-cut for debugging allows the checksum to be replaced by 2 question marks, so in the previous example you could send F0400410082000001?? Instead.
  • Page 59 1T-C2 S ERIES PERATION ANUAL Adjust outputs Output enable 0=Blanked, 1=Active Lock source (connector) 0x10 to 0x1F = RGB1 to RGB16 0x30 to 0x3F = CV1 to CV16 0x40 to 0x4F = YC1 to YC16 0x50 to 0x5F = SDI1 to SDI16 0xD0 = OUT1, 0xD1 = OUT2 0xF0 = TC1, 0xF1 = TC2 Lock method...
  • Page 60 1T-C2 S ERIES PERATION ANUAL 3 = 14:9 Letterbox top 4 = 16:9 Letterbox centre 5 = 16:9 Letterbox top 6 = >16:9 Letterbox centre 7 = 14:9 Full format 8 = 16:9 Full format Take 0->1 = Perform a Preview -> Program transition Audio amp.
  • Page 61 1T-C2 S ERIES PERATION ANUAL In (top-left H) In (top-left V) In (H size) In (V size) Out (top-left H) Out (top-left V) Out (H size) Out (V size) Aspect change 0..2 = Normal, Letterbox, Pillarbox Aspect adjust 0..1 = Simple, Advanced Flicker reduction 0..3 = Off, Low, Med, High Image smoothing...
  • Page 62 1T-C2 S ERIES PERATION ANUAL E.blnd gamma H 1..150 1=0.01, 150=1.50 E.blnd gamma V 1..150 1=0.01, 150=1.50 E.blnd comp cent 0..99 E.blnd comp side 0..99 Logos (on certain models only) Logo enable 0..1 = Off, On Logo number 0..9 Logo selection H/V out shift (H) 0..100 % H/V out shift (V)
  • Page 63 1T-C2 S ERIES PERATION ANUAL Audio vol 10..FF 0CF -16..15 (-16=Mute) 10..FF 0D1 -15..15 On source loss 10..5F 0A3 0=Show, 1=Freeze, 2=Blue, 3=Black, (was Deglitch) 4=Remove Source stable (read only) 0=Unstable, 1=Stable Input pixel phase 10..5F 091 0..31 RGB input type 10..1F 0C1 0 = Auto 1 = D-RGB...
  • Page 64 1T-C2 S ERIES PERATION ANUAL Switching fade time 0 (off) to 50 (5.0 seconds) Wipe type 0 = Left -> Right 1 = Right -> Left 2 = Up -> Down 3 = Down -> Up 4 = Diagonal 5 = Diamond Wipe Size 10..2000 Audio Control (S2-106AD Only)

  • Page 65: Examples

    1T-C2 S ERIES PERATION ANUAL Resolutions Read only Number of Still Images / Read only Testcards Number of logos Read only Board temp. (deg.C) Read only Air temp. (deg.C) Read only Regulators temp.(deg.C) Read only PLD temp. (deg.C) Read only Fan speed (rpm) Read only Led brightness...

  • Page 66: Reading And Writing Macros

    1T-C2 S ERIES PERATION ANUAL ?? CR 000064 70 CR Set baud to 9600 Reply is at 9600 baud 000000 F0 CR 000000 30 CR Set 1A Zoom = 300 00012C F7 CR 00012C 37 CR Set 1A Shrink to 50 000032 FE CR 000032 3E CR Set 1A Shrink H Posn to 0...

  • Page 67: Writing To A Macro

    1T-C2 S ERIES PERATION ANUAL Read number of items currently stored in Preset 2 Returned packet indicates 4 items available to read BB CR 00002 FC CR Read the Function for the first item in the preset / Payload is the Function stored – 86 = Zoom macro BA CR 000086 ?80 CR...
  • Page 68 1T-C2 S ERIES PERATION ANUAL SOP CMD CHA WIN OUT FUN PAY CS EOP SOP CMD CHA WIN OUT FUN PAY CS EOP Restore 000000 3C CR 0000 00 7C CR Run macro 1 000000 37 CR 0000 00 77 CR Run macro 2 000000 38 CR 0000 00 78 CR...

  • Page 69: Common Operations

    1T-C2 S ERIES PERATION ANUAL COMMON OPERATIONS This section provides step by step instructions for some common operations. 11.1 Operation of the Keyer Some units come equipped with a very powerful Luminance and Chrominance Keyer. The Keyer can take some time to master and below is a breakdown and series of simple steps to help you master the Keyer’s operation When adjusting the values, please bear in the mind the following: The Y value is the Luminance value, so 0 is black and 255 is very bright (white).
  • Page 70 1T-C2 S ERIES PERATION ANUAL to decrease the ‘min’ values and increase the ‘max’ values to broaden the range of colors keyed out. At this point, only the key color should remain transparent.

  • Page 71: Troubleshooting And Technical Support

    1T-C2 S ERIES PERATION ANUAL TROUBLESHOOTING AND TECHNICAL SUPPORT If problems are experienced, please read through the symptom topics below in order to resolve the problem. After doing so, if you still need to, contact Technical Support at http://www.tvone.com/support. Please have the following details of the problem handy: Whether the problem happens only at specific times or has only just started occurring (and what other things have changed at the same time).

  • Page 72: There Is Excessive Flicker On The Output

    1T-C2 S ERIES PERATION ANUAL 12.4 There is excessive flicker on the Output. Try using a different Flicker reduction mode. Turning the contrast down and the brightness up on the output device can have a large effect on flicker. Or try adjusting the brightness and contrast of the source input by selecting the Input adjust menu.

  • Page 73: The Rgb Input Is Selected But The Image Is Rolling Or Pink

    1T-C2 S ERIES PERATION ANUAL 12.11 The RGB input is selected but the image is rolling or pink. Check the Adjust sources menu and confirm that the input type and sync method is set correctly. (Having YUV input selected, instead of RGBHV often causes this problem).

  • Page 74: Return Procedure

    13.2 To return a unit for repair First contact TV One using the http://www.tvone.com/support website. Support personnel will determine whether a return to the factory is the appropriate solution. If that’s the case, a Return Authorization Number will be issued. You should...
  • Page 75 1T-C2 S ERIES PERATION ANUAL Please clearly state the return number on the outside packaging and on any accompanying documentation. This will greatly speed up processing. IMPORTANT: DO NOT return a unit for warranty repair without first obtaining a Return Authorization Number. No action will be taken on a unit returned in warranty for repair without a Return Authorization Number.

  • Page 76: Warranty Policy

    Should this product, in TV One’s opinion, prove defective within this warranty period, TV One, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of TV One. This...

  • Page 77: Connector Pinouts

    1T-C2 S ERIES PERATION ANUAL CONNECTOR PINOUTS 15.1 HD15 connector 1. Red / Pr / R-Y 2. Green / Y 3. Blue / Pb / B-Y 4. ID2 (input & output linked) 5. GND 6. GND 7. GND 8. GND 9.

  • Page 78: Specifications

    1T-C2 S ERIES PERATION ANUAL SPECIFICATIONS See product front and rear diagrams for details of product I/O. Not all units in the series have all the inputs and outputs listed here. 16.1 Video Inputs Input impedance: 75 Ohm Television standards supported: NTSC and PAL Composite video via BNC S-Video (YC) via 4-Pin mini-DIN Connector CV/YC video decoder: 8-bit Digital...

  • Page 79: Locking/Mixing

    1T-C2 S ERIES PERATION ANUAL PC Resolutions: any up to 2048x2048 (user adjustable) HDTV Resolutions: any up to 1080p Vertical Refresh Rate: any to 250Hz 16.5 Locking/Mixing CV/YC SC/H phase adjustments: +/- 180 degrees (for units with CV/YC output only) Keyer: chromakey (YUV) or lumakey (Y) Mixer: PC / Video, foreground/background swappable PIP: variable window size &...

  • Page 80: Power Requirement

    1T-C2 S ERIES PERATION ANUAL 16.10 Power Requirement External power supply: 12V DC @1A maximum. Actual current consumption varies between units. Internal over-voltage & over-current protection. Full PSU specification: 12v DC regulated 1Amp PSU with a 2.5mm locking center- pin positive DC power connector. A non-locking 2.5mm DC power connector will also fit.

  • Page 81: Contact Information

    PERATION ANUAL CONTACT INFORMATION Should you have and questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location shown below: TV One USA TV One Europe 2791 Circleport Drive...
