TV One 1T-C2-100 Specifications

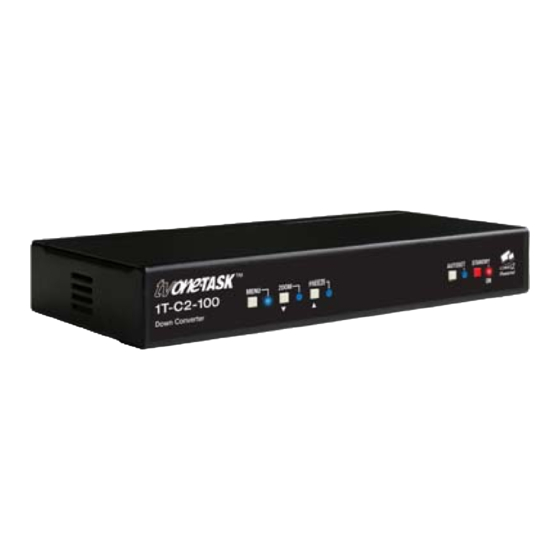

1T-C2-100 Down Converter
exclusive CORIO2™ technology and provides high
quality scan conversion from Computer or HDTV signals
to standard video formats in a compact package. It
handles any computer resolution up to 2048x2048 at any
vertical refresh rate and all HDTV resolutions up to
1080p. In order to deal with PC, Mac and most
Computer Workstation signals, a wide variety of
computer signal formats can be accommodated. Video
outputs are switchable between NTSC and PAL and are
simultaneously provided in Composite and S-Video. A
PC loop-thru is also provided.
Our exclusive AutoSet® feature takes the hassle out of
setup by automatically sizing and positioning the
computer image to fit exactly on the video screen. All
settings are stored in non-volatile memory and are
retained even when power is switched off. All the
functions can be controlled via the front panel Push
Buttons, an Infrared Control Remote Unit or via an RS-
232 connection. A Windows Control Panel is provided
and most third party control systems interface directly
with the entire C2 range of products. An On-Screen
Display is available to assist in setup.
Variable Zoom to 10X allows you to enlarge any part of
the computer screen to fill the entire video screen and
position controls allow you to move around to any area
desired. Variable Shrink to as little as 10% allows fitting
the image onto most displays. The advanced Digital
Flicker Elimination circuitry and high sampling rate
insures crisp, clear images, while full bandwidth chroma
sampling insures faithfully reproduced, high resolution
colors. The 1T-C2-100 is housed in a compact desktop
case and a single/dual rackmount kit is available as an
option.
1T-C2-150 Down Converter PLUS
and features of the 1T-C2-100 and adds a wide variety
of additional capabilities, such as Genlock, Chromakey
and Lumakey. The Key Mode allows computer graphics
to be keyed over an external Composite or S-Video
signal. The keyed image may be faded in and out. Due
to the 4:4:4 sampling format, precise keying at the pixel
level can be achieved. The Mix Mode permits glitch-free
mixing between the computer image and external video.
The PIP Mode allows the computer input to be inset in a
window over either of the video inputs.
The Genlock feature insures precise synchronization of
the incoming signals by providing a wide Subcarrier lock
range with Subcarrier phase adjustment.
.
www.tvone.com •
is based on TV One's
has all the functions
•
www.tvone.co.uk www.tvonela.com
Down Converters
Models 1T-C2-100, 1T-C2-150
Key Features of the 1T-C2-100
•
Automatic incoming resolution detection
•
Computer Input via HD-15 with Loop-thru
•
Computer Resolutions to 2048x2048
•
HDTV Resolutions to 1080p
•
AutoSet® - Automatic picture sizing
•
Multiple Worldwide Television Standards
•
2x Composite and 2x S-Video Outputs
•
RS-232 Interface and Windows Control Panel
•
IR Remote Control
•
Variable Image Zoom to 10X and Shrink to 10%
•
Optional Single/Dual Rackmount Kit
Additional Features of the 1T-C2-150
•
Genlock with Subcarrier Phase Adjustment
•
Chromakey and Lumakey
•
Mix and PIP
•
Composite and S-Video Input
This symbol on a product indicates that it is
powered by CORIO2™ technology, the most
flexible video processing engine now available.
Unlike most manufacturers, who use third party chipsets
to provide video conversion, TV One has developed its
own proprietary technology known as CORIO2™. This
frees TV One products from the constraints imposed by
third parties and results in an unsurpassed degree of
flexibility. Products based on third party chipsets have a
feature set frozen at the introduction of the product.
Since the CORIO2™ video processing engine is entirely
firmware based, it can be upgraded at any time by
downloading the latest firmware version form the support
website and flash upgrading the unit in the field. This
enables new features to be added to units many years
after the initial purchase. This "obsolescence insurance"
means that a CORIO2™ based product can always be
upgraded to the latest version of that model.
•
