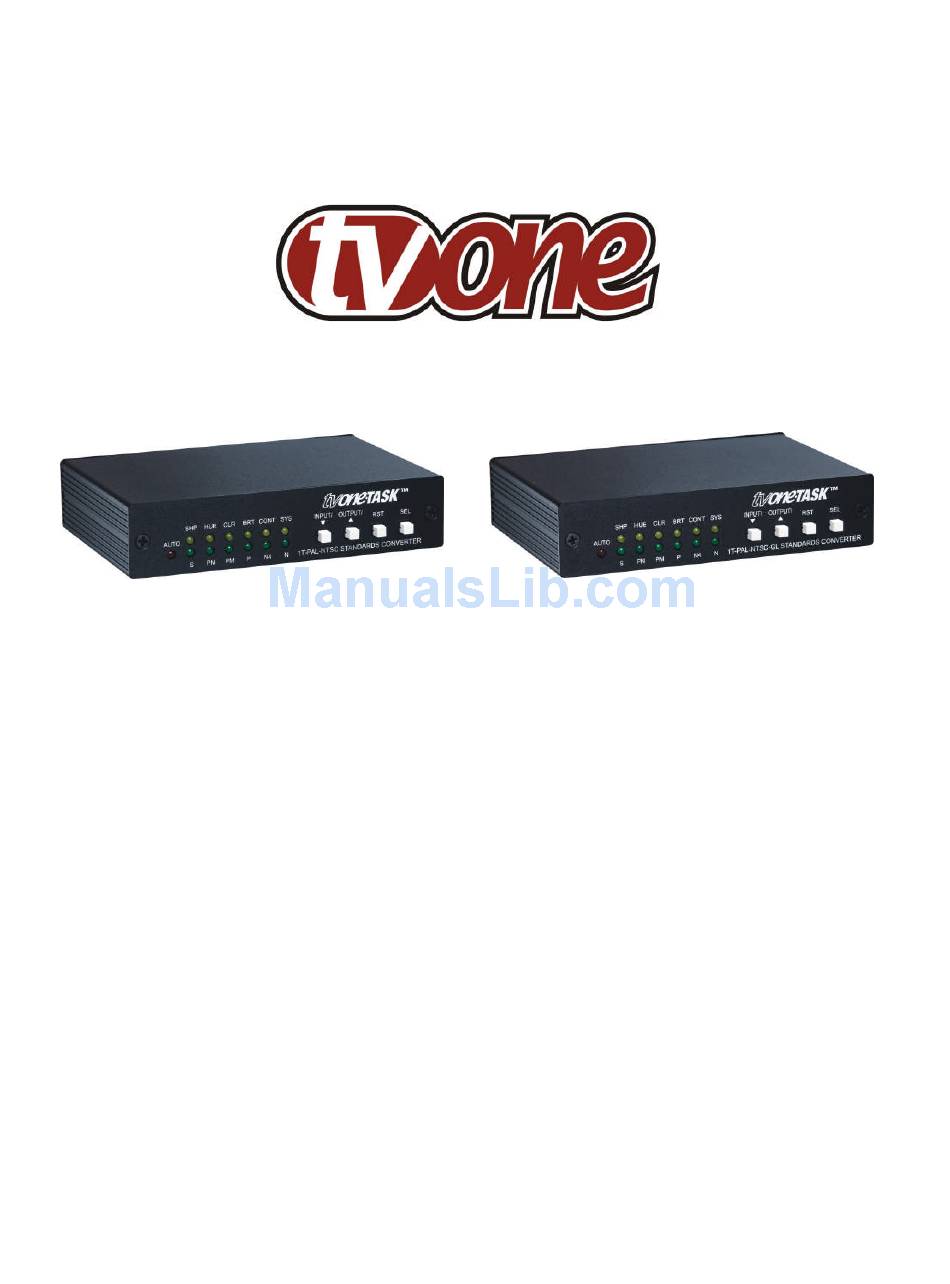

- Page 1 Operation Manual 1T-PAL-NTSC and 1T-PAL-NTSC-GL Standards Converters...
-
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction

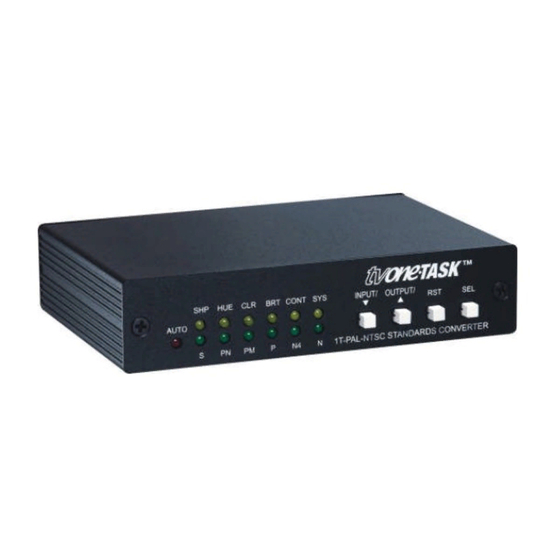

INTRODUCTION Thanks for purchasing this One-Task 1T-PAL-NTSC or 1T-PAL-NTSC-GL Standards Converter from TV One. The 1T-PAL-NTSC series of Standards Converters are designed to convert any of the widely used world television standard signals to any other widely used television standard plus perform frame synchronization and time base corrections to these signals as required. -
Page 5: Specifications
Video Inputs/Outputs Composite Video 1x via BNC Connector YC (S-Video) 1x via 4-PIN Mini-DIN Connector Genlock via BNC (1T-PAL-NTSC-GL Only) Genlock Loop-thru with 75 Ÿ 7H U P L QD W L R Q6 ZL W FK Video Specifications Impedance 75... -
Page 6: Checking Package Contents
CHECKING PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton: 1x Standards Converter 1x AC to 12 VDC Power Adapter 1x Operations Manual Note: Please retain the original packing material should the need ever arise to return the unit. -
Page 7: Operating The Unit
OPERATING THE UNIT The 1T-PAL-NTSC and 1T-PAL-NTSC-GL Standards Converters are identical with the exception of a genlock provision in the 1T-PAL-NTSC-GL version. (A discussion of the genlock capability is contained in section 5.7 below). The 1T-PAL-NTSC and 1T-PAL-NTSC-GL are operated via selection buttons referenced to indicator LEDs. - Page 8 Pressing the Reset Button while you have one of the adjustment parameters selected will cause the 1T-PAL-NTSC-GL or 1T-PAL-NTSC to revert to the default setting for that parameter. If you press and hold the Reset button for more than 3 seconds, ALL...
-
Page 9: Troubleshooting
1T-PAL-NTSC-GL to another thereby providing multiple timed video sources if needed. If you only intend to use a single 1T-PAL-NTSC-GL, set the switch on the back on the unit marked TERM 75to the ‘On’ position. This will ensure that the impedance of the genlock source is properly terminated. -
Page 10: Limited Warranty
REGULATORY COMPLIANCE The 1T-PAL-NTSC and 1T-PAL-NTSC-GL have been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supplies have been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations... -
Page 11: Contact Information
CONTACT INFORMATION Should you have questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location. TV One USA TV One Europe 2791 Circleport Drive Continental Approach Erlanger, KY 41018 Westwood Industrial Estate Margate, Kent CT9 4JG, UK Tel 859-282-7303...
