3301 E. Deseret Drive
St. George, Utah 84790
wilsonelectronics.com
tech@wilsonelectronics.com
Phone 1-866-294-1660
Fax 1-435-656-2432

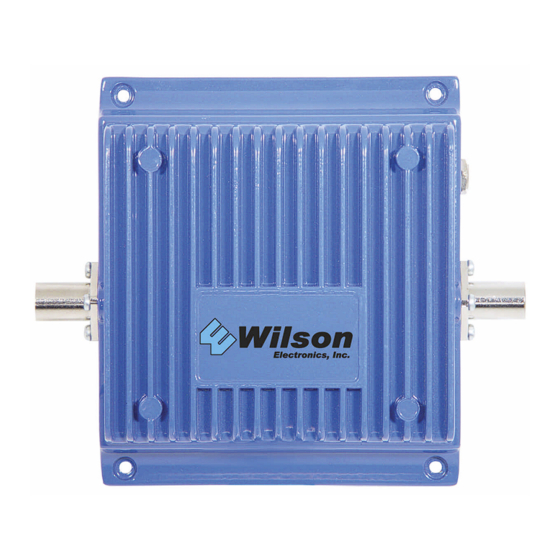

BD800AM-M Bi-Directional
Amplifier/Repeater for AMPS
In Vehicle
Installation Guide
The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However, no responsibility is assumed by Wilson
Electronics, Inc. for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result
from its use.
FCC ID: PWOBD800AM
Copyright © 2002 Wilson Electronics, Inc.
MODEL: BD800AM-M
Rev 1
PART#:
801101
Advertisement
Related Manuals for Wilson Electronics BD800AM-M
Summary of Contents for Wilson Electronics BD800AM-M
-
Page 1: Installation Guide
Installation Guide The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However, no responsibility is assumed by Wilson Electronics, Inc. for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use. -
Page 2: Table Of Contents
TABLE OF CONTENTS 1. PACKAGE CONTENTS.……………………………….………page 3 2. ANTENNA OPTIONS... …………………………page 3 ……………… 3. PURPOSE OF THE BD800AM-M…………… …...……page 4 ……… 4. HOW THE BD800AM-M FUNCTIONS………… ……page 4 ……..… 5. FEATURES……………………………………………….…..…page 4 6. AMPLIFIER SPECIFICATIONS……………………………… page 4 7. AMPLIFIER/REPEATER INSTALLATION……………... page 5 & 6 8. - Page 3 Rev 1 PAGE...
-
Page 4: Purpose Of The Bd800Am-M
Advanced Electronics Receive & Transmit Better Than Your Cellphone The Wilson Cellular Amplifier / Repeater has a better receiver than what's in your cellphone. Its advanced electronics are very sensitive and able to receive small signals that would go undetected by most cellphones. It also has a better transmitter with double the power of your cellphone. -
Page 5: Amplifier/Repeater Installation
5. AMPLIFIER/REPEATER INSTALLATION (REFER TO ILLUSTRATION) BD800AM-M Amplifier/Repeater ILLUSTRATION 5.1 Mounting the Amplifier/Repeater 5.1.1 Mount the AMPLIFIER/REPEATER under the dash or car seat. NOTE: The amplifier should be mounted to the selected location using mounting screws. (Mounting screws not included.) 5.2 Installing the Outside Antenna (Sold Separately) -
Page 6: Tech Support
5.3 Installing the Inside Antenna (Included) 5.3.1 Connect the Inside Antenna to the side labeled “INSIDE ANTENNA” on the AMPLIFIER/REPEATER. 5.3.2 The Inside Antenna should be centered in the vehicle. It can be placed in the seat back between the seat cushion and fabric or in the vehicle headliner.
