Ss2 - series dual satellite coffee brewers with electro-mechanical control and externally heated satellite servers

Advertisement

Quick Links

671EX
BLOOMFIELD INDUSTRIES
10 Sunnen Drive
St. Louis, MO 63143
telephone: 314-678-6336
fax: 314-781-2714
www.wellsbloomfield.com
OWNERS MANUAL
for
SS2 - SERIES
DUAL SATELLITE
COFFEE BREWERS
with
ELECTRO-MECHANICAL
CONTROL
and
EXTERNALLY HEATED
SATELLITE SERVERS
MODEL:
9221EX
Includes:
Installation
Operation
Use & Care
Servicing Instructions

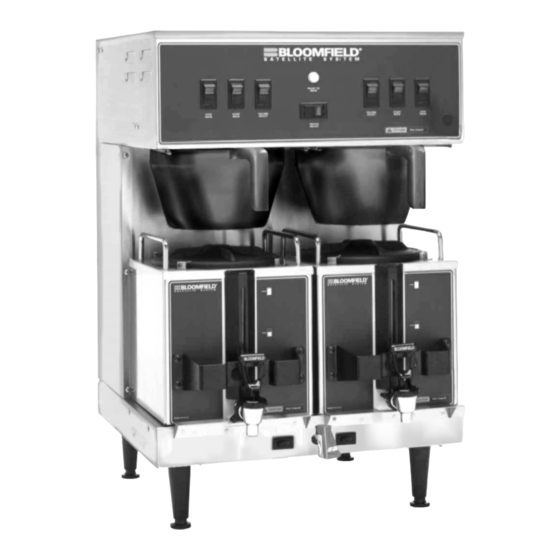

Model 9221EX Dual Satellite Brewer
76624
12
p/n 2M-
Rev. C
M671EX
0813

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9221EX and is the answer not in the manual?

Questions and answers

Summary of Contents for Bloomfield 9221EX

  • Page 1 314-781-2714 www.wellsbloomfield.com OWNERS MANUAL SS2 - SERIES DUAL SATELLITE COFFEE BREWERS with ELECTRO-MECHANICAL CONTROL EXTERNALLY HEATED SATELLITE SERVERS MODEL: 9221EX Includes: Installation Operation Use & Care Servicing Instructions Model 9221EX Dual Satellite Brewer 76624 p/n 2M- Rev. C M671EX 0813...
  • Page 2: Warranty Statement

    BLOOMFIELD, LLC is warranted against defects in materials removed or unauthorized service personnel perform service. The prices charged by Bloomfield Industries for its products and workmanship for a period of one year from the date of original installation or eighteen (18) months from the date of are based upon the limitations in this warranty.
  • Page 3: Specifications

    TABLE OF CONTENTS Thank You for purchasing this Bloomfield Industries appliance. WARRANTY STATEMENT SPECIFICATIONS Proper installation, professional FEATURES & OPERATING CONTROLS operation and consistent PRECAUTIONS & GENERAL INFORMATION maintenance of this appliance will AGENCY APPROVAL INFORMATION ensure that it gives you the very...
  • Page 4: Features And Operating Controls

    FEATURES AND OPERATING CONTROLS BREW HEAD BREWER (brew chamber removed) Model 9221EX BYPASS NOZZLE BREW HEAD SPOUT CONTROL INSERT PANEL BREW GASKET (see below) CHAMBER (IN POSITION) SPRAY DISK FUSE (BEHIND FRONT PANEL) SATELLITE (IN POSITION) BREWER NAMEPLATE BYPASS POWER...
  • Page 5 FEATURES AND OPERATING CONTROLS (continued) Brewer Adjustable Legs Allows brewer to be leveled. Also allow clearance for cleaning underneath brewer. Brewing Controls Start or stop brew and select brew volume. Right and left section are independent. Bypass Nozzle Dilution water flows into brew chamber channel from here. Dilution water DOES NOT flow through the coffee grounds.
  • Page 6: General Information And Precautions

    GENERAL INFORMATION AND PRECAUTIONS WARNING: This appliance is intended for use in commercial establishments only. Electric This appliance is intended to brew hot beverage, specifically coffee, Shock hazard for human consumption. No other use is recommended or authorized by the manufacturer or its agents. All servicing requiring access to non-insulated Operators of this appliance must be familiar with the appliance use,...
  • Page 7: Installation Instructions

    Plumbing FRAME installer must supply the regulator. Brewer must be connected to a potable water supply. Bloomfield ADJUST recommends not less than 1/4” (6 mm) inside diameter copper tubing for installations of 12’ (4 meters) or less, and not less than HEIGHT 3/8”...
  • Page 8: Wiring Connections

    INSTALLATION INSTRUCTIONS (continued) EUROPEAN ELECTRICAL INSTALLATION INSTRUCTIONS IMPORTANT ! These installation instructions IMPORTANT ! are prepared for personnel Make sure the incoming voltage is the same voltage, authorized, qualified, certified frequency and phase as specified on the appliance or licensed to install electrical nameplate.
  • Page 9: Final Checks

    INSTALLATION INSTRUCTIONS (continued) IMPORTANT: INITIAL SET-UP INSTRUCTIONS Initial set-up must be performed Plumber’s and Electrician’s installation procedures must be by a qualified installer or completed before proceeding with the set-up. qualified service technician. Be sure all electrical connections are secure, and that all Improper set-up will damage the plumbing connections are secure and leak-proof.
  • Page 10: Getting Started

    OPERATING INSTRUCTIONS IL2517 Fig. 3 Control Panel GETTING STARTED Check the brewer and satellites: Check that the brewer is clean and the drip tray (if used) is empty. Check that the satellites are empty and clean with lids properly installed. Check the spray heads: Remove the brew chambers.
  • Page 11: Brewing Coffee

    Prepare the Brew Baskets: Make sure a bypass diverter is properly installed in each brew chamber. Insert one (1) Bloomfield paper filter into each brew chamber. Fig. 5 Brew Basket Add a measured amount of grounds to each brew basket.
  • Page 12: Cleaning Instructions

    CLEANING INSTRUCTIONS CLEANING INSTRUCTIONS PROCEDURE: Clean Coffee Brewer CAUTION: Burn Hazard PRECAUTIONS: Press POWER key to OFF. Allow brewer to cool. Brewing and serving FREQUENCY: Daily temperatures of coffee are extremely hot. TOOLS: Mild Detergent, Clean Soft Cloth or Sponge Hot coffee will cause serious Bristle Brush skin burns.
  • Page 13 CLEANING INSTRUCTIONS (continued) CAUTION: PROCEDURE: Clean Satellite Burn Hazard PRECAUTIONS: Drain Satellite before Cleaning Brewing and serving temperatures of coffee are FREQUENCY: Twice Weekly extremely hot. Hot coffee will cause serious TOOLS: Sight Glass Brush, Sanitizer skin burns. Soft Clean Cloth, Bucket IMPORTANT: DO NOT submerge satellite in 1.
  • Page 14: Servicing Instructions

    SERVICING INSTRUCTIONS PROCEDURE: Delime the Water Tank CAUTION - CHEMICAL BURN PRECAUTIONS: Disconnect brewer from electric power. HAzARD Allow brewer to cool. Deliming chemicals are caustic. Wear appropriate protective FREQUENCY: As required (Brewer slow to heat) gloves and goggles during this procedure.
  • Page 15 Should deliming hoses hold-down clamps. become necessary, Bloomfield recommends replacing the 11. Remove spray disks and gaskets. Rinse both brew hoses. heads with clean water. Using a stiff brush, scrub spray disk to remove any lime or calcium build-up.
  • Page 16: Timer Adjustment

    SERVICING INSTRUCTIONS (continued) TIMER ADJUSTMENT CAUTION: SHOCK HAZARD PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. Disconnect brewer from electric power before opening the FREQUENCY: As required to adjust delivered volume access panel. TOOLS: Phillips head screwdriver Satellite or other container to calibrate volume Adjustments to be performed by qualified technician only.
  • Page 17: Temperature Adjustment

    SERVICING INSTRUCTIONS (continued) TEMPERATURE ADJUSTMENT CAUTION: SHOCK HAZARD PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. Live electrical circuits are exposed during this procedure. FREQUENCY: As required to adjust delivered volume Use care to avoid uninsulated electrical connectors. TOOLS: Phillips head screwdriver Satellite or other container to calibrate volume...
  • Page 18: Satellite Exploded View & Parts List

    Replace inlet valve Brew valve damaged Replace brew valve Tank water boiling Adjust or replace thermostat Use one genuine Bloomfield paper filter Too many paper filters or wrong filter used. per brew Chamber discharge hole plugged Clean brew chamber Brew chamber overflows...
  • Page 19 SATELLITE EXPLODED VIEW & PARTS LIST SATELLITE MODEL 9440 4.4 4.5 PART OF ITEM 4 4 PL 2 PL P/N: BLSRLH 74337 Rev. D 02/12/04 IL1855a SATELLITE ASSEMBLY 9440 Fig No Part No Quantity. Description D7-76657 WELDMENT SATELLITE ASSY 2L-73863 TANK LID ASSY, SRL-DP 2R-74313 HANDLE FAUCET GUARD...
  • Page 20: Exploded View

    EXPLODED VIEW CABINET AND EXTERIOR COMPONENTS 2 PL OPTIONAL 4 PL 4 PL 2 PL EXPLODED VIEW (Part 1) MODEL: 9221EX IL2520, Rev. -, 8/10/12...
  • Page 21 PARTS LIST CABINET AND EXTERIOR COMPONENTS Model: 9221EX Cabinet & Exterior Components Model: 9221EX Cabinet & Exterior Components Fig No Part No Description Fig No Part No Description 2K-71012 STRAIN RELIEF LIQUID TIGH D7-76652 CHAMBER BREW ASSY 2C-35485 NUT 1/4-20 HEX FINISHED S...
  • Page 22: Interior Components

    EXPLODED VIEW INTERIOR COMPONENTS (TO SOLENOID) EXPLODED VIEW (Part 2) MODEL: 9221EX IL2521, Rev. -, 8/10/12...
  • Page 23 PARTS LIST INTERIOR COMPONENTS Model: 9221EX Interior Components Model: 9221EX Interior Components Fig No Part No. Description Fig No Part No. Description D7-73778 RETAINING CLIP TANK LID D7-73881 BLANKING PLATE TANK HEATE 2C-73457 NUT 8-32 HEX HEAD KEPS MS D7-76643 BRKT TERMINAL BLOCK TOP T...
  • Page 24: Wiring Diagram

    WIRING DIAGRAM...
  • Page 25: Water Flow Diagram

    WATER FLOW DIAGRAM WATER FLOW WATER LEVEL PROBE VENT (TO BREW HEAD) BREW VALVE BREW ELBOW BYPASS NOZZLE BREW HEAD WATER TANK INLET VALVE HOT WATER BREW FAUCET CHAMBER W/BYPASS CHANNEL COLD WATER HOT WATER IL2522 The 9221-Series of INLET brewers have two The INLET VALVE is controlled by a signal from the CONTROL independent brewing...
  • Page 26 NOTES...
  • Page 27 NOTES...
  • Page 28 10 Sunnen Drive, St. Louis, MO 63143 telephone: 314-678-6336 fax: 314-781-2714 www.wellsbloomfield.com...
