Bloomfield 9102A Owner's Manual

Satellite coffee brewer with electro-mechanical control and externally heated satellite server

Advertisement

Quick Links

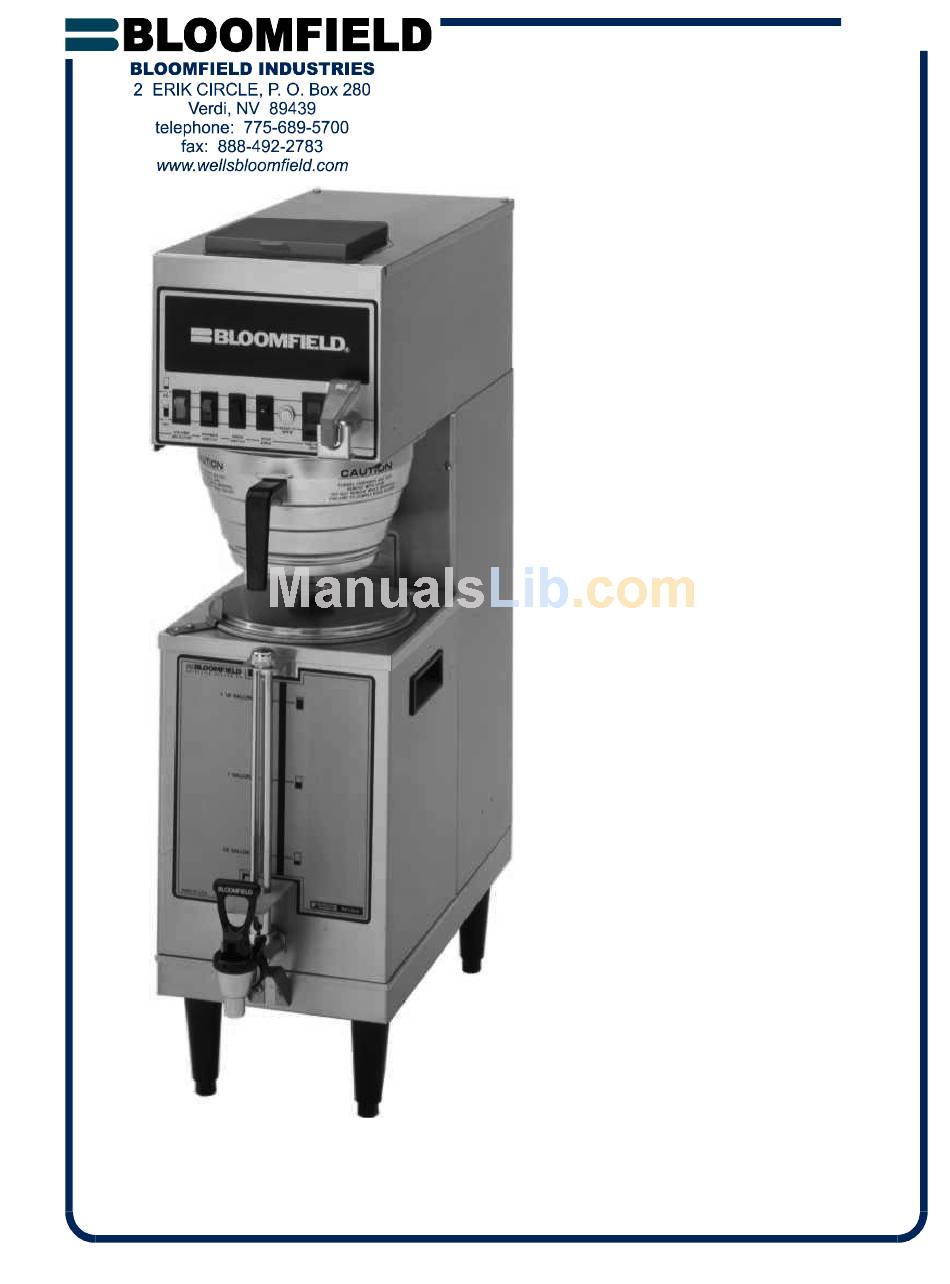

Model 9102A Satellite Brewer with 9105SS Satellite
76061
p/n
Rev. B ECN-12868
PRINTED IN UNITED STATES OF AMERICA
OWNERS MANUAL
for
SATELLITE
COFFEE BREWER
with
ELECTRO-MECHANICAL
CONTROL
and
EXTERNALLY HEATED
SATELLITE SERVER
MODEL:
9102A
9104A
Includes:
Installation
Operation
Use & Care
Servicing Instructions
M663
663
05
0616 cps

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9102A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bloomfield 9102A

  • Page 1 Model 9102A Satellite Brewer with 9105SS Satellite 76061 Rev. B ECN-12868 PRINTED IN UNITED STATES OF AMERICA OWNERS MANUAL SATELLITE COFFEE BREWER with ELECTRO-MECHANICAL CONTROL EXTERNALLY HEATED SATELLITE SERVER MODEL: 9102A 9104A Includes: Installation Operation Use & Care Servicing Instructions...
  • Page 2: Warranty Statement

    It also does not apply if the serial nameplate has been removed or unauthorized service personnel perform service. The prices charged by Bloomfield Industries for its products are based upon the limitations in this warranty. obligation under this warranty is limited to the repair of defects without charge by a Bloomfield Industries Authorized Service Agency or one of its sub-agencies.
  • Page 3: Table Of Contents

    VOLTS 9102A 120 VAC 1ø 9104A 115/230 VAC 1ø Thank You for purchasing this Bloomfield Industries appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life.
  • Page 4: Features And Operating Controls

    FEATURES AND OPERATING CONTROLS Fig 1. SS-1 Satellite Brewing System Features & Operating Controls...
  • Page 5 Press to cancel a brew in progress. Energizes satellite warmer. Applies power to tank heater element. Glows when ON. Allows selection of 1/2 gallon or 1 gallon brew (9102A); or, 1 gallon or 1-1/2 gallon brew (9104A). Holds coffee grounds during brew cycle.
  • Page 6: General Information And Precautions

    GENERAL INFORMATION AND PRECAUTIONS WARNING: Electric Shock hazard All servicing requiring access to non-insulated electrical components must be performed by a factory authorized technician. DO NOT open any access panel which requires the use of tools. Failure to follow this warning can result in severe electrical shock.
  • Page 7: Installation

    Plumbing installer must supply the regulator. Brewer must be connected to a potable water supply. Bloomfield recommends not less than 1/4” copper tubing for installations of 12’ or less, and not less than 3/8” copper tubing for installations exceeding 12’.
  • Page 8: Operation

    NOT covered by warranty. ELECTRICIAN’S INSTALLATION INSTRUCTIONS Refer to Electrical Specifications, page 1. Brewer requires a dedicated single-phase circuit: Model 9102A 120 Volt AC, 50/60 Hz 1ø 20 Amps NEMA 5-15R receptacle Model 9104A 120/240 Volt AC, 50/60 Hz 1ø 30 Amps 3-Wire (L1, L2, Neutral) + Ground Fig.
  • Page 9 Make sure the wire rack is properly installed in the brew chamber. Insert one (1) Bloomfield paper filter into the brew chamber. Make sure the filter is properly supported by the wire rack. Add a measured amount of grounds to the brew basket.
  • Page 10 This brewer is a standard displacement brewer with pour-over option. controlled by the TIMER For 9102A there is no bypass. Water admitted into the hot water tank in response to the by the BREW SOLENOID will displace a like amount of heated water position of the VOLUME through the brew head, brew chamber and into the satellite.
  • Page 11: Cleaning Instructions

    CLEANING INSTRUCTIONS PROCEDURE: Clean Coffee Brewer PRECAUTIONS: Turn POWER SWITCH OFF. Allow brewer to cool. FREQUENCY: Daily TOOLS: Mild Detergent, Clean Soft Cloth or Sponge Bristle Brush 1. Turn POWER SWITCH OFF. Allow brewer to cool. 2. Remove satellite. 3. Remove and empty brew chamber. 4.
  • Page 12 CLEANING INSTRUCTIONS (continued) CAUTION: Burn Hazard Brewing and serving temperatures of coffee are extremely hot. Hot coffee will cause serious skin burns. IMPORTANT: DO NOT use steel wool, sharp objects, or caustic, abrasive or chlorinated cleansers to clean the satellites. PROCEDURE: Clean Satellite PRECAUTIONS: Drain Satellite before Cleaning FREQUENCY:...
  • Page 13: Troubleshooting Suggestions

    1 second Check. Replace if needed Check. Clean or replace as needed Use proper amount and grind of coffee grounds per brew Use 1 genuine Bloomfield filter paper per brew Check time. Adjust or replace as needed Check. Replace if needed Other appliances on water line may be robbing pressure.
  • Page 14: Servicing Instructions

    SERVICING INSTRUCTIONS CAUTION: SHOCK HAZARD Disconnect brewer from electric power before opening any access panel. Note position of any wires or hoses before removing them from a panel. Wrench for Faucet Tubing ACCESS PANELS TOP PANEL is attached with two screws at the rear and a lip at the front.
  • Page 15: Temperature Adjustment

    TEMPERATURE ADJUSTMENT PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. FREQUENCY: As required to adjust delivered volume TOOLS: Phillips head screwdriver 1. Press HEATER ON/OFF switch to OFF. Turn POWER switch on back of brewer OFF. 2. Remove TOP PANEL. Operating controls are accessible through the top panel only.
  • Page 16 SERVICING INSTRUCTIONS (continued) Adjustments to be performed by qualified technician only. NOTE: Brewer is pre-adjusted to deliver 1/2, 1 and/or 1-1/2 gallons of coffee at a water pressure of 50 p.s.i. Use this procedure to adjust the delivered volume to suit local conditions.
  • Page 17 BYPASS ADJUSTMENT (9104A ONLY) PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. FREQUENCY: As required to adjust for change in delivered volume, or to taste. TOOLS: Phillips head screwdriver Stubby flathead screwdriver Provided wire gauge set 1. Press TANK HEATER switch to OFF. Disconnect brewer from electrical power.
  • Page 18 SERVICING INSTRUCTIONS (continued) CAUTION: CHEMICAL BURN HAZARD Deliming chemicals are caustic. Wear appropriate protective gloves and goggles during this procedure. Never siphon deliming chemicals or solutions by mouth. This operation should only be performed by qualified and ex- perienced service personnel. IMPORTANT: DO NOT spill, splash or pour water or deliming solution into or over any internal...
  • Page 19 Repeat for the other side. Rinse satellite with clean water. Reinstall empty satellite under brew chamber. Brewer is ready to use. SERVICING INSTRUCTIONS (continued) NOTE: Normally, silicone hoses do not need to be delimed. Should deliming hoses become necessary, Bloomfield recommends replacing the hoses.
  • Page 20: Exploded View, Brewer

    EXPLODED VIEW PLUMBING COMPONENTS...
  • Page 21: Electrical Components

    EXPLODED VIEW (continued) ELECTRICAL COMPONENTS...
  • Page 22 EXPLODED VIEW ((continued) CABINET & RELATED COMPONENTS...
  • Page 23 EXPLODED VIEW (continued) SATELLITE ASSEMBLY 9105SS...
  • Page 24: Service Kits

    SERVICE KITS FAUCET REPAIR COMPONENTS 82680 Hex Lock Nut 8551-100B 7/16“ Lock Washer 82681 Washer 82556 Faucet Assembly FAUCET REPAIR KITS 82573 Handle 82575 Seat Cup 82576 Faucet Repair Kit (Includes Handle, Seat Cup, Spring, 82682 Retainer Clip 84804 Aerator Replacement Kit (Includes O-Ring, 84870 Aerator Repair Kit (Includes O-Ring &...
  • Page 25: Wiring Diagram

    WIRING DIAGRAMS...
  • Page 26 Bloomfield Industries, Inc. Division of Carrier Commercial Refrigeration In US and Canada Telephone: 775-698-5700 Fax: 888-492-2783 Fax: 800-356-5142 ( for orders only website: www.wellsbloomfield.com PRINTED IN UNITED STATES OF AMERICA...
