BLOOMFIELD INDUSTRIES
2 ERIK CIRCLE, P. O. Box 280
Verdi, NV 89439
Customer Service (775) 345-0444 Ext.502
fax: (775) 345-0569
www.wellsbloomfield.com

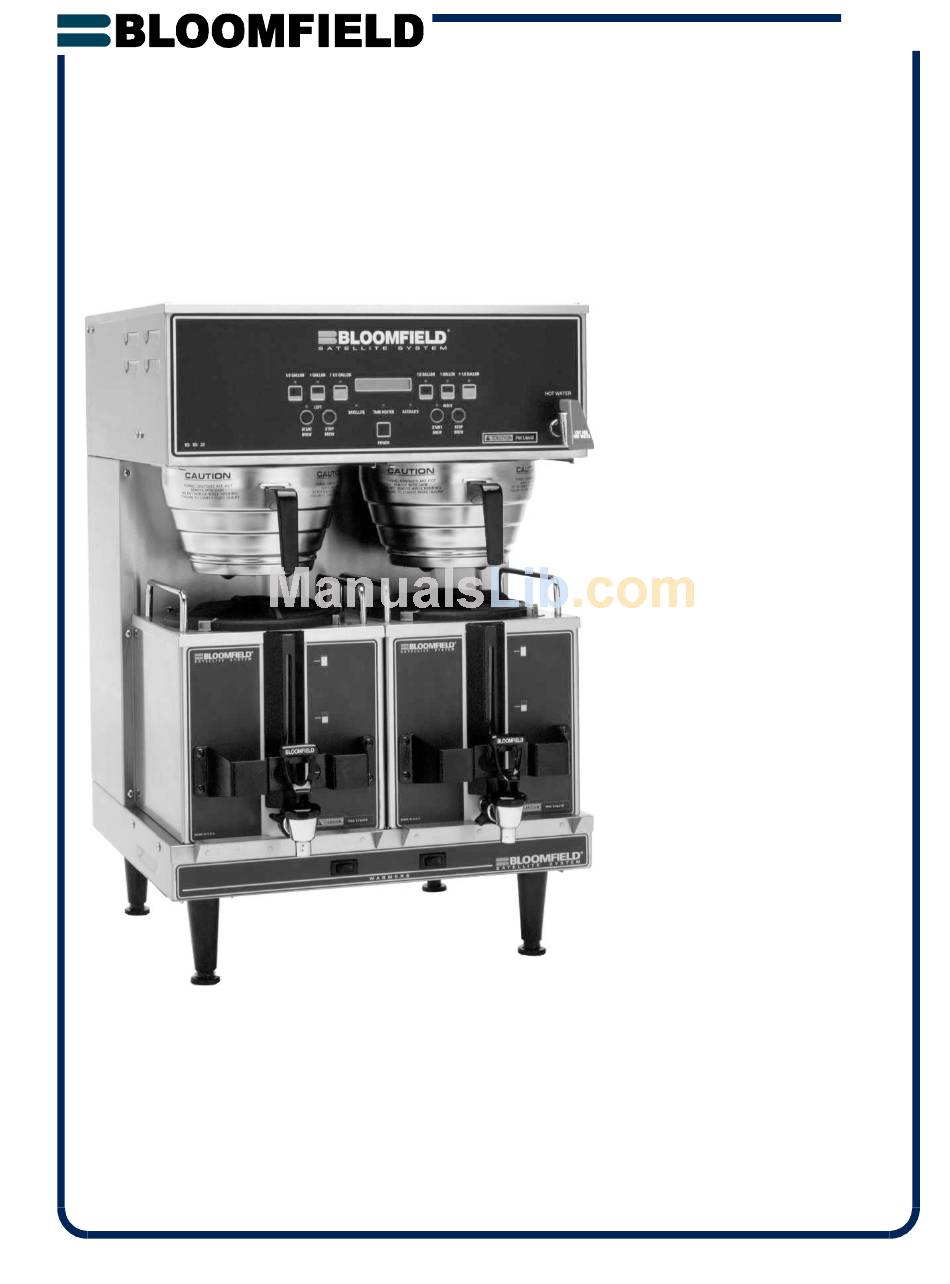

Model 9421 Dual Satellite Brewer
p/n 74340 Rev.C
OWNERS MANUAL
for
SS2 - SERIES
DUAL SATELLITE
COFFEE BREWERS
with
ELECTRONIC
PROGRAMMABLE
CONTROL
and
EXTERNALLY HEATED
SATELLITE SERVERS
MODEL:
9421 (SS2-HE)
Includes:
Installation
Operation
Use & Care
Servicing Instructions
M673 040402 cps
673
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bloomfield 9421 (SS2-HE)
Summary of Contents for Bloomfield 9421 (SS2-HE)
-
Page 1: Servicing Instructions
BLOOMFIELD INDUSTRIES 2 ERIK CIRCLE, P. O. Box 280 Verdi, NV 89439 Customer Service (775) 345-0444 Ext.502 fax: (775) 345-0569 www.wellsbloomfield.com Model 9421 Dual Satellite Brewer p/n 74340 Rev.C OWNERS MANUAL SS2 - SERIES DUAL SATELLITE COFFEE BREWERS with ELECTRONIC... -
Page 2: Warranty Statement
FILE CLAIM FOR DAMAGE IMMEDIATELY: Regardless of the extent of the damage. WARRANTY STATEMENT The prices charged by Bloomfield Industries for its products are based upon the limitations in this warranty. Seller’s obli- gation under this warranty is limited to repair of defects with- out charge by a Bloomfield Industries Authorized Service Agency or one of its sub-agencies. -
Page 3: Table Of Contents
MODEL VOLTS 9421 120/208-240 VAC 50/60 Hz 1ø Thank You for purchasing this Bloomfield Industries appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life. -
Page 4: Features And Operating Controls
FEATURES AND OPERATING CONTROLS Fig 1. SS-2 Satellite Brewing System Features & Operating Controls... - Page 5 Brewer Adjustable Legs Brewing Controls Digital Readout Bypass Nozzle Hot Water Faucet Nameplate Power Key System Switch (not shown) Satellite Locator/Warmer Warmer Switches Brew Chamber Brew Chamber Wire Rack Satellite Brew-Thru Lid Handles Nameplate Serving Faucet Sight Glass Drip Tray (optional) FEATURES AND OPERATING CONTROLS (continued) Allows brewer to be leveled.
-
Page 6: General Information And Precautions
GENERAL INFORMATION AND PRECAUTIONS WARNING: Electric Shock hazard All servicing requiring access to non-insulated electrical components must be performed by a factory authorized technician. DO NOT open any access panel which requires the use of tools. Failure to follow this warning can result in severe electrical shock. -
Page 7: Installation
Plumbing installer must supply the shut-off valve. A 1/4-turn ball valve is recommended. Bloomfield recommends the use of a water strainer to help prevent deposits in the brewing system. Flush the water line before connecting to the brewer. -
Page 8: Operation
START BREWER OPERATION When power is first applied to the brewer, the display will read “BLOOMFIELD” briefly, and a “beep” will sound. Press the POWER key. The inlet valve will energize and the tank will begin filling. The display will read “Filling…” Fill time for the tank is approximately 13 minutes. -
Page 9: Getting Started
DAILY START-UP Press system switch (back of brewer, lower right corner) to ON: Brewer will “beep” and briefly display the message BLOOMFIELD. Press POWER KEY to enter ON mode: Brewer water tank will begin filling. The message FILLING will be displayed. - Page 10 Make sure the wire rack is properly installed in each brew chamber. Insert one (1) Bloomfield paper filter into each brew chamber. Make sure the filter is properly supported by the wire rack. Add a measured amount of grounds to each brew basket.
-
Page 11: Water Flow
WATER FLOW Fig. 6 Water Flow Diagram INLET The INLET VALVE is controlled by a signal from the CONTROL BOARD. If the WATER LEVEL PROBE does not detect water, the inlet solenoid is opened until water is again sensed. BREW The BREW VALVE fed by gravity from the hot water tank, and is controlled by a signal from the CONTROL BOARD. -
Page 12: Cleaning Instructions
CLEANING INSTRUCTIONS CLEANING INSTRUCTIONS CAUTION: Burn Hazard Brewing and serving temperatures of coffee are extremely hot. Hot coffee will cause serious skin burns. WARNING: Electric Shock Hazard DO NOT immerse or submerge satellites. Fluid may saturate the insulation and short-circuit the receptacle connectors. - Page 13 PROCEDURE: Clean Satellite PRECAUTIONS: Drain Satellite before Cleaning FREQUENCY: Twice Weekly TOOLS: Sight Glass Brush, Sanitizer Soft Clean Cloth, Bucket 1. Remove and drain satellites. Remove lids. 2. Place 1 packet of Sanitizer into 2-1/2 gallons of warm tap water. Pour approximately 1 gallon of sanitizer solution into each satellite.
-
Page 14: Programming Instructions
This brewer can be programmed with a personal computer. Please contact your Bloomfield Representative for details NEW MENU SETTINGS Menu Program: Press POWER key to enter OFF mode. Press and hold 3rd & 6th keys for 3 seconds... - Page 15 FEATURES 1. Energizing the Brewer: Turn the brewer on by pressing the POWER key. The brewer will start to fill the tank with the message on the screen “filling…”. With the proper water supply the tank should be filled in about 2½ minutes. Once filled, the heating element will come on until the proper tank temperature has been reached, (which will take about 20 minutes on 120-Volt models or about 12 minutes on 120/240...
- Page 16 PROGRAMMING (continued) ON/OFF – Normal Operation (Non Automatic Timer): To turn the brewer OFF, press the POWER key: 2 beeps will be heard and the brewer will be turned OFF, indicated by all lights being off. To turn the brewer ON, press the POWER key: 2 beeps will sound, all lights will flash once, then the POWER LED will glow.
- Page 17 7. Automatic Start-Up in Previous Mode: If the Satellite Brewer automatic timer is OFF (the factory setting) and power is disconnected, the brewer will start up when power is restored, in the mode it had been in prior to the power disconnection. If the Satellite Brewer has the timer setting ON and power is disconnected, the brewer will start up in the mode that it should be in at the time the power is restored.
- Page 18 PROGRAMMING (continued) The factory programming has the After Hours™ mode turned OFF. While in the After Hours mode, the POWER LED will flash continuously. Keypadlock™ deters unauthorized operation of the brewer. This feature is OFF in the standard factory settings. 12.
-
Page 19: Troubleshooting Suggestions
Allow brewer to cool, verify water level, reset hi-limit Clean water level probe Verify ground connection Replace inlet valve Replace brew valve Use one genuine Bloomfield paper filter per brew Clean brew chamber Correct program (see pg. 12) Verify supply voltage De-lime hot water tank... -
Page 20: Servicing Instructions
SERVICING INSTRUCTIONS CAUTION - CHEMICAL BURN HAZARD Deliming chemicals are caustic. Wear appropriate protective gloves and goggles during this procedure. Never siphon deliming chemicals or solutions by mouth. This operation should only be performed by qualified and ex- perienced service personnel. IMPORTANT: DO NOT spill, splash or pour water or deliming solution into or over any internal... - Page 21 Rinse satellite with clean water. Reinstall one empty satellite under each brew chamber. Brewer is ready to use. SERVICING INSTRUCTIONS (continued) NOTE: Normally, silicone hoses do not need to be delimed. Should deliming hoses become necessary, Bloomfield recommends replacing the hoses.
-
Page 22: Exploded Views
EXPLODED VIEW CABINET AND EXTERIOR COMPONENTS... -
Page 24: Interior Components
EXPLODED VIEW INTERIOR COMPONENTS... - Page 25 ITEM SERVICE # DESCRIPTION 84427 VALVE ASSEMBLY 83778 RETAINING CLIP TANK LID NUT KEP 8-32 SS 8043-12 GASKET COVER TANK 8812-57 FITTING UNION 1/4 x 1/4 8710-10 NUT HEX BR 7/16-20 x 1/8 84370 TUBE ASSY INLET 8551-53 WASHER SS 8783-1 FAUCET HOT WATER BRACKET OUTLET VALVE...
-
Page 26: Wiring Diagram
WIRING DIAGRAM... -
Page 27: Satellite
SATELLITE EXPLODED VIEW & PARTS LIST SATELLITE MODEL 9440 ITEM PART NO. 83863 84313 84341 84390 8700-25L SEAT CUP, #3S10 84392 84394 8600-26 84395 84489 84488 4.10 84396 84299 84300 84354 8043-13 DESCRIPTION WELDMENT, SATELLITE TANK LID ASSY HANDLE / FAUCET GUARD FAUCET &... - Page 28 Bloomfield Industries proudly supports CFESA Commercial Food Equipment Service Association Bloomfield Industries, Inc. Division of Carrier Refrigeration PO. Box 280 Verdi, NV. 89439 Telephone (775)345-0444 Service: (888)492-2782 Fax (888)492-2783 website: www.wellsbloomfield.com Bloomfield Industries Canada Limited Division of Carrier Refrigeration 5850 Keaton Cresent...
