671

BLOOMFIELD INDUSTRIES

10 Sunnen Drive

St. Louis, MO 63143

telephone: 314-678-6336

fax: 314-781-2714

www.wellsbloomfield.com

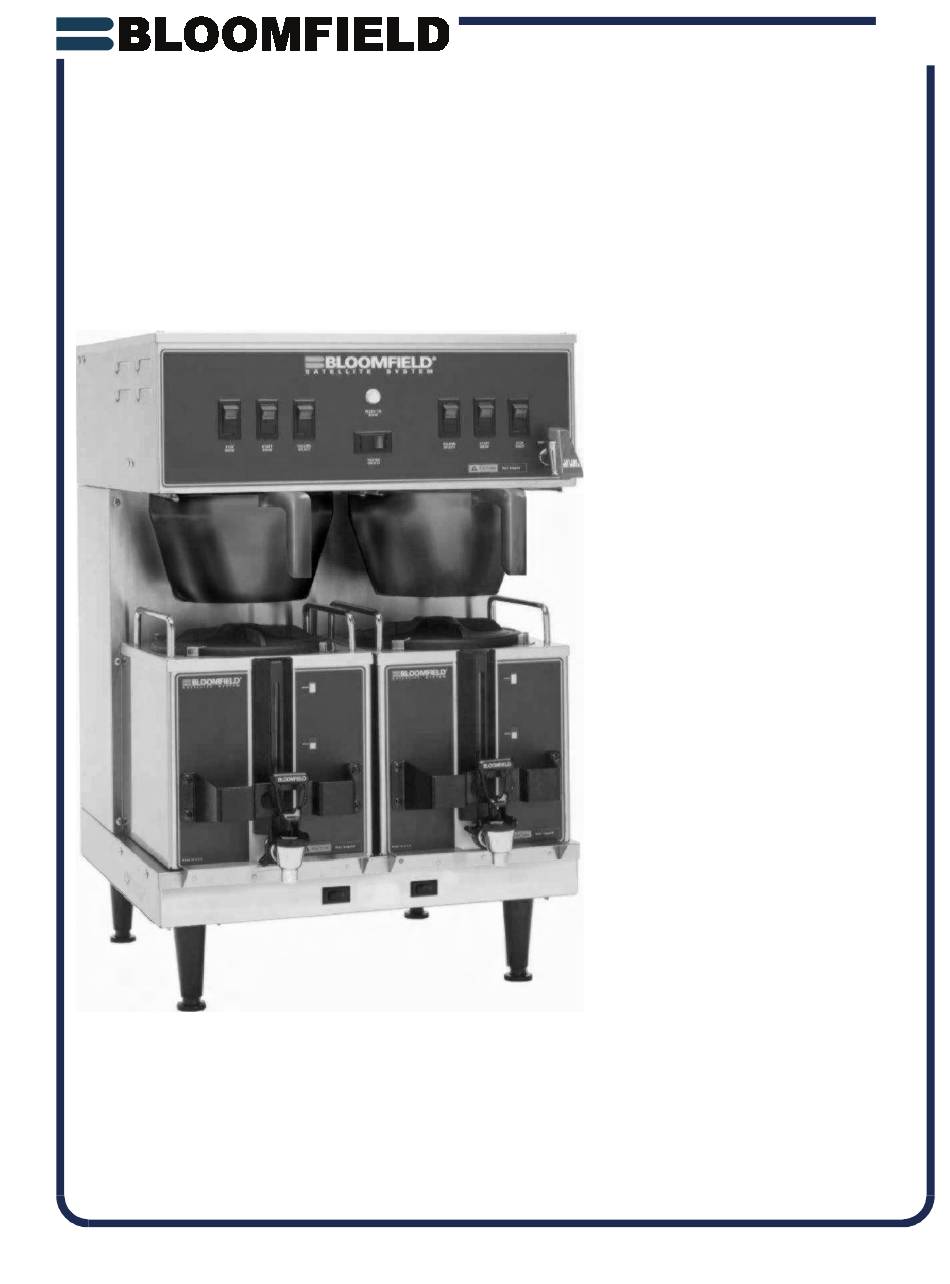

OWNERS MANUAL

for

SS2 - SERIES

DUAL SATELLITE

COFFEE BREWER

with

ELECTRO-MECHANICAL

CONTROL

and

EXTERNALLY HEATED

SATELLITE SERVERS

MODEL:

9221

Includes:

Installation

Operation

Use & Care

Servicing Instructions

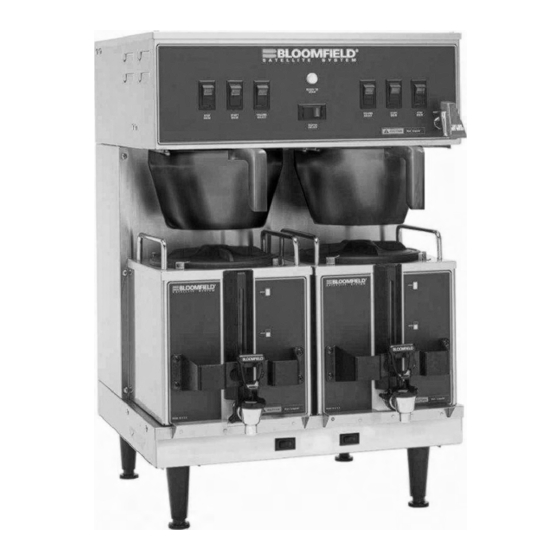

Model 9221 Dual Satellite Brewer

Z15419

1205

p/n 2M-

Rev. -

M671

Need help?

Do you have a question about the 9221 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bloomfield 9221

Page 1 314-781-2714 www.wellsbloomfield.com OWNERS MANUAL SS2 - SERIES DUAL SATELLITE COFFEE BREWER with ELECTRO-MECHANICAL CONTROL EXTERNALLY HEATED SATELLITE SERVERS MODEL: 9221 Includes: Installation Operation Use & Care Servicing Instructions Model 9221 Dual Satellite Brewer Z15419 1205 p/n 2M- Rev. - M671...
Page 2 The prices charged by Bloomfield Industries for its products original installation or eighteen (18) months from the date of are based upon the limitations in this warranty. Seller’s...
Page 3 TABLE OF CONTENTS Thank You for purchasing this WARRANTY STATEMENT Wells Bloomfield appliance. SPECIFICATIONS Proper installation, professional FEATURES & OPERATING CONTROLS operation and consistent PRECAUTIONS & GENERAL INFORMATION maintenance of this appliance will AGENCY APPROVAL INFORMATION ensure that it gives you the very...
Page 4 FEATURES AND OPERATING CONTROLS IL2303, M671 Fig 1. SS-2 Satellite Brewing System Features & Operating Controls...
Page 5 FEATURES AND OPERATING CONTROLS (continued) Brewer Adjustable Legs Allows brewer to be leveled. Also allow clearance for cleaning underneath brewer. Brewing Controls Start or stop brew and select brew volume. Right and left section are independent. Bypass Nozzle Dilution water flows into brew chamber channel from here. Dilution water DOES NOT flow through the coffee grounds.
Page 6 GENERAL INFORMATION AND PRECAUTIONS This appliance is intended for use in commercial establishments WARNING: only. SHOCK HAZARD This appliance is intended to brew hot beverage, specifically coffee, All servicing requiring access for human consumption. No other use is recommended or authorized to non-insulated electrical by the manufacturer or its agents.
Page 7 Plumbing FRAME installer must supply the regulator. Brewer must be connected to a potable water supply. Bloomfield recommends not less than 1/4” copper tubing for installations of ADJUST 12’ or less, and not less than 3/8” copper tubing for installations HEIGHT exceeding 12’.
Page 8 INSTALLATION INSTRUCTIONS (continued) INITIAL SET-UP INSTRUCTIONS IMPORTANT: Initial set-up must be performed Plumber’s and Electrician’s installation procedures must be by a qualified installer or completed before proceeding with the set-up. qualified service technician. Improper set-up will damage the Be sure all electrical connections are secure, and that all brewer and void the warranty.
Page 9 OPERATING INSTRUCTIONS 1 1/2 GAL 1 1/2 GAL READY TO BREW 1 GAL 1 GAL START STOP VOLUME VOLUME STOP START BREW BREW SELECT SELECT BREW BREW HEATER ON / OFF Fig. 3 Control Panel IL2305, M671 GETTING STARTED Check the brewer and satellites: Check that the brewer is clean and the drip tray (if used) is empty.
Page 10 Make sure the bypass diverter is properly installed in each brew chamber. Insert one (1) Bloomfield paper filter into each brew chamber. Add a measured amount of grounds to each brew basket. Gently shake the basket to level the grounds.
Page 11 OPERATING INSTRUCTIONS (continued) WATER FLOW IL2307 The 9221-Series of INLET brewers have two The INLET VALVE is controlled by a signal from the CONTROL independent brewing BOARD. If the WATER LEVEL PROBE does not detect water, the inlet systems sharing a common solenoid is opened until water is again sensed.
Page 12 CLEANING INSTRUCTIONS CLEANING INSTRUCTIONS PROCEDURE: Clean Coffee Brewer CAUTION: BURN HAZARD PRECAUTIONS: Press POWER key to OFF. Allow brewer to cool. Brewing and serving temperatures of coffee are FREQUENCY: Daily extremely hot. Hot coffee will cause serious TOOLS: Mild Detergent, Clean Soft Cloth or Sponge skin burns.
Page 13 CLEANING INSTRUCTIONS (continued) PROCEDURE: Clean Satellite CAUTION: BURN HAZARD PRECAUTIONS: Drain Satellite before Cleaning Brewing and serving FREQUENCY: Twice Weekly temperatures of coffee are extremely hot. TOOLS: Sight Glass Brush, Sanitizer Hot coffee will cause Soft Clean Cloth, Bucket serious skin burns. IMPORTANT: DO NOT submerge satellite in water.
Page 14 SERVICING INSTRUCTIONS PROCEDURE: Delime the Water Tank CAUTION: CHEMICAL BURN PRECAUTIONS: Disconnect brewer from electric power. HAZARD Allow brewer to cool. Deliming chemicals may be caustic. Wear appropriate FREQUENCY: As required (Brewer slow to heat) protective gloves and goggles during this procedure. Never TOOLS: Deliming Solution siphon deliming chemicals or...
Page 15 Should deliming hoses down clamps. become necessary, Bloomfield 11. Remove spray disks and gaskets. Rinse both brew heads recommends replacing the with clean water. Using a stiff brush, scrub spray disk to hoses.
Page 16 SERVICING INSTRUCTIONS (continued) TIMER ADJUSTMENT CAUTION: SHOCK HAZARD PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. Disconnect brewer from electric power before opening the access panel. FREQUENCY: As required to adjust delivered volume TOOLS: Phillips head screwdriver Satellite or other container to calibrate volume Adjustments to be performed by qualified technician only.
Page 17 SERVICING INSTRUCTIONS (continued) TEMPERATURE ADJUSTMENT CAUTION: SHOCK HAZARD PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. Live electrical circuits are exposed during this procedure. FREQUENCY: As required to adjust delivered volume Use care to avoid uninsulated electrical connectors. TOOLS: Phillips head screwdriver Satellite or other container to calibrate volume...
Page 18 Replace inlet valve Brew valve damaged Replace brew valve Tank water boiling Adjust or replace thermostat Too many paper filters or wrong filter Use one genuine Bloomfield paper filter used. per brew Chamber discharge hole plugged Clean brew chamber Brew chamber overflows...
Page 19 SATELLITE EXPLODED VIEW & PARTS LIST SATELLITE MODEL 9440 4.4 4.5 PART OF ITEM 4 4 PL 2 PL P/N: BLSRLH 74337 Rev. D 02/12/04 IL1855a SATELLITE ASSEMBLY 9440 Fig No Part No Quantity. Description D7-76657 WELDMENT SATELLITE ASSY 2L-73863 TANK LID ASSY, SRL-DP 2R-74313 HANDLE FAUCET GUARD...
Page 20 EXPLODED VIEW CABINET AND EXTERIOR COMPONENTS IL2309, PL671...
Page 21 A6-72727 SPRAY HEAD DISC EMBOSSED 2A-73098 LEG 4 BLK PLASTIC W/FLAN 2A-73107 FEET RUBBER BLACK 2M-74604 DECAL SS2 9221 CONTROL PA D7-76631 BRKT TANK SUPPORT TOP SS2 2E-74620 SWITCH LIGHTED SP OFF MOM 2E-74621 SWITCH DP ON MOM OFF 10A...
Page 22 EXPLODED VIEW INTERIOR COMPONENTS IL2310, PL671...
Page 23 PARTS LIST: INTERIOR COMPONENTS Model: Dual Satelite Brewers, Interior Components Fig No. Part Number Description D7-73778 RETAINING CLIP TANK LID 2I-70147 GASKET TANK COVER 2U-71061 FAUCET HOT WATER D7-76576 BRKT OUTLET VALVE A6-73521 PROBE ASSY WATER LEVEL 2A-73532 SLEEVE WATER LEVEL PROBE 2I-72390 GROMMET .375 ID TRANSLUCE F4-73978...
Page 24 WIRING DIAGRAM LEFT RIGHT WARMER SWITCH WARMER SWITCH MODEL VOLTS WATTS AMPS POWER BLUE 9221 120/208-240 4700/6250 23/26.0 50/60 SWITCH BLACK BLACK WHITE ORANGE BLACK 12 GA BLACK LEFT RIGHT (L1) WARMER ELEMENT WARMER ELEMENT WHITE WHITE RED 12 GA...
