BLOOMFIELD INDUSTRIES
10 Sunnen Drive
St. Louis, MO 63143
telephone: 314-678-6336
fax: 314-781-2714
www.wellsbloomfield.com

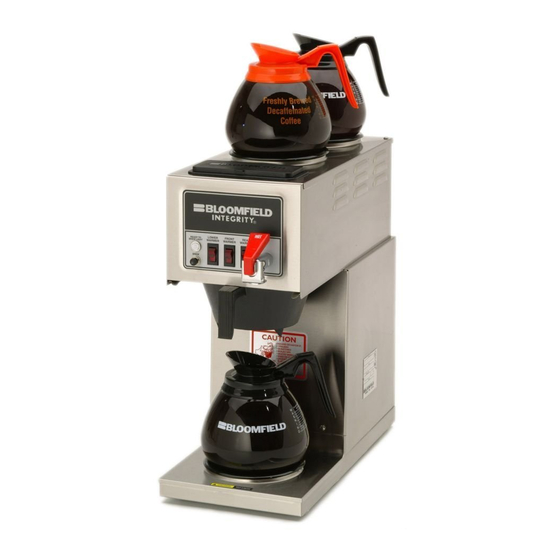

Model 9012 Brewers
with optional
8900-Series Glass Decanters
2M-75815
p/n
Rev. I
OWNERS MANUAL
for
INTEGRITY™
DECANTER
COFFEE BREWERS
MODELS
9003
9010 9012
9016
Includes:
Installation
Use & Care
Servicing Instructions
10
M601
601
0915

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Integrity 9003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bloomfield Integrity 9003

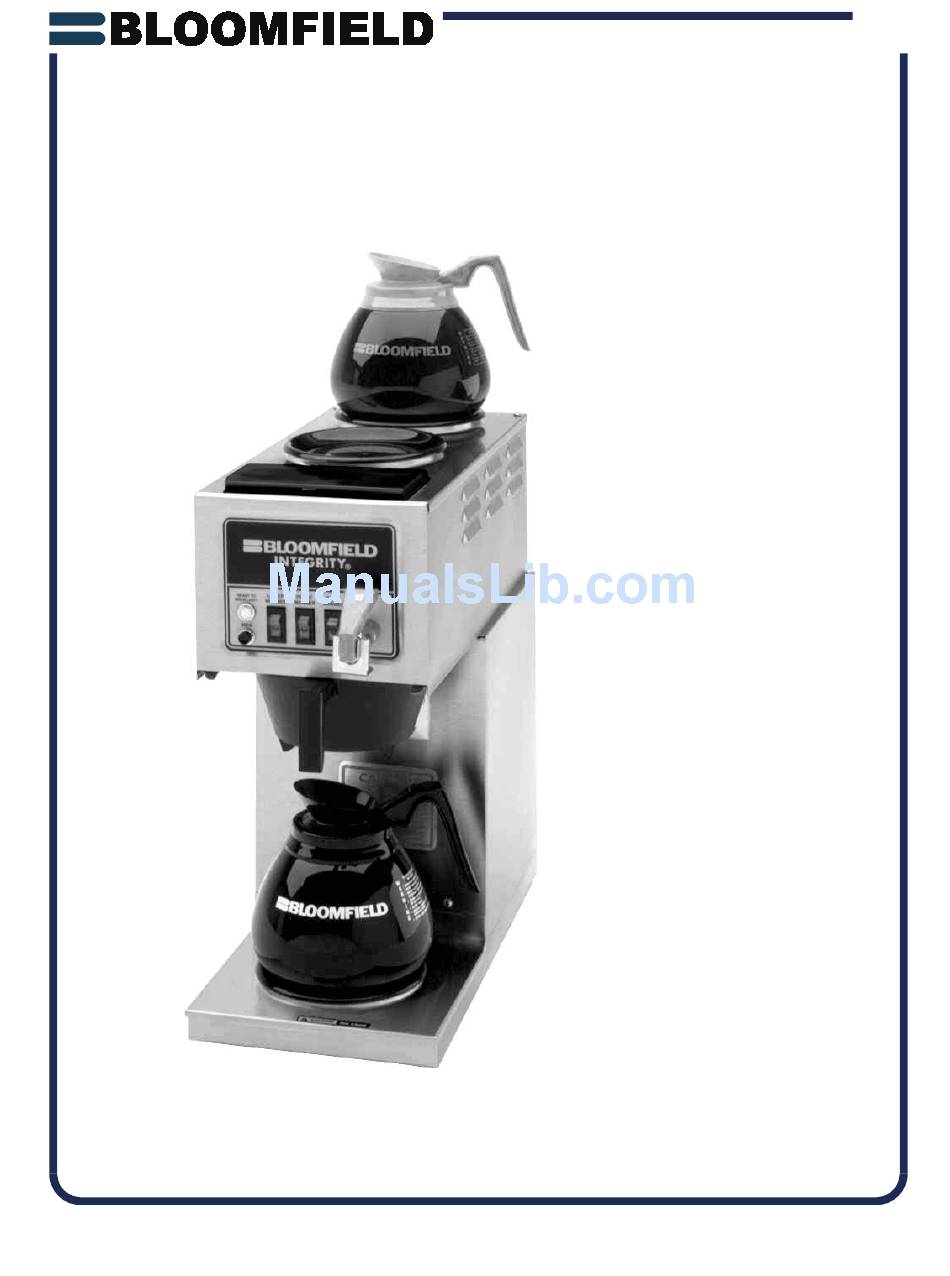

  • Page 1 BLOOMFIELD INDUSTRIES 10 Sunnen Drive St. Louis, MO 63143 telephone: 314-678-6336 fax: 314-781-2714 www.wellsbloomfield.com OWNERS MANUAL INTEGRITY™ DECANTER COFFEE BREWERS MODELS 9003 9010 9012 9016 Includes: Installation Use & Care Servicing Instructions Model 9012 Brewers with optional 8900-Series Glass Decanters 2M-75815 Rev.
  • Page 2: Warranty Statement

    The prices charged by Bloomfield Industries for its products original installation or eighteen (18) months from the date of are based upon the limitations in this warranty. Seller’s...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS WARRANTY STATEMENT Thank You for purchasing this Wells Bloomfield appliance. SPECIFICATIONS FEATURES & OPERATING CONTROLS Proper installation, professional PRECAUTIONS & GENERAL INFORMATION operation and consistent AGENCY APPROVAL INFORMATION maintenance of this appliance will INSTALLATION INSTRUCTIONS ensure that it gives you the very...
  • Page 4: Features & Operating Controls

    FEATURES AND OPERATING CONTROLS HOT WATER FAUCET (certain models) WATER LINE CONNECTION IL1614a Fig. 1 Features & Operating Controls...
  • Page 5: Precautions & General Information

    PRECAUTIONS AND GENERAL INFORMATION WARNING: ELECTRIC SHOCK HAZARD WARNING All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. WARNING: INJURY HAZARD WARNING...
  • Page 6: Installation Instructions

    A flex line or loops of copper tubing will satisfy this operation of the brewer. requirement. See Figure 2 below. Bloomfield recommends 1/4” copper tubing for installation of less than 12 feet and 3/8” for more than 12 feet from a 1/2”...
  • Page 7 INSTALLATION INSTRUCTIONS (continued) NOTE: This equipment must In some areas, local codes require a backflow preventer (check be installed to comply with valve) to be installed on the inlet water line. If a backflow applicable federal, state and preventer is used, you must install a water hammer arrester in local plumbing codes and the incoming line, between the backflow preventer and the ordinances.
  • Page 8: Operation

    OPERATION IL1617 Fig. 4 Brewer Operation Diagram IMPORTANT: START-UP Tank must be full of For initial start-up, or if the brewer has not been used for an water before connecting extended period of time: brewer to electrical power. Heating elements will be •...
  • Page 9: Water Heater

    OPERATION (continued) WATER HEATER Water temperature is sensed by a thermobulb inserted into the water tank. This temperature signal is fed to the thermostat, which controls line power to the heating element. The setpoint temperature is adjustable at the thermostat. The element is protected from over-temperature by a hi-limit thermostat.
  • Page 10: Brewing Coffee

    BREWING COFFEE CAUTION: PREPARATION Place one (1) genuine Bloomfield BURN HAZARD paper filter in the brew chamber. Exposed surfaces of the Add a pre-measured amount of brewer, brew chamber and fresh coffee grounds. decanter may be HOT to Gently shake the brew chamber to the touch, and can cause level the bed of grounds.
  • Page 11: Cleaning Instructions

    CLEANING INSTRUCTIONS PROCEDURE: Clean Coffee Brewer CAUTION: BURN HAZARD PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. Brewing and serving temperatures of coffee are FREQUENCY: Daily extremely hot. Hot coffee will cause TOOLS: Mild Detergent, Clean Soft Cloth or Sponge serious skin burns.
  • Page 12: Troubleshooting Suggestions

    Adjust amount of grounds Coffee level too high or low (automatic) Timer out of adjustment Adjust timer Too many filter papers or wrong filter Use one (1) genuine Bloomfield filter paper per brew Brew chamber overflows Brew chamber dispense hole plugged...
  • Page 13: Servicing Instructions

    SERVICING INSTRUCTIONS ACCESS PANELS CAUTION: SHOCK HAZARD Each warmer plate has a center stud which screws into a bracket. Warmer plates on Canadian brewers are secured with a nut. Opening access panels or Remove button plug on bottom of brewer to access nut on main removing warmer plates on this warmer.
  • Page 14 SERVICING INSTRUCTIONS (continued) TEMPERATURE ADJUSTMENT CAUTION: Unplug power cord or turn circuit breaker OFF. SHOCK HAZARD Remove top panel. These procedures involve Pull vent tube out of tank lid and insert a thermometer of known exposed electrical circuits. accuracy in vent hole. Reconnect brewer to electrical power. These procedures are to be performed by qualified technical personnel only.
  • Page 15 SERVICING INSTRUCTIONS (continued) TIMER ADJUSTMENT IMPORTANT: Water pressure The amount of water dispensed automatically during a brew cycle must be between 20 p.s.i and is controlled by the timer. 90 p.s.i. flowing pressure. If water pressure exceeds this Place empty decanter under brew chamber. Press BREW value, or if water pressure button.
  • Page 16 SERVICING INSTRUCTIONS (continued) IMPORTANT: When replacing REPLACE HEATING ELEMENT heating element, also replace Remove tank lid assembly as described on page 13. seal gaskets. Remove two hex nuts holding element to cover. Pull element from mounting holes. Reassemble in reverse order. REPLACE SOLENOID Symptom: Automatic brewer will not flow water;...
  • Page 17 SERVICING INSTRUCTIONS (continued) REPLACE TIMER ASSEMBLY Unplug power cord or turn circuit breaker OFF. Remove front panel. Remove knob and three screws holding timer to bracket. Disconnect wiring to timer. Reassemble in reverse order. Adjust timer as described on page 13 REPLACE HOT WATER FAUCET COIL IMPORTANT: When replacing Symptom: Brewer drips continuously from brew head, except...
  • Page 18: Deliming Instructions

    SERVICING INSTRUCTIONS (continued) PROCEDURE: Delime the Water Tank CAUTION: CHEMICAL BURN PRECAUTIONS: Disconnect brewer from electric power. HAZARD Allow brewer to cool. Deliming chemicals may be caustic. Wear appropriate protective gloves and goggles FREQUENCY: As required (Brewer slow to heat) during this procedure.
  • Page 19 Should deliming hoses become necessary, Bloomfield recom- 8. Reinstall wiring to heating element and thermostat. Reinstall mends replacing the hoses. the hi-limit thermostat (if removed). For brewers with hot water faucet, reassemble faucet piping.
  • Page 20: Exploded Views & Parts Lists

    EXPLODED VIEW & PARTS LIST HOT WATER TANK ASSEMBLY IL1622 ITEM PART NO. DESCRIPTION USED ON 2C-70134 HOLD-DOWN STRAP 9010, 9012(CA), 9016(EX) 2C-73457 NUT, HEX 8-32 KEPS 9010, 9012(CA), 9016(EX) WS-8512-51 THERMOSTAT (BLACK BODY - INCL. SEAL & MOUNTING SCREWS) 9010, 9012(CA), 9016(EX) WS-86280 THERMO (ALT) (GRAY BODY - INCL.
  • Page 21 EXPLODED VIEW & PARTS LIST (continued) CABINET PLUMBING COMPONENTS IL1623 ITEM PART NO. DESCRIPTION USED ON 2V-70104 FORMED TUBE, FAUCET OUTLET ASSEMBLY 10-7/8” LONG 9010, 9012(CA), 9016(EX) 2V-70111 FORMED TUBE, FAUCET COIL INLET ASSEMBLY 9010, 9012(CA), 9016(EX) 2E-70451 ADAPTER, 1/4” MALE FLARE x 1/8” FPT BRASS 9010, 9012(CA), 9016(EX) 2V-70352 VALVE, FAUCET SHUT OFF, NEEDLE SEAT...
  • Page 22: Electrical Components

    EXPLODED VIEW & PARTS LIST (continued) ELECTRICAL COMPONENTS IL1624 ITEM PART NO. DESCRIPTION USED ON 2N-70091UL HEATING ELEMENT, WARMER 120V 100W ALL EXCEPT 9016(EX) 2N-70635UL HEATING ELEMENT, WARMER 220V 85W / 240V 100W 9016(EX) 2E-72946 SWITCH, WARMER ON/OFF 120V ALL EXCEPT 9016(EX) 2E-70247 SWITCH, WARMER ON/OFF 240V 9016(EX)
  • Page 23 EXPLODED VIEW & PARTS LIST (continued) CABINET COMPONENTS IL1625 ITEM PART NO. DESCRIPTION USED ON 2D-70090 COVER PLATE, WARMER BLACK 9010, 9012(CA), 9016(EX) 2I-70139 GASKET, SPRAY HEAD 9010, 9012(CA), 9016(EX) A6-72727 SPRAY DISK, EMBOSSED 9010, 9012(CA), 9016(EX) A6-70163 RETAINER, SPRAY HEAD (REQUIRES DRILL/RIVETS TO INSTALL) 9010, 9012(CA), 9016(EX) 2P-70053 BUTTON PLUG, 2”, METAL...
  • Page 24: Wiring Diagrams

    WIRING DIAGRAMS 9003...
  • Page 25 WIRING DIAGRAMS 9010...
  • Page 26 WIRING DIAGRAMS 9016...
  • Page 27 NOTES...
  • Page 28 10 Sunnen Drive, St. Louis, MO 63143 telephone: 314-678-6336 fax: 314-781-2714 www.wellsbloomfield.com...

This manual is also suitable for:

Integrity 9010Integrity 9012Integrity 9016
