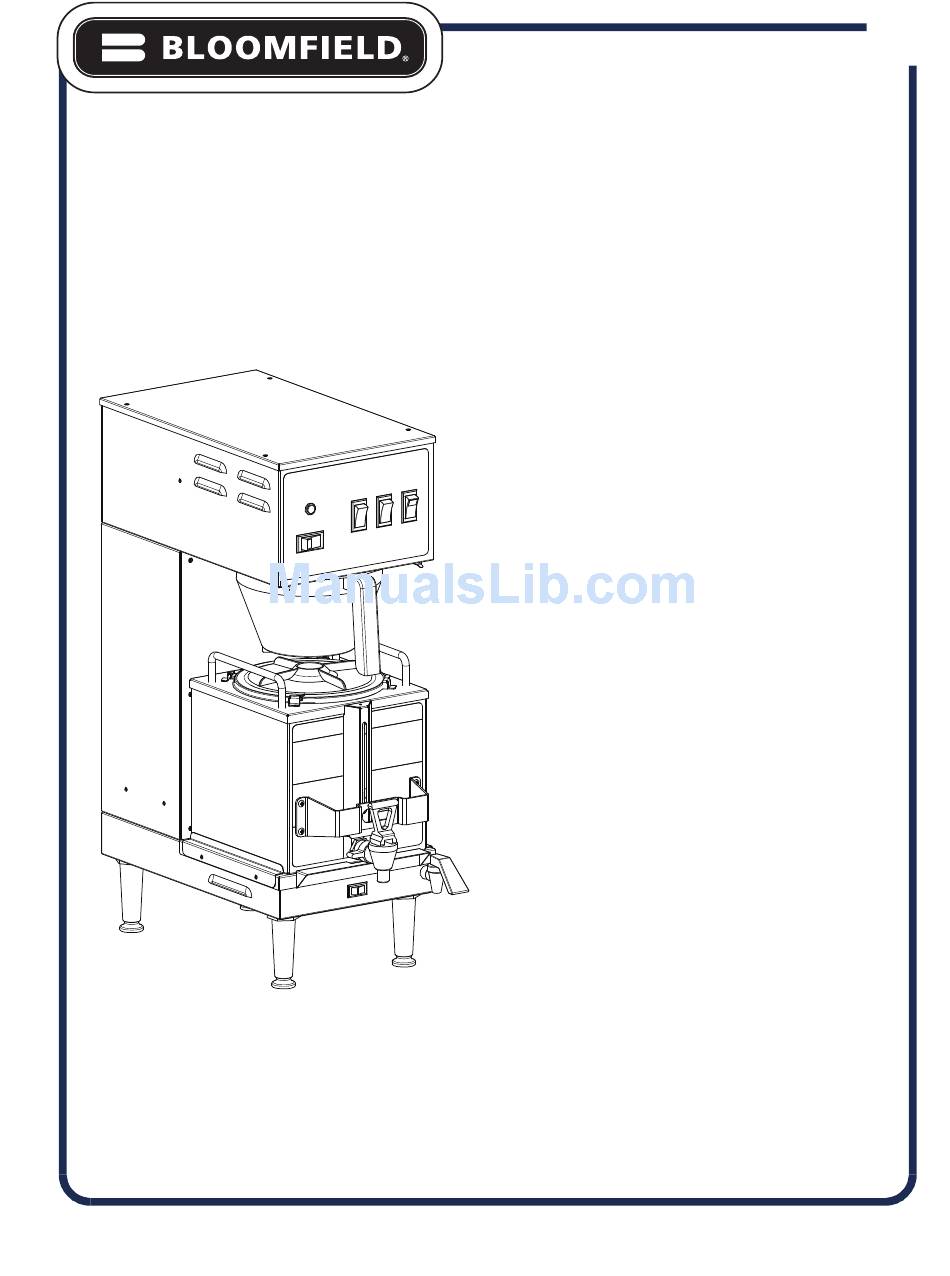

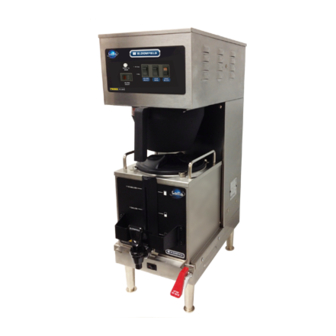

Model 9121 Single Satellite Brewer
Z16955
p/n 2M-
Rev. B
OWNERS MANUAL
for
SINGLE & DUAL
SATELLITE
COFFEE BREWER
with
ELECTRO-MECHANICAL
CONTROL
and
EXTERNALLY HEATED
SATELLITE SERVERS
MODEL:
9121
9221
Includes:
Installation
Operation
Use & Care
Servicing Instructions
13
M671
671
1114
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Bloomfield 9121
Summary of Contents for Bloomfield 9121
- Page 1 314-781-2714 OWNERS MANUAL www.wellsbloomfield.com SINGLE & DUAL SATELLITE COFFEE BREWER with ELECTRO-MECHANICAL CONTROL EXTERNALLY HEATED SATELLITE SERVERS MODEL: 9121 9221 Includes: Installation Operation Use & Care Servicing Instructions Model 9121 Single Satellite Brewer Z16955 1114 p/n 2M- Rev. B M671...
-
Page 2: Warranty Statement
The prices charged by Bloomfield for its products are based for a period of (1 year labor, two year parts) from the date upon the limitations in this warranty. Seller’s obligation under... -
Page 3: Specifications
TABLE OF CONTENTS Thank You for purchasing this WARRANTY STATEMENT Wells Bloomfield appliance. SPECIFICATIONS Proper installation, professional FEATURES & OPERATING CONTROLS operation and consistent PRECAUTIONS & GENERAL INFORMATION maintenance of this appliance will AGENCY APPROVAL INFORMATION ensure that it gives you the very... -
Page 4: Features And Operating Controls
FEATURES AND OPERATING CONTROLS BREW CHAMBER (IN POSITION) FUSE (BEHIND FRONT PANEL) SALELLITE (IN POSITION) HOT WATER FAUCET WARMER SWITCHES IL2303a, M671 Fig 1. SS-2 Satellite Brewing System Features & Operating Controls... - Page 5 FEATURES AND OPERATING CONTROLS (continued) Brewer Adjustable Legs Allows brewer to be leveled. Also allow clearance for cleaning underneath brewer. Brewing Controls Start or stop brew and select brew volume. Right and left section are independent. Bypass Nozzle Dilution water flows into brew chamber channel from here. Dilution water DOES NOT flow through the coffee grounds.
-
Page 6: General Information And Precautions
GENERAL INFORMATION AND PRECAUTIONS This appliance is intended for use in commercial establishments WARNING: only. SHOCK HAZARD This appliance is intended to brew hot beverage, specifically coffee, All servicing requiring access for human consumption. No other use is recommended or authorized to non-insulated electrical by the manufacturer or its agents. -
Page 7: Installation Instructions
Plumbing FRAME installer must supply the regulator. Brewer must be connected to a potable water supply. Bloomfield recommends not less than 1/4” copper tubing for installations of ADJUST 12’ or less, and not less than 3/8” copper tubing for installations HEIGHT exceeding 12’. -
Page 8: Final Checks
INSTALLATION INSTRUCTIONS (continued) INITIAL SET-UP INSTRUCTIONS IMPORTANT: Initial set-up must be performed Plumber’s and Electrician’s installation procedures must be by a qualified installer or completed before proceeding with the set-up. qualified service technician. Improper set-up will damage the Be sure all electrical connections are secure, and that all brewer and void the warranty. -
Page 9: Getting Started
OPERATING INSTRUCTIONS 1 1/2 GAL 1 1/2 GAL READY TO BREW 1 GAL 1 GAL START STOP VOLUME VOLUME STOP START BREW BREW SELECT SELECT BREW BREW HEATER ON / OFF Fig. 3 Control Panel IL2305, M671 GETTING STARTED Check the brewer and satellites: Check that the brewer is clean and the drip tray (if used) is empty. -
Page 10: Brewing Coffee
Make sure the bypass diverter is properly installed in each brew chamber. Insert one (1) Bloomfield paper filter into each brew chamber. Add a measured amount of grounds to each brew basket. Gently shake the basket to level the grounds. -
Page 11: Water Flow
OPERATING INSTRUCTIONS (continued) WATER FLOW IL2307 The 9221-Series of INLET brewers have two The INLET VALVE is controlled by a signal from the CONTROL independent brewing BOARD. If the WATER LEVEL PROBE does not detect water, the inlet systems sharing a common solenoid is opened until water is again sensed. -
Page 12: Cleaning Instructions
CLEANING INSTRUCTIONS CLEANING INSTRUCTIONS PROCEDURE: Clean Coffee Brewer CAUTION: BURN HAZARD PRECAUTIONS: Press POWER key to OFF. Allow brewer to cool. Brewing and serving temperatures of coffee are FREQUENCY: Daily extremely hot. Hot coffee will cause serious TOOLS: Mild Detergent, Clean Soft Cloth or Sponge skin burns. - Page 13 CLEANING INSTRUCTIONS (continued) PROCEDURE: Clean Satellite CAUTION: BURN HAZARD PRECAUTIONS: Drain Satellite before Cleaning Brewing and serving FREQUENCY: Twice Weekly temperatures of coffee are extremely hot. TOOLS: Sight Glass Brush, Sanitizer Hot coffee will cause Soft Clean Cloth, Bucket serious skin burns. IMPORTANT: DO NOT submerge satellite in water.
-
Page 14: Servicing Instructions
SERVICING INSTRUCTIONS PROCEDURE: Delime the Water Tank CAUTION: CHEMICAL BURN PRECAUTIONS: Disconnect brewer from electric power. HAZARD Allow brewer to cool. Deliming chemicals may be caustic. Wear appropriate FREQUENCY: As required (Brewer slow to heat) protective gloves and goggles during this procedure. Never TOOLS: Deliming Solution siphon deliming chemicals or... -
Page 15: Draining Hot Water Tank
Should deliming hoses down clamps. become necessary, Bloomfield 11. Remove spray disks and gaskets. Rinse both brew heads recommends replacing the with clean water. Using a stiff brush, scrub spray disk to hoses. -
Page 16: Timer Adjustment
SERVICING INSTRUCTIONS (continued) TIMER ADJUSTMENT CAUTION: SHOCK HAZARD PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. Disconnect brewer from electric power before opening the access panel. FREQUENCY: As required to adjust delivered volume TOOLS: Phillips head screwdriver Satellite or other container to calibrate volume Adjustments to be performed by qualified technician only. -
Page 17: Temperature Adjustment
SERVICING INSTRUCTIONS (continued) TEMPERATURE ADJUSTMENT CAUTION: SHOCK HAZARD PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. Live electrical circuits are exposed during this procedure. FREQUENCY: As required to adjust delivered volume Use care to avoid uninsulated electrical connectors. TOOLS: Phillips head screwdriver Satellite or other container to calibrate volume... -
Page 18: Troubleshooting Suggestions
Replace inlet valve Brew valve damaged Replace brew valve Tank water boiling Adjust or replace thermostat Too many paper filters or wrong filter Use one genuine Bloomfield paper filter used. per brew Chamber discharge hole plugged Clean brew chamber Brew chamber overflows... -
Page 19: Satellite Exploded View & Parts List
SATELLITE EXPLODED VIEW & PARTS LIST SATELLITE MODEL 9440 4.4 4.5 PART OF ITEM 4 4 PL 2 PL P/N: BLSRLH 74337 Rev. D 02/12/04 IL1855b SATELLITE ASSEMBLY 9440 Fig No Part No Quantity Description D7-76657 WELDMENT SATELLITE ASSY 2L-73863 TANK LID ASSY, SRL-DP 2R-74313 HANDLE FAUCET GUARD... - Page 20 EXPLODED VIEW 9221 CABINET AND EXTERIOR COMPONENTS IL2309, PL671...
- Page 21 PARTS LIST : 9221 CABINET AND EXTERIOR COMPONENTS Model: Dual Satelite Brewers, Cabinet & Exterior Comp Fig No. Part Number Description 2K-300102 STRAIN RELIEF 1NPT.375-1. 2C-35485 NUT 1/4-20 HEX FINISHED S WS-50131 TERM BLK KIT-3 POLE .85AMP D7-76588 BRKT THERMOSTAT 2C-46672 LUG GROUND SOLDERLESS 6-1 2C-35736...
- Page 22 EXPLODED VIEW 9221 INTERIOR COMPONENTS IL2310, PL671...
- Page 23 PARTS LIST: 9221 INTERIOR COMPONENTS Model: Dual Satelite Brewers, Interior Components Fig No. Part Number Description D7-73778 RETAINING CLIP TANK LID 2I-70147 GASKET TANK COVER 2U-71061 FAUCET HOT WATER D7-76576 BRKT OUTLET VALVE A6-73521 PROBE ASSY WATER LEVEL 2A-73532 SLEEVE WATER LEVEL PROBE 2I-72390 GROMMET .375 ID TRANSLUCE F4-73978...
- Page 24 EXPLODED VIEW 9121 CABINET AND EXTERIOR COMPONENTS See Detail Model: 9121, Single Satellite Brewer SK2651 Rev. - 5/8/13...
- Page 25 PARTS LIST : 9121 CABINET AND EXTERIOR COMPONENTS Model 9121: Single Satelite Brewers, Main Assy Fig No. Part Number Description Applications 2C-76007 SCREW 8AX1/2 SS TR PH SMS D7-Z16698 TOP COVER 2V-73388 VALVE ADJUST WATER OUTLET 2A-73384 TUBE SPRAY HEAD 2 3/8 LG...
-
Page 26: Exploded View
EXPLODED VIEW CABINET AND EXTERIOR COMPONENTS Detail Model: 9121, Single Satellite Brewer SK2652 Rev. - 5/8/13 Tank Assy... - Page 27 PARTS LIST : CABINET AND EXTERIOR COMPONENTS Model 9121: Single Satelite Brewers, Tank Assy Fig No. Part Number Description Application 2I-72390 GROMMET .375 ID TRANSLUCE 2A-74343 TUBE FILL 90 DEGREE D7-73414 SHIELD HI-LIMIT 2T-73312 THERMO HI LIMIT DBL POLE 2C-73415 NUT 6-32 HEX 1.00 LG ALUM...
- Page 28 WIRING DIAGRAM: 9221 DUAL SATELLITE BREWER LEFT RIGHT WARMER SWITCH WARMER SWITCH MODEL VOLTS WATTS AMPS POWER BLUE 9221 120/208-240 4700/6250 23/26.0 50/60 SWITCH BLACK BLACK WHITE ORANGE BLACK 12 GA BLACK LEFT RIGHT (L1) WARMER ELEMENT WARMER ELEMENT WHITE WHITE RED 12 GA (L2)
- Page 29 WIRING DIAGRAM: 9121 SINGLE SATELLITE BREWER WARMER SWITCH MODEL VOLTS WATTS AMPS 120/240 50/60 9121 3150 13.7 POWER SWITCH BLACK (L1) WARMER ELEMENT WHITE (L2) TERMINAL BLOCK GROUND INLET VALVE HTG ELEMENT HTG ELEMENT LEFT RIGHT 120V 1500W 120V 1500W...
- Page 30 WIRING DIAGRAM: 9121-230V SINGLE SATELLITE BREWER POWER HEATER SWITCH LIMIT DPST SWITCH SWITCH 230V STOP BREW SWITCH HTG ELEMENT RIGHT WARMER 120V 1500W SWITCH INLET TIMER VALVE THERMOSTAT WIRE L2 LOAD BREW LIQUID LIGHT LEVEL PROBE YELLOW 1 1/2G CONTACTOR...
- Page 31 NOTES...
- Page 32 10 Sunnen Drive, St. Louis, MO 63143 telephone: 314-678-6336 fax: 314-781-2714 www.wellsbloomfield.com...
