Canon PIXMA iP5200R Service Manual page 34

Note:
- If plain paper other than the 6 kinds specified in the table in step 1) is used, select the
Pattern No. 0 (zero), leave the Resume/Cancel button untouched, and press the Power
button.
- Each time the Resume/Cancel button is pressed, the Alarm and Power LEDs light
alternately, alarm in orange and Power in green.
- If the Resume/Cancel button is pressed 3 times or more, then the Power button is pressed,
the printer returns to the service mode menu selection.

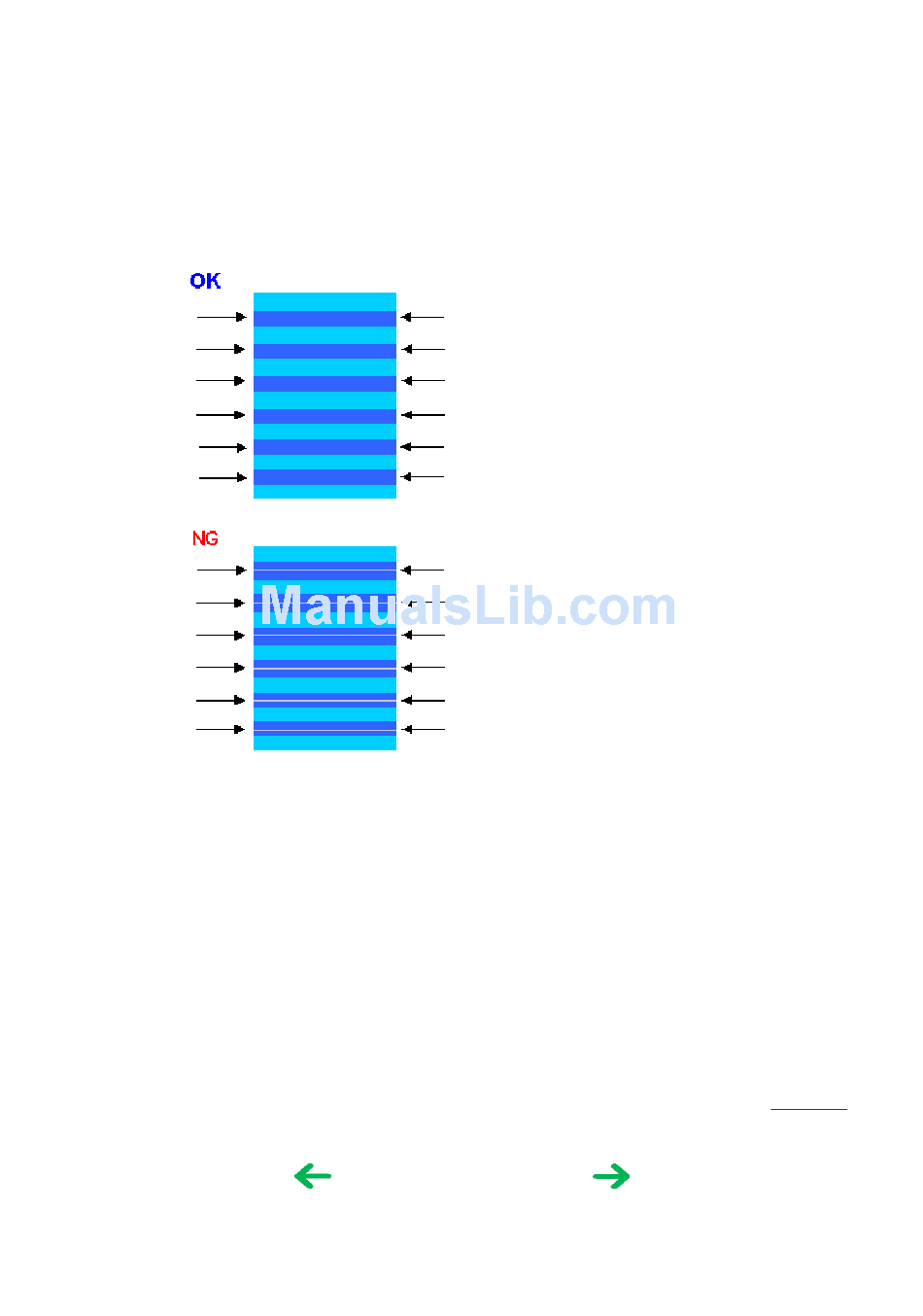

NG : streaks or lines (white or black)
4) The LF correction value is written to the EEPROM, and the printer returns to the service mode menu
selection.
Note: The LF correction value (0, 1, or 2) can be confirmed in service test print or EEPROM
information print.
Download Service Manual And Resetter Printer at http://printer1.blogspot.com
<Part 1: 3. REPAIR, 3-3 (3) to (5)>
1-29
