Canon Pixma iP5000 Series Quick Start Manual

Canon photo printer ip5000 quick start guide.
Hide thumbs

Advertisement

Photo Printer
Series

Quick Start Guide

Advertisement

Table of Contents

   Related Manuals for Canon Pixma iP5000 Series

   Summary of Contents for Canon Pixma iP5000 Series

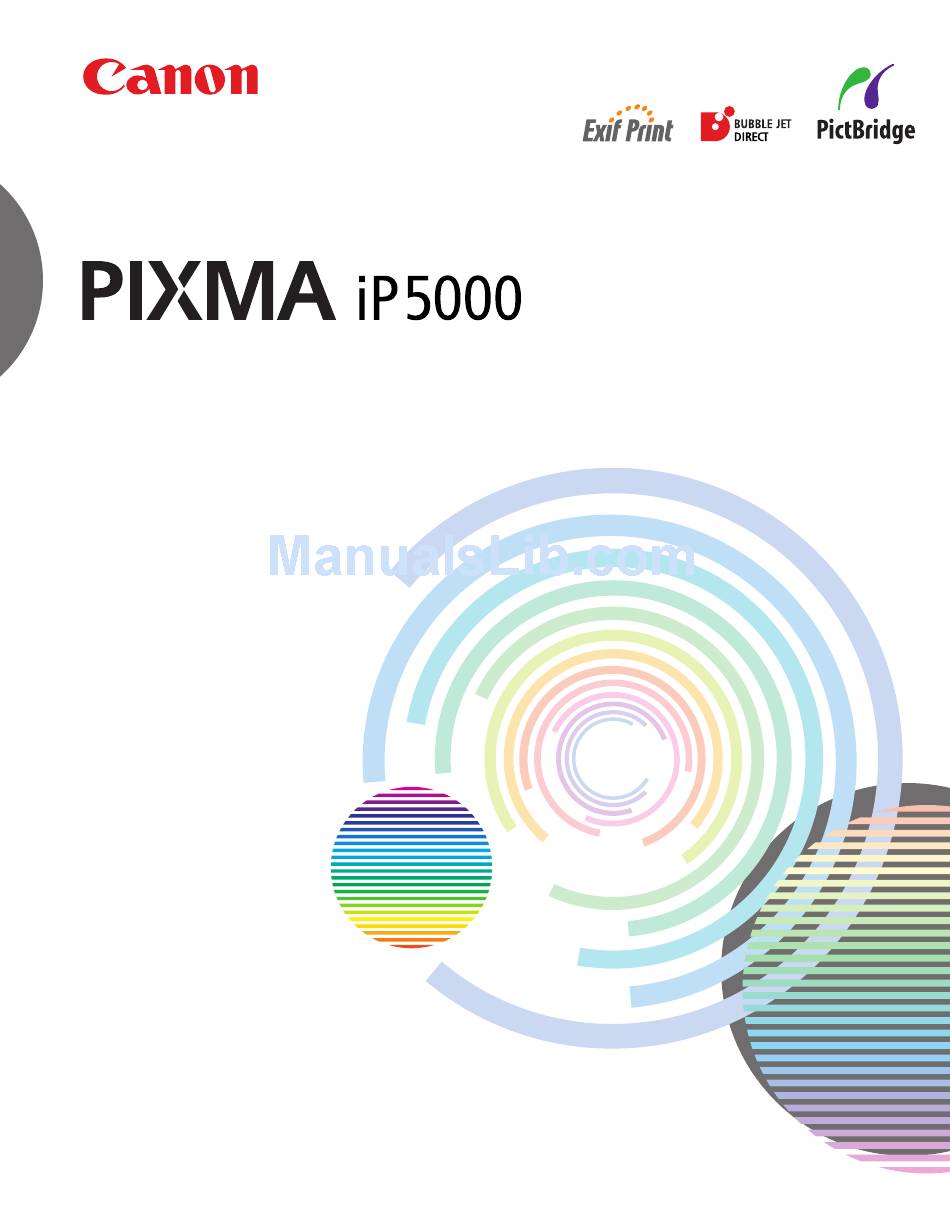

  • Page 1: Quick Start Guide

    Photo Printer Series Quick Start Guide...
  • Page 2: Getting Help From Canon

    CarePAK offers toll-free Canon technical support and includes Canon’s superb InstantExchange product replacement program. For further information about extending your Canon service and support, call (1-800-385-2155), or visit our web site at www.canonesp.com. CarePAK must be purchased during your product’s warranty period.
  • Page 3 Photo Printer Quick Start Guide...
  • Page 4 This manual is copyrighted by Canon U.S.A., Inc. with all rights reserved. Under the copyright laws, this manual may not be reproduced in any form, in whole or in part, without the prior written consent of Canon U.S.A., Inc. © 2004 Canon U.S.A., Inc.
  • Page 5: Table Of Contents

    CANON U.S.A., INC. LIMITED WARRANTY --- (USA Only)....... . .
  • Page 6: Basic Printing

    Basic Printing Basic Printing Quick Start Guide This to use them. For more information, view the iP5000 Software & User’s Guide CD-ROM driver interface: While in the printer’s properties window, press the F1 key, or click ? in the upper right corner.
  • Page 7: Loading Paper

    • Damp paper • Excessively thin paper (less than 64 gsm or 17 lb) • Excessively thick paper* (more than 105 gsm or 28 lb) * non-Canon branded paper • Picture postcards • Postcards affixed with photos or stickers • Envelopes with double flaps •...
  • Page 8: Using The Sheet Feeder And The Cassette

    Basic Printing Using the Sheet Feeder and the Cassette You can load paper in both the Sheet Feeder and Cassette. Loading paper in the Sheet Feeder is easy, and is convenient if you frequently switch to and print on various sizes or types of paper. Loading paper in the Cassette allows you to print without reloading paper for each job.
  • Page 9 Loading Plain Paper in the Sheet Feeder For detailed information on the specialty media Canon provides for use with its various printers, refer to See “Printing Media” in the how to load envelopes and specialty media into the printer. Flatten the four corners of the paper before loading it.
  • Page 10 You can use general copy paper or Canon’s Super White Paper SW-201. You can load up to 150 sheets of plain paper (64 gsm or 17 lb, 13 mm or 0.52 inches in height) in the Sheet Feeder. However, do not stack more than 50 sheets in the Paper Output Tray.
  • Page 11 Loading 4" x 6"-Sized Paper in the Sheet Feeder (2) Slide the paper guide against the left side of the paper stack. (4) Select 4" x 6" from Paper Size in the printer driver. For a detailed description of the printer driver settings, refer to Windows”...
  • Page 12: Loading Plain Paper In The Cassette

    Basic Printing Loading Plain Paper in the Cassette For detailed information on the specialty media Canon provides for use with its various printers, refer to See “Printing Media” in the how to load envelopes and specialty media into the printer.
  • Page 13 Load the paper. You can use general copy paper or Canon’s Super White Paper SW-201. You can load up to 150 sheets of plain paper (64 gsm or 17 lb, 13 mm or 0.52 inches in height) in the Cassette. However, do not stack more than 50 sheets in the Paper Output Tray.
  • Page 14 Basic Printing Insert the Cassette into the printer. If the Cassette has been extended to accommodate paper sizes larger than 5" x 7", the front edge of the cassette will extend beyond the front of the printer. (1) Set the Cover on the Cassette.
  • Page 15 Prepare the Paper Output Tray. You can also select the paper source with the printer driver. For details, refer to “Changing the Paper Source” in the Basic Printing (1) 1 Push the upper center ) of the Front Cover to open the Paper Output Tray.
  • Page 16 Basic Printing Loading 4" x 6"-Sized Paper in the Cassette Do not leave photo paper, such as Photo Paper Pro, in the Cassette for a long time. This may cause paper discoloration due to natural aging. (5) Select 4" x 6" from Paper Size in the printer driver. For a detailed description of the printer driver settings, refer to Windows”...
  • Page 17: Using Specialty Media

    Using Specialty Media Canon recommends that you use genuine Canon media to ensure optimal print quality. Photo Quality Media • Photo Paper Pro • Photo Paper Plus Glossy • Photo Paper Plus Double Sided • Photo Paper Plus Semi-gloss • Matte Photo Paper •...
  • Page 18 Basic Printing Canon Specialty Media Media Type Super White Paper Up to 13 mm or Photo Paper Pro Photo Paper Plus Glossy Photo Paper Plus Double Sided Photo Paper Plus Semi-gloss Matte Photo Paper Up to 10 sheets Glossy Photo Paper Letter: up to 10...
  • Page 19: Printing With Windows

    Printing with Windows The menu screens and dialog boxes that appear may vary, depending on the software application you are using. The steps described in this section are for printing in Windows XP. Turn on the printer. “Turning on the Printer” Load the paper in the printer.
  • Page 20 Basic Printing Open the printer properties dialog box. (1) Select Print from the application software’s File menu. The Print dialog box opens. Specify the required settings. (2) Ensure that your printer is selected. (3) Click Preferences or Properties. (1) Click Media Type to select the type of media loaded in the printer.
  • Page 21 CANCEL button on the printer. “Canceling Printing” on page 21. Click Cancel Printing on BJ Status Monitor to stop printing. To show BJ Status Monitor, click Canon PIXMA iP5000 on the taskbar. BJ Status Monitor opens automatically when a printer error occurs.
  • Page 22: Printing With Macintosh

    Basic Printing Printing with Macintosh The menu screens and dialog boxes that appear may vary, depending on the software application you are using. The steps described in this section are for printing in Mac OS X v.10.3.x. Turn on the printer. “Turning on the Printer”...
  • Page 23 Select Paper Size. (1) Select Page Setup from the application software’s File menu. The Page Setup dialog box opens. Specify the required settings. (1) Select Print from the application software’s File menu. The Print dialog box opens. Basic Printing (2) Select your printer from Format for.
  • Page 24 Basic Printing This section describes the procedure for selecting the paper source with the Paper Feed Switch on the printer. For a detailed description of the Paper Source settings, refer to “Changing the User’s Guide Paper Source” in the When you select the print mode appropriate to your document from Print Mode, the document will be printed in color and at a print quality suited to the characteristics of the Media Type you have selected.
  • Page 25: Canceling Printing

    Print the document. (1) Click Print. Double-clicking the name of your printer in the Printer list displays a dialog that prompts you to confirm the status of the print job(s). To cancel a job in progress, select the desired document, then click Delete.
  • Page 26: Advanced Printing

    Canon Bubble Jet Direct allows you to print photos from Canon Bubble Jet Direct compatible (PictBridge incompatible) digital camera or digital video camcorder without a computer, by simply connecting the digital camera or digital camcorder to this printer.
  • Page 27: Connecting To A Digital Camera

    Connecting to a Digital Camera Do not connect any equipment other than the camera ready for PictBridge or Canon Bubble Jet Direct to the Direct Print Port of the printer. If you do so, electric shock, fire, or damage to the camera could result.
  • Page 28 Either of the following icons will display on the LCD display of the digital camera when the printer is correctly connected. A PictBridge-compliant digital camera. A Canon Bubble Jet Direct compatible digital camera. Direct Printing from PictBridge-compatible Digital Cameras Default Camera Settings...
  • Page 29 Paper type for this printer. To use Photo Paper Pro, select Fast Photo from Paper type. If using a Canon PictBridge-compatible camera, you can select 5" x 7" from Paper size. The following sizes and types of paper can be loaded in the printer by selecting options from Paper size and Paper type.
  • Page 30 Advanced Printing About “Image optimize” If you use a Canon PictBridge-compatible camera, you can select “VIVID”, “NR”, or “VIVID+NR.” (Note that these options cannot be selected for some models.) When “VIVID” is selected, green and blue portions of photos are printed vividly.
  • Page 31: Printing Photographs Directly From A Canon Bubble Jet Direct Compatible Digital Camera

    Printing Photographs Directly from a Canon Bubble Jet Direct Compatible Digital Camera Media Types for Digital Camera When you connect a digital camera, you can use the following media: Digital Camera Setting Media Type Card #1 Photo Paper Pro 4" x 6" / 101.6 x 152.4 mm Card #2 Photo Paper Plus Glossy 4"...
  • Page 32: Accessing The Printer Driver

    Advanced Printing Accessing the Printer Driver The printer properties dialog box can be opened from either within an application, or directly from the Windows Start menu. This manual refers to Windows XP operation. The operations may vary depending on your operating system. Opening the Printer Properties Dialog Box from Your Application Program Depending on your application program, the command and menu names...
  • Page 33: Adjusting The Print Quality For Photographs

    Two important factors control the quality and output of your printed images: Paper and Ink Using recommended Canon paper, specialty media, and inks for printing photographs can significantly improve the quality of your printouts. See inside the back cover for a list of Canon Specialty Papers and ink tanks for this printer.
  • Page 34 Advanced Printing To manually adjust Print Quality settings: Open the printer properties dialog box. “Opening the Printer Properties Dialog Box from Your Application Program” on page 28. On the Main tab, select Custom from Print Quality, then click Set to open the Set Print Quality dialog box.
  • Page 35 Move the slide bar to adjust the print quality. When the process is complete, click Print. To automatically optimize the image: Photo Optimizer PRO automatically adjusts the photographs taken with a digital camera. Use this feature to compensate for unsatisfactory color balance and over- or under-exposure before printing.
  • Page 36 Advanced Printing Select the Photo Optimizer PRO check box. Click OK. To use Vivid Photo option: Vivid Photo intensifies background colors such as fields, trees, oceans and skies, while maintaining natural skin tones in the images. In Windows Me or Windows 98 If Background Printing has been disabled, the Vivid Photo function is not available.
  • Page 37 To use Vivid Photo, select the Vivid Photo check box under Special Effects. To reduce noise from images taken with a digital camera: The Photo Noise Reduction function reduces noise from blue portions such as the sky, and dark portions of the images taken with your digital camera. In Windows Me or Windows 98 If Background Printing has been disabled, the Photo Noise Reduction function is not available.
  • Page 38 Advanced Printing To use Photo Noise Reduction, select the Photo Noise Reduction check box under Special Effects.
  • Page 39 Saving and Recalling Printer Driver Settings When you change printer driver settings for a specific print job, such as printing black and white photos, or printing documents with a special background, you can save and name these settings for future use on similar print jobs. Open the printer properties dialog box.
  • Page 40 Advanced Printing You can retrieve or delete the print settings profile at any time. Open the Print dialog box. “Printing with Macintosh” Set all necessary items. Register new printer driver settings. The Save Preset dialog box opens. Click OK. This registers your printer driver settings. You can retrieve or change the saved driver settings at any time.
  • Page 41: Using The Bundled Software

    Canon BJ Printers support ExifPrint and use a suitable photo application to read the camera data precisely, producing optimal prints.
  • Page 42: Printing Borderless Photographs

    Advanced Printing Printing Borderless Photographs This section describes how to print from Easy-PhotoPrint using the Borderless Printing mode. Easy-PhotoPrint is included on your Media Types Suitable for Borderless Printing The following media are compatible with Borderless Printing: - Photo Paper Pro (Letter and 4" x 6") - Photo Paper Plus Glossy (Letter, 5"...
  • Page 43 (1) Store the photographs you took with your digital camera in a folder on the hard disk. (2) In Windows, click Start, select All Programs (or Programs), Canon Utilities, Easy- PhotoPrint, and Easy-PhotoPrint to open the Easy-PhotoPrint. In Macintosh, double-click the hard disk icon, the Applications folder, the Easy- PhotoPrint folder, and then double-click the Easy-PhotoPrint icon.
  • Page 44 Advanced Printing (2) Click the [ ] [ ] buttons on the thumbnail of the photograph you want to print to specify the number of copies. Clicking Correct/Enhance corrects photographs. For example, using this feature, you can correct the red-eye caused by the camera’s flash or smooth and beatify the facial skin.
  • Page 45 Select the layout and print the photograph. Advanced Printing (1) Click the Layout/Print tab. (2) Select Borderless (full). (3) In Windows, click Print. In Macintosh, click Print. When the confirmation message is displayed, click OK. And then, click Print in the Print dialog box.
  • Page 46: Printing Maintenance

    Printing Maintenance Printing Maintenance Replacing an Ink Tank When replacing an ink tank, check the model number very carefully. The printer will not print properly if the wrong ink tank is used, or installed in the incorrect position. With your printer, ink tanks must be installed in the order of left to right as indicated below. Black: BCI-6BK Black: BCI-3eBK Yellow: BCI-6Y...
  • Page 47: Knowing When To Replace Ink Tank

    Knowing When to Replace Ink Tank If an ink tank needs replacing, the POWER lamp will change from green to orange and flash four times, as soon as printing begins. It is important to quickly identify the empty tank using the BJ Status Monitor (Windows) or error messages (Macintosh) and replace it.
  • Page 48 Printing Maintenance The following message is displayed when ink tank is empty. Printing will resume as soon as ink tank is replaced and the Inner Cover and the Top Cover are closed. Checking the ink level (1) Double-click the hard disk icon where the printer driver was installed, the Applications folder, and then the Utilities folder.
  • Page 49: Replacing Ink Tanks

    Replacing Ink Tanks When an ink tank runs out of ink, replace it using the following steps. Ensure that the printer is on, and then push the upper center ( Front Cover to open the Paper Output Tray. Open the Top Cover, and pull down the Inner Cover forward to open. The Print Head Holder moves to the center.
  • Page 50 Printing Maintenance Prepare a replacement tank. (1) Unpack the new ink tank and pull off the orange tape. Then, remove the film. (2) Remove the orange protective cap from the bottom of the ink tank and discard it. Be sure to remove the clear film from the ink tank in the exact order shown in step 4-(1), as failure to follow this step may cause the ink to leak and stain your clothes and hands.
  • Page 51 Insert the ink tank. (1) Insert the ink tank into the Print Head. (2) Press on the Close the Inner Cover and the Top Cover. The Print Head Holder moves to the right. The ink tank installation process is now complete.
  • Page 52: When Printing Becomes Faint Or Colors Are Incorrect

    Printing Maintenance When Printing Becomes Faint or Colors are Incorrect When printing becomes faint or colors are incorrect, even if ink remains in the ink tanks, the Print Head nozzles are probably clogged. Follow the procedures below to clean the nozzles. If the ruled lines are shifted after running the print head maintenance, align the Print Head.
  • Page 53: Printing The Nozzle Check Pattern

    Printing the Nozzle Check Pattern Print the nozzle check pattern to determine whether the ink ejects properly from the Print Head nozzles. Use this function when printed results are blurred or the color is incorrect. Ensure that the Inner Cover is closed. Printing the Nozzle Check Pattern Without a Computer Nozzle check pattern printing can also be executed from the printer itself.
  • Page 54 Printing Maintenance Print the Nozzle Check Pattern. (3) Read the message and click Print Check Pattern. The nozzle check pattern will be printed. Clicking Initial Check Items displays the items to be checked before cleaning. (4) When the confirmation message is displayed, click OK. (5) Ensure that the pattern is printed properly.
  • Page 55 Open the BJ Printer Utility dialog box. (1) Double-click the hard disk icon where the printer driver was installed, the Applications folder, and then the Utilities folder. (2) Double-click the Print Setup Utility icon. When using Mac OS X v.10.2, double-click the Print Center icon. (3) Select the name of your printer from the Name list and click Utility.
  • Page 56: Examining The Nozzle Check Pattern

    Printing Maintenance Examining the Nozzle Check Pattern The nozzle check pattern should appear as follows when ink is discharged properly. Examine the nozzle check pattern output by the printer. The nozzle check pattern will not be printed correctly if there is not enough ink.
  • Page 57: Print Head Cleaning

    Print Head Cleaning Clean the Print Head if missing lines or white stripes appear in the nozzle check pattern. Note that cleaning the Print Head causes waste ink to be absorbed in the waste ink absorber. Cleaning the Print Head consumes ink, so perform Print Head Cleaning only when necessary.
  • Page 58 Printing Maintenance Print Head Cleaning starts when the POWER lamp starts blinking. Do not perform any other operations until the Print Head Cleaning finishes. This takes about 30 to 40 seconds. Clicking Initial Check Items displays the items to be checked before cleaning.
  • Page 59 Open the BJ Printer Utility dialog box. (1) Double-click the hard disk icon where the printer driver was installed, the Applications folder, and then the Utilities folder. (2) Double-click the Printer Setup Utility icon. When using Mac OS X v.10.2, double-click the Print Center icon. (3) Select the name of your printer from the Name list and click Utility.
  • Page 60 Printing Maintenance (5) Read the message and click Print Check Pattern to print the nozzle check pattern. The nozzle check pattern is printed. Check the Print Head condition with the printed nozzle check pattern. “Printing the Nozzle Check Pattern” The nozzle check pattern will not be printed correctly if there is not enough ink.
  • Page 61: Print Head Deep Cleaning

    Print Head Deep Cleaning If print quality does not improve by standard Print Head Cleaning, try Print Head Deep Cleaning, which is a more powerful process. Note that cleaning the Print Head causes waste ink to be absorbed in the waste ink absorber. Print Head Deep Cleaning consumes more ink than standard Print Head Cleaning, so perform this procedure only when necessary.
  • Page 62 Printing Maintenance Print Head Deep Cleaning starts when the POWER lamp starts blinking. Do not perform any other operation until the Print Head Deep Cleaning finishes. This takes about one minute. Clicking Initial Check Items displays the items to be checked before cleaning.
  • Page 63 Start Print Head Deep Cleaning. Print Head Deep Cleaning starts when the POWER lamp starts blinking. Do not perform any other operation until the Print Head Deep Cleaning finishes. This takes about one minute. Clicking Initial Check Items displays the items to be checked before cleaning.
  • Page 64 Printing Maintenance Print the nozzle check pattern to check the Print Head condition. “Printing the Nozzle Check Pattern” If a particular color is not printed properly, replace the ink tank of that color. See “Replacing an Ink Tank” If the print head nozzles are still not clean, open the Top Cover and ensure that there are sufficient ink levels in all ink tanks and turn off the printer.
  • Page 65: Aligning The Print Head

    Aligning the Print Head This operation must be carried out when using the printer for the first time. Aligning the Print Head positions allows you to print without shifts in the color registration. Print head alignment is performed either automatically or manually. This section deals with automatic Print Head alignment only.
  • Page 66 Printing Maintenance If a message warning you not to perform other operations is displayed, click Check the printed pattern. If the pattern is printed as shown below, the Print Head is aligned automatically. The printer is now ready to use. If the pattern is not printed successfully, open the Top Cover and Inner Cover, and ensure that the ink tanks are correctly installed.
  • Page 67 With the printer on, load a sheet of Letter-sized plain paper in the Sheet Feeder. Open the BJ Printer Utility dialog box. (1) Double-click the hard disk icon where the printer driver was installed, the Applications folder, and then the Utilities folder. (2) Double-click the Printer Setup Utility icon.
  • Page 68 Printing Maintenance Check the printed pattern. If the pattern is printed as shown below, the Print Head is aligned automatically. The printer is now ready to use. If the pattern is not printed successfully, open the Top Cover and Inner Cover, and ensure that the ink tanks are correctly installed.
  • Page 69: Troubleshooting

    Troubleshooting This section provides troubleshooting tips for the most common printing problems. Troubleshooting usually falls into one of the following categories. “Cannot Install the Printer Driver” “Print Quality is Poor or Contains Errors” “Troubleshooting Printer Hardware” “Paper Does Not Feed Properly” “Paper Jams”...
  • Page 70: Cannot Install The Printer Driver

    Troubleshooting Cannot Install the Printer Driver Problem Possible Cause Cannot Install the Installation Printer Driver procedure not followed correctly Other applications (including anti-virus software) running in the background Installation does not start automatically when Setup Software & User’s Guide CD- is inserted into the drive Installation CD-...
  • Page 71: Print Quality Is Poor Or Contains Errors

    Print Head nozzles are clogged Paper loaded wrong side up Incorrect paper type Glossy photo paper other than the Canon specialty media is used Print Quality is not set properly Try This Check that the ink tanks are firmly seated in the Print Head and reseat them if necessary.
  • Page 72 Thick paper is used Try This Use High Resolution Paper, Photo Paper Pro or other Canon specialty paper to print images that have high color saturation. Reduce the Intensity setting in the printer driver and try printing again.
  • Page 73: Troubleshooting Printer Hardware

    Troubleshooting Printer Hardware Problem Possible Cause Printer Does Not Print Head has Start or Printer overheated due to Stops During long periods of Print Jobs continuous printing Printing high- resolution photographs and graphics There may be problems with your operating system Incorrect paper source is selected Paper Output Tray is...
  • Page 74 Troubleshooting Problem Possible Cause Cannot Print to Incorrect page size End of Job is selected There is not enough free space on the hard disk The size of the print data is too large Use reduced printing is not selected when performing automatic duplex printing...
  • Page 75: Paper Does Not Feed Properly

    Ensure that paper is loaded correctly. Slide the paper guides against the paper stack, and check to see if the paper is not loaded beyond the Load Limit Mark. See “Loading Paper” on page 3 and “Canon Specialty Media” Troubleshooting Try This on page 14.
  • Page 76: Paper Jams

    Troubleshooting Paper Jams Problem Possible Cause Paper Jams Paper jams in the Paper Output Slot Remove the paper according to the following procedure. 1. Slowly pull the paper out from the Paper Output Slot. • If the paper is jammed in the Sheet Feeder, slowly pull the paper out from the Sheet Feeder.
  • Page 77 Problem Possible Cause Paper Jams Paper jams inside the Transport Unit Remove the paper according to the following procedure. 1. Open the Rear Cover. 2. When you can see the jammed paper, slowly pull the paper out. Be careful not to touch the components inside the printer. If you cannot extract the paper, turn the printer off, and then turn it back on.
  • Page 78 Troubleshooting Problem Possible Cause Paper Jams Paper jams inside the Duplex Transport Section Remove the paper according to the following procedure. 1. Remove the Cassette. If the paper is loaded in the Sheet Feeder, remove the paper from the Sheet Feeder.
  • Page 79: Handling Error Messages

    Handling Error Messages When a printer error occurs, the POWER/ERROR lamp flashes. The number of flashes indicates the type of error that has occurred. Count the flashes and take the appropriate action to correct the error. Number of Possible Cause Flashes Two flashes Printer is out of...
  • Page 80 Troubleshooting Number of Possible Cause Flashes Ten flashes Cannot print on both sides of the page Eleven flashes Automatic print head alignment failed POWER lamp flashes alternately green and orange The size of paper may not be compatible with Automatic Duplex Printing. Pressing the RESUME/CANCEL button will discharge the paper, and restart printing from the front side of the next paper.
  • Page 81: An Error Message Appears On The Screen

    28. 2. Click the Port tab (or the Details tab) to confirm the port settings. A USB port is selected if either USBnnn (Canon PIXMA iP5000) or MPUSBPRNnn (Canon PIXMA iP5000) (where n is a number) is indicated.
  • Page 82 Troubleshooting Problem Possible Cause Printer port error Writing Error/ Output Error/ Communication Error Cannot print with Size of loaded Automatic Duplex paper is incorrect Printing Incorrect paper size is selected Printer is not ready “Error No.: 300” * Printer is not properly connected Specified printer name is not on the...
  • Page 83 Problem Possible Cause Inner Cover is opened while “Error No.: 1856”* printing A specified period of time has elapsed “Error No.: 2001”* without receiving a response from the digital camera/The digital camera or digital video camcorder connected is not compatible with this printer Automatic Print Head alignment...
  • Page 84: Cannot Print Properly From The Digital Camera

    Troubleshooting Cannot Print Properly from the Digital Camera The following are the possible errors that may occur when printing directly from a digital still camera or digital video camcorder*, and the countermeasures to eliminate them. *Hereafter, the digital still camera and digital video camcorder are collectively called a digital camera or camera. Camera Error Message Possible Cause Printer in use...
  • Page 85 Troubleshooting “PictBridge” or Canon “Bubble Jet Direct” compatible digital cameras can be connected to your printer for direct printing. This section describes errors that are indicated on Canon-brand PictBridge- or Bubble Jet Direct-compatible cameras. The error messages and operations may vary depending on the camera you are using.
  • Page 86: Appendix

    When prompted, restart your computer. After the computer restarts, TURN THE PRINTER ON, and select the Apple menu, then Chooser. Click the PIXMA iP5000 icon in the Chooser. Do not click the PIXMA iP5000(SV) icon. Close the Chooser. Register your product at www.registercanon.com to ensure product...
  • Page 87 Appendix To ensure highest quality output, carry out Print Head alignment. Printer Driver Guide for Mac OS 9 Setup Refer to the located on the Software & User’s Guide CD-ROM for instructions on how to align the Print Head.
  • Page 88: User's Guide Table Of Contents

    Appendix User’s Guide Table of Contents User’s Guide Your printer’s electronic , offers detailed information on the following topics. How to Use This Manual How to Read This Manual Safety Precautions Printer Parts and Their Functions Front View Operation Panel Rear View Inside the Printer Using the Sheet Feeder and the Cassette...
  • Page 89: Specifications

    Max Speed (Custom Setting 5): 17 ppm Standard: 11 ppm 203.2 mm max. (8.0 inches) (for Borderless Printing: 215.9 mm / 8.5 inches) Canon extended mode 34 KB Approx. 35 dB (A) (in the highest print quality mode) Temperature: 5 to 35°C (41 to 95°F) Humidity: 10 to 90%RH (no condensation) Temperature: 0 to 40°C (32 to 104°F)
  • Page 90 Based on printing the ISO JIS-SCID No.5 pattern at standard and plain paper mode with Windows XP printer driver Direct Print Port (Connect a iP5000-compatible digital camera or digital video camcorder using the USB cable supplied with the camera.) iP5000-compatible digital cameras and digital video camcorders Card #1 (Photo Paper Pro 4"...
  • Page 91 Letter, Glossy Photo Paper A4/Letter) 5.4 x 8.6 cm/Credit Card (Glossy Photo Paper Card Size) *If using a Canon PictBridge-compatible camera, you can select it. Default (Photo Paper Plus Glossy), Photo (Photo Paper Plus Glossy, Glossy Photo Paper), Fast Photo (Photo Paper Pro)
  • Page 92: Safety Precautions

    Appendix Safety Precautions Please read the safety warnings and cautions provided in this manual to ensure that you use your printer safely. Do not attempt to use printer in any way not described in this manual. You may cause an electric shock, fire or damage the printer if you ignore any of these safety precautions.
  • Page 93 You may cause injury or damage the printer if you ignore any of these safety precautions. Choosing a location Do not install the printer in a location that is unstable or subject to excessive vibration. Do not install the printer in locations that are very humid or dusty, in direct sunlight, outdoors, or close to a heating source.
  • Page 94: Regulatory Information

    Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. Canon U.S.A., Inc. One Canon Plaza...
  • Page 95: Canon U.s.a., Inc. Limited Warranty

    CANON U.S.A., INC. LIMITED WARRANTY --- (USA Only) The limited warranty set forth below is given by Canon U.S.A., Inc. (“Canon USA”) with respect to the new or refurbished Canon-brand product (“Product”) packaged with this limited warranty, when purchased and used in the United States only.
  • Page 96 InstantExchange program, a replacement product will be provided to you prior to your return of the defective product. Since the defective product becomes the property of Canon USA at the time of the exchange, the defective product must be returned in the shipping materials provided.
  • Page 97: Index

    Canceling Print Jobs ... 17 Canceling Printing... 21 Cannot Install the Printer Driver ... 66 Cannot Print Properly from the Digital Camera... 80 CANON U.S.A., INC. LIMITED WARRANTY --- (USA Only).. 91 Cleaning ... 53, 55 Deep Cleaning... 57, 59 Driver saving setting...
  • Page 98 Index Print Head Deep Cleaning ... 57 Print Head Holder ... 45 Print Media to Avoid ... 3 Print Quality ... 17, 29, 67 Print Quality is Poor or Contains Errors ... 67 Printer Driver Setting for Media Type ... 14 Printer Properties dialog box ...
  • Page 99: Ordering Information

    Call 1-800-OK-CANON to locate a dealer near you, or visit the Canon eStore at www.estore.usa.canon.com. ©2004 Canon U.S.A., Inc. Canon is a registered trademark of Canon Inc. All other product and brand names are trademarks of their TAR ® respective owners. As an E partner, Canon U.S.A., Inc., has determined that this product meets the E...
  • Page 100 Quick Start Guide Canon U.S.A., Inc. One Canon Plaza, Lake Success, NY 11042, U.S.A. Canon Inc. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan Canon Canada, Inc. 6390 Dixie Road, Mississauga, Ontario, L5T 1P7, Canada Canon Latin America, Inc. 703 Waterford Way, Suite 400, Miami, FL 33126, U.S.A.
