Note:
- The High Resolution Paper is the most desirable for LF correction printing (Canon HR-101 is
used at the production site), but 6 kinds of plain paper listed in the table above can also be
used in LF correction. If plain paper other than the above is used, select any one of the
paper types in this step, then select Pattern No. 0 (zero) in the step 3) below.
- Each time the Resume/Cancel button is pressed, the Alarm and Power LEDs light
alternately, alarm in orange and Power in green.
- If the Resume/Cancel button is NOT pressed, and only the Power button is pressed, the
printer remains in the LF correction mode.
- If the Resume/Cancel button is pressed 5 times or more, then the Power button is pressed,
the printer returns to the service mode menu selection.
2) The LF correction pattern for the selected paper is printed.

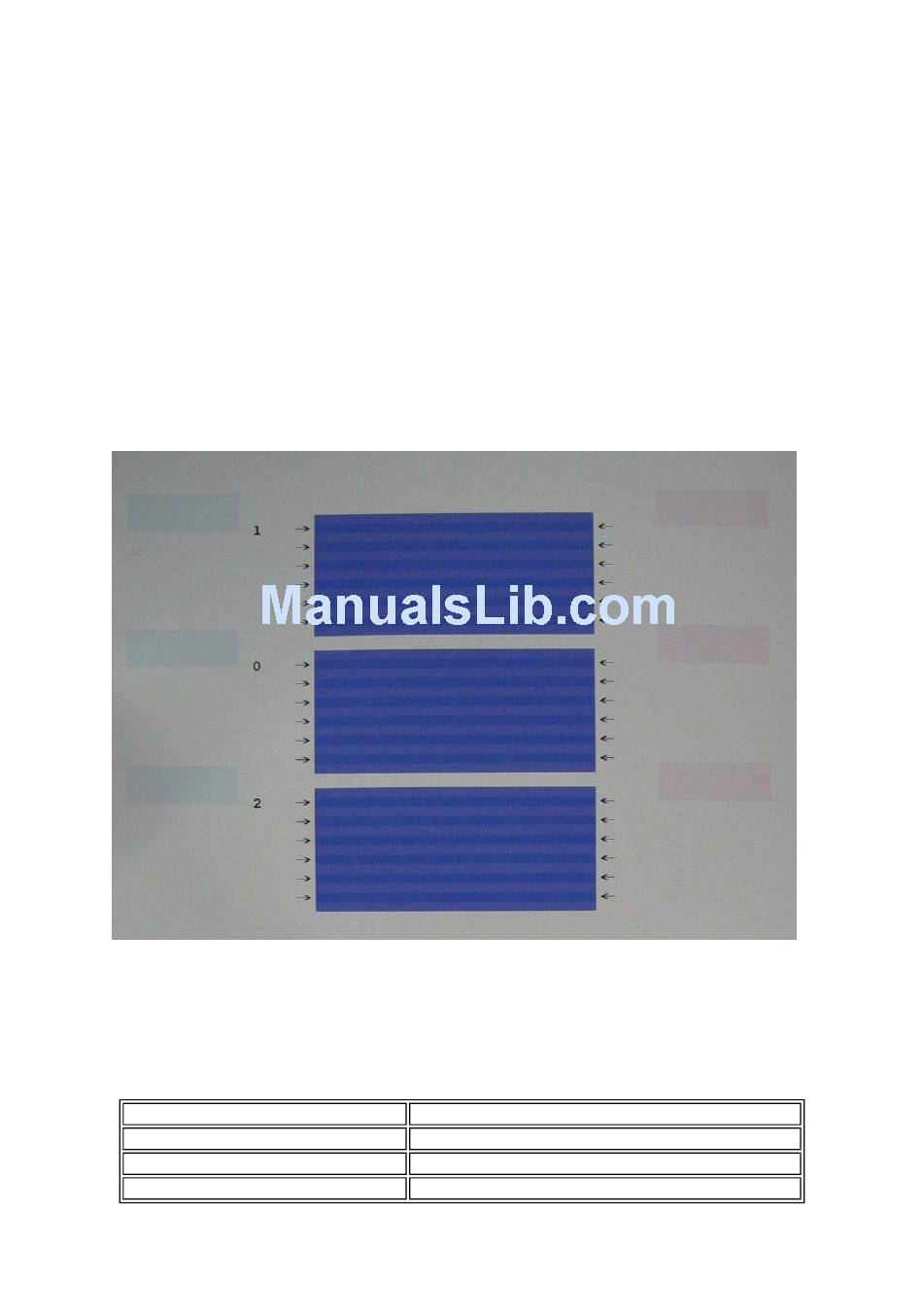

LF correction pattern print sample:
3) In the printout, select the Pattern No. in which streaks or lines (white or black) are the least
noticeable, press the Resume/Cancel button the same number of time(s) as the selected Pattern No.,
then press the Power button.
Pattern No.
1
0
2
Download Service Manual And Resetter Printer at http://printer1.blogspot.com
Number of times the Resume/Cancel button is pressed
1-28
1
0
2
