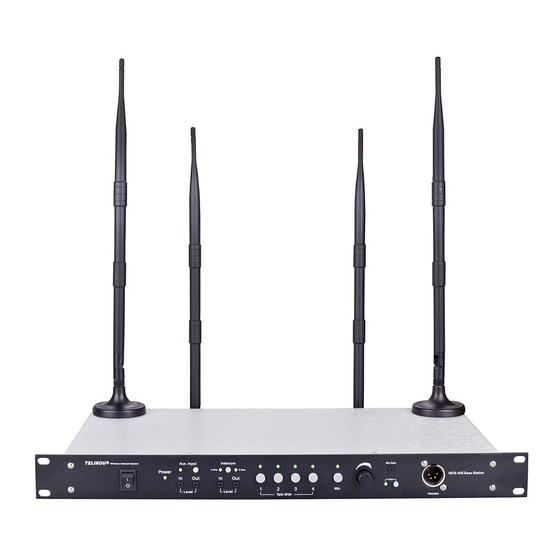

- Page 1 TELIKOU Intercom System MDS-400/BK-2400 Wireless Intercom System Instruction Manual © 2006 TELIKOU Systems All Rights Reserved www.telikou.com...
- Page 2 TELIKOU MDS-400 Wireless Main Station Introduction Thank you for choosing TELIKOU Wireless intercom product. Main Station 1) Front Panel 1. Connector: Headset: Pin1, Pin2: Microphone balance input Pin3, Pin4: Earphone balance output 2. Press Button: Mic: Headset Microphone ON/OFF switch...
- Page 3 TELIKOU MDS-400 Wireless Main Station Mic Gain: Adjust headset Microphone gain Volume: Adjust the headset audio 4. Switch Power: Main station Power switch 5. Indication Led Light Power LED: Power indication LED light. ON: Power on, OFF: Power off 4-wire LED: 4-wire device connector enable LED indicator.
- Page 4 TELIKOU MDS-400 Wireless Main Station 2) Rear Panel 1. Connecting socket 4-wire Connector: 4-wire device connector. (RJ11 and XLR-4F are parallel connected). Pin1/Pin2: Balanced audio input Pin3/Pin4: Balanced audio output 2-wire Connector: 2-wire device connector. (XLR-3F and XLR-3M are loop through)
- Page 5 TELIKOU MDS-400 Wireless Main Station 1.2 Beltpack 1. Press Button MIC: headset microphone switch ▲/▼: volume up and down Switch Power: Power switch VOX: Microphone Voice control function (In battery case) VOX is enabling Off: VOX is disabling DYN: Headset microphone type selecttion (In battery case) Dyn On: Microphone type is set as dynamic.
-
Page 6: Operation
TELIKOU MDS-400 Wireless Main Station MIC LED: 1. Beltpack microphone indication light. Microphone on OFF: Microphone off 2. When beltpack mic is off, if corresponding main station channel is turned on, the beltpack MIC indication light flash fast. 4. Connecter... - Page 7 2.4 Connector 2-wire intercom connector MDS-400 is default with 4-wire channel on. Press “Intercom” button, main station switch to 2- wire channel and cut off 4-wire connector. Meanwhile the 2-wire indication light is on. Main station can communicate full duplex with 2-wire equipment which connected by 2-wire connector at rear panel.
- Page 8 New main station and beltpack have done code matching. But sometimes they need delete code and match code. Hold ”Aux. Audio In” button and turn on main station power. Release ”Aux. Audio In” button after “4-wire” indication light flash once, MDS-400 entered code deleting /code matching mode.
- Page 9 TELIKOU MDS-400 Wireless Main Station Code Deleting Operation After enter code deleting/code matching mode, any channel (CH1, CH2, CH3, CH4) with light on means that channel has matching code information. Be sure to delete code before do the code matching. Press channel button to delete code. If want to clear all 4 channel code once, press intercom button.
- Page 10 TELIKOU MDS-400 Wireless Main Station Low Battery Indication BK-2400 uses 3xAA size normal or chargeable batteries. If battery voltage is lower than 3.45V, low battery indication lights red, remind change the battery in time. MIC button and MIC LED Turn on microphone, the green indication light is on. Indicates beltpack and main station is on standby status.
- Page 11 TELIKOU MDS-400 Wireless Main Station can be put where beltpack can see it. 1#, 2# beltpack are same. They have no order to use with code matching. 3#, 4# beltpack are same. They have no order to use with code matching.
