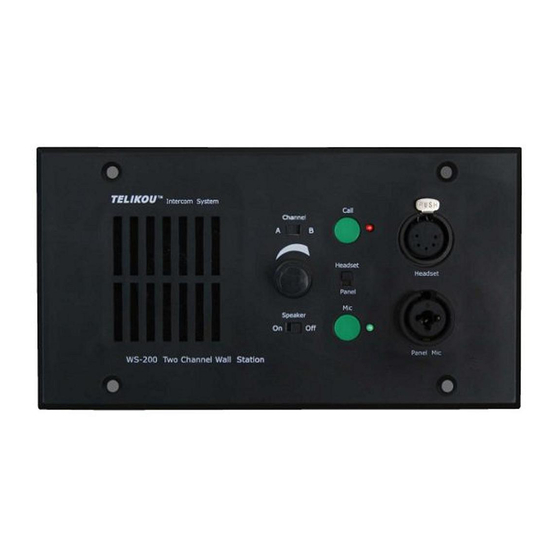

- Page 1 TELIKOU Intercom System WS-200 Two-Channel Recessed Speaker Station Instruction Manual © 2006 TELIKOU Systems All Rights Reserved...
- Page 2 TELIKOU WS-200 Two-Channel Recessed Speaker Station I. Introduction Thank you for choosing TELIKOU intercom product. The WS-200 Two-channel recessed main station suitable for the situation which needs the equipments mounted on the wall. This system adopts wired connection, and has following features, free of external emission interference, stable and reliable performance, flexible configuration, full-duplex communication, clear and loud communication sound, easy operation, and strong noise resistance.
- Page 3 TELIKOU WS-200 Two-Channel Recessed Speaker Station 1. Headset connector 4-pin XLR Male or 5-pin XLR female connector EARPHONE: Dynamic 50-2000 ohm MICROPHONE: Dynamic 100-600 ohm The wiring of headset is as follows: Pin 1--Mic common Pin 2--Mic hot Pin 3--headphone common Pin 4--headphone hot Pin 5—Null...
- Page 4 Press microphone button again, the microphone and LED light will be turned off. When WS-200 is connected to any stranded TELIKOU main station, this microphone switch button can be turned off by RMK function on main station.
- Page 5 The switch is at ‘ON’, channel A and channel B are linked. The Channel Select Switch is unusable. 13. Sidetone zero-adjusting The WS-200 uses full-duplex audio (the same as a conventional telephone line) in which the talk and listen audio are sent and received on the same line. Thus, when you talk on a channel, you will also hear your own voice back in the speaker or headphones.
- Page 6 III. Installation and cable 1. Installation A hole of size 210mm wide, 114mm high and 54mm deep is need for the installation of WS-200. Four 5mm fix holes are set evenly. The distance between any two holes is 144mm on width direction and 92mm on height direction.
- Page 7 B). Cable connection The standard TELIKOU intercom cable is connected with a pair of 3-pin XLR connectors, one male and one female. If longer cable is required, you can connect several cables together with head-end method.
- Page 8 TELIKOU WS-200 Two-Channel Recessed Speaker Station Cause 2: Sidetone null control at this station or a remote station is not adjusted correctly Solution 2: Adjust. Refer to the procedure in the Front Panel section of this manual. Cause 3: Channel unterminated.
- Page 9 TELIKOU WS-200 Two-Channel Recessed Speaker Station Distortion: <0.1% (1000Hz) Gain from line to output: +31dB BANDWIDTH: 200Hz-800Hz ±2dB SIGNAL-TO-NOISE: >72dB SIDETONE: Adjustable range: >32dB EARPHONE: Dynamic 50-2000 ohm MICROPHONE: Dynamic 100-600 ohm CONNECTOR: A) Panel Mic connector: ø6.35mm/XLR-3F Pin 1 -- Mic common...
