Telikou IP-1X Instruction Manual

Ip interface

Table of Contents

Download this manual

Intercom System

TELIKOU

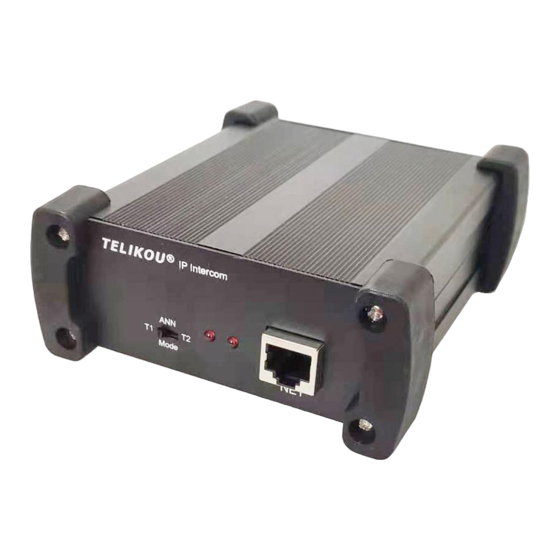

IP-1X IP Interface

www.telikou.com

While TELIKOU makes every attempt to maintain the accuracy of the information

contained in its product manuals, that information is subject to change without notice

Table of Contents

Need help?

Do you have a question about the IP-1X and is the answer not in the manual?

Page 1 Intercom System TELIKOU ® IP-1X IP Interface Instruction Manual © TELIKOU Systems All Rights Reserved www.telikou.com While TELIKOU makes every attempt to maintain the accuracy of the information contained in its product manuals, that information is subject to change without notice...
Page 2 We are standing by to assist you. IP-1X is a IP interface for intercom system. It is generally used in pairs. IP-1X has one 10/100MB POE network connector. It can make your intercom audio signal sent through your local area network.
Page 3 It let IP-1X to listen other IP-1X signal. Note: When IP-1X are used in a pair. One IP-1X is set to T1 or T2, another IP-1X is set to ANN. 4W / 2W Selector Select 4-wire mode or 2-wire mode...
Page 4 TELIKOU IP-1X IP Interface Pin 2 --- 12~30VDC Pin 3 --- Audio III IP Address IP address is preset for IP-1X. It also can be changed by software. IV Technical Specification Input voltage: 12~3VDC Dimensions 125mm(L) x 110mm(W) x 47mm(H) Weight 0.3kg...
