Page 1: Intercom System

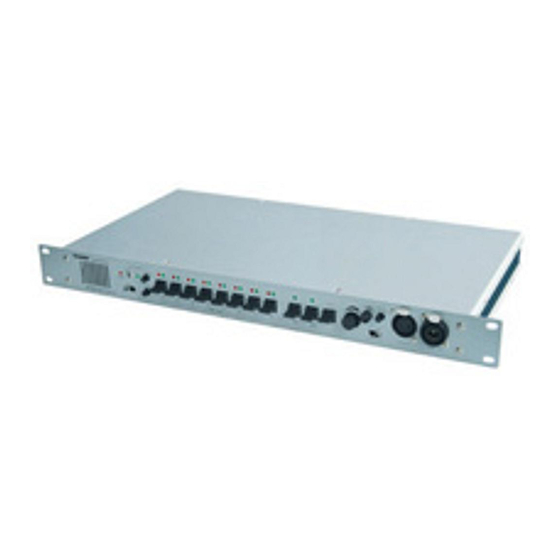

TELIKOU Intercom System MS-800 Main Station Instruction Manual © 2006 TELIKOU Systems All Rights Reserved... -
Page 2: Basic Operations
TELIKOU intercom system. We recommend you reading through this manual to better understand the function of MS-800. If you have any question that does not addressed on this manual, please contact your dealer or call us. We are standing by to assist you. - Page 3 TELIKOU MS-800 Eight-Channel Main Station Front Panel 1. Mic Switch (Mic) Turn up or down the Mic switch handle will send microphone signal intercom line after amplification. When the switch is turned to ON or PTT, the LED (13) above will light.
- Page 4 (RED). This switch is without self-locking function, release and reset. 5. Tone Alert Level Control When MS-800 receives a call signal from beltpack or other stations, an internal buzzer will send a hum to panel speaker and earphone. This knob adjusts the hum level.
- Page 5 TELIKOU MS-800 Eight-Channel Main Station Pin 2--Mic hot Pin 3--headphone common Pin 4--headphone hot Pin 5—Null 9. Panel Mic Gain It is used to increase or decrease the gain for panel microphone to achieve proper microphone output level. It has no effect on the sensitivity of the headset microphone.
- Page 6 When the switch is turned on, the LED (16) at the right side will light. 19. Power LED This green LED lights on when the MS-800 is receiving AC power and the power switch on the rear panel is turned on. 20. Speaker Switch The Speaker Switch turns the front panel speaker on or off.
- Page 7 This is called sidetone. If you are using the MS-800 with a microphone and speaker, sidetone could cause unwanted feedback, since the microphone may pick up your returned voice audio and reamplify it.
-
Page 8: Termination Switch
TELIKOU MS-800 Eight-Channel Main Station 3 Turn on the microphone on sub-station and belt packs one by one, and then adjust the Sidetone to satisfied level. Rear Panel 22. Intercom Line connector 3-pin XLR female socket, eight interfaces corresponding to eight channels; The... - Page 9 Pin 3 --- -Audio 26. Online Connector It is used for online function among TELIKOU working main stations. If there are more than one TELIKOU main stations in system and they are connected by Online Connector, by pressing any RMK button of any main station kills all the microphones of belt packs in system.
- Page 10 B). Cable connection The standard TELIKOU intercom cable is connected with a pair of 3-pin XLR connectors, one male and one female. If longer cable is required, you can connect several cables together with head-end method.
-
Page 11: Troubleshooting
V Troubleshooting Problem: Power LED wink Cause 1: Direct short on the intercom channel Solution 1: Remove all the intercom cables from MS-800. Check each channel one by one, until find the short channel. Cause 2: Overload Solution 2: Decrease the amount of remote stations. - Page 12 WARNING: THIS IS A POTENTIALLY DANGEROUS SITUATION. A SHOCK HAZARD MAY EXIST BETWEEN A REMOTE STATION HEADSET AND GROUND. Problem: Can not turn on the Mic function on all the beltpacks Cause 1: The connection among TELIKOU main stations must go via Online...
-
Page 13: Technical Specification
Solution 1: Check the connection among main stations. Please use Online connector. Cause 2: Some stations are not TELIKOU. So these stations do not have Online connector. Solution 2: Change to TELIKOU main station. Problem: The volume of front panel speaker is too weak... - Page 14 TELIKOU MS-800 Eight-Channel Main Station Gain from line to output: +31dB BANDWIDTH: 200Hz-800Hz ± 2dB SIDETONE: Adjustable range: -40dB, 32dB EARPHONE: Dynamic 50-2000 ohm MICROPHONE: Dynamic 100-600 ohm CONNECTOR: Panel Mic connector: XLR-3F Pin 1 -- Mic common Pin 2 -- Mic hot...
- Page 15 Single power supply 20 beltpacks; dual power supply 40 beltpacks; ENVIRONMENTAL: 0° - 50°C（32°-122°F） DIMENSION: 19” (W) x1.75” (H) x9.48” (D), 482mm x 44.5mm x 241mm WEIGHT: 2.6kg Notice While TELIKOU makes every attempt to change its product manuals, the information is subject to change without notice.
