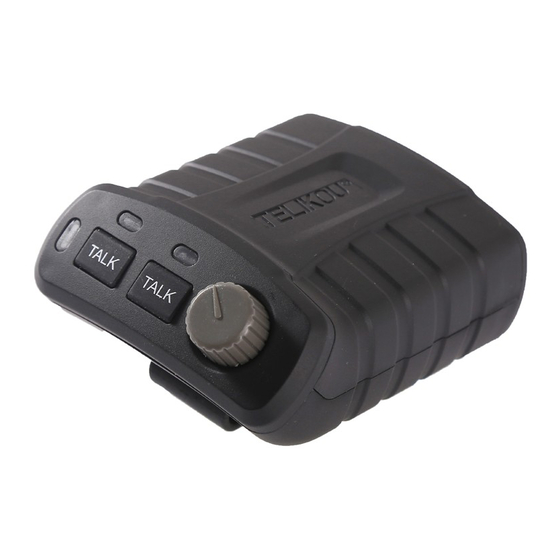

- Page 1 TELIKOU Intercom System BK-104 Belt Pack Instruction Manual © 2016 TELIKOU Systems All Rights Reserved www.telikou.com...
- Page 2 Thank you for choosing TELIKOU intercom product. BK-104 is TELIKOU new design belt pack with plastic case. It is a 4-Wire belt pack with Tally. Mainly to work with TELIKOU FT-800 main station and other 4-wire devices. Basic operation ...
- Page 3 TELIKOU BK-104 4-Wire Belt Pack Pin out configuration as follow: Pin 1 -- Ground Pin 2 -- Microphone + Pin 3 -- Earphone - Pin 4 -- Earphone + Pin 5 -- Null 6. Tally Light connector 3 pin Aviation connector Pin out configuration is as follow: Pin 1 --- Common;...
- Page 4 TELIKOU BK-104 4-Wire Belt Pack 9. Output Level Adjustment This dimmer is used to adjust the output audio level. Specifications Bandwidth: 200Hz-8000Hz ±3dB Earphone：Dynamic，50-2000 ohm Microphone: 1. Dynamic (100-600 ohm) 2. Electret Input Level Adjustment Range: >34dB Audio Input Type: Balanced Audio Output Type: Balanced Connector Input Independence: >10Kohm...
