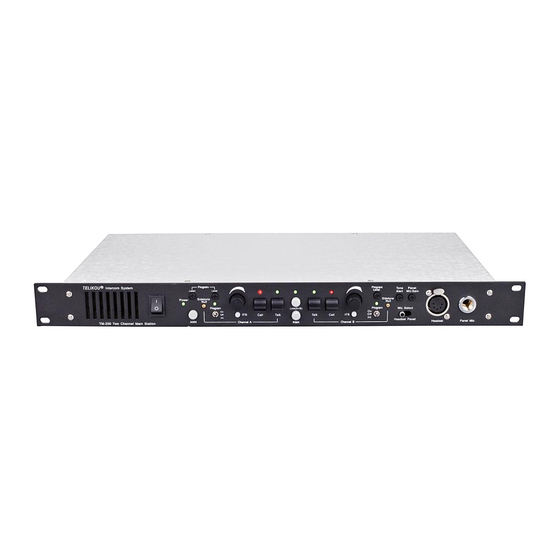

- Page 1 TELIKOU Intercom System TM-200 Main Station Instruction Manual © TELIKOU Systems All Rights Reserved...
- Page 2 TELIKOU TM-200 Eight Channel Main Station I. Introduction Thank you for choosing TELIKOU intercom product. TM-200 main station is suitable for television station, communication center, UB truck, live performance and any other environment which requires communication. We recommend you read through this manual to better understand the functions of TM-200。...
- Page 3 TELIKOU TM-200 Eight Channel Main Station dynamic and electret condenser microphone. Unbalanced input The wiring of XLR-3M is as follow: A) Pin 1 -- Microphone common Pin 2 -- Microphone hot Pin 3 – Null ø6.35mm Plug S --- Microphone Common...
- Page 4 When this button is pressed on, microphone signal is sent to ANN. Out connector which is at rear panel. 10. Power LED This green LED constantly lights on when power supply working properly. If TM-200 has any circuit short problem, it will keep on flashing until the problem has been solved.
- Page 5 13. Sidetone zero-adjusting The TM-200 uses full-duplex audio in which the talk and listen audio are sent and received on the same line. Thus, when you talk on a channel, you will also here your own voice back in the speaker or earphone.
- Page 6 This green LED is lit when the Link (A+B) switch is pressed. 21. Tone Alert Level Control When TM-200 receives external call signal, the internal buzzer will sent a hum to panel speaker and earphone. This knob adjusts the hum level.
- Page 7 TELIKOU TM-200 Eight Channel Main Station please re-adjust panel Mic. gain. 23. Function DIP Setting 5 digits dipper has following settings: DIP1 (Interrupt on Ann): On: Disable microphone signal to intercom channel when announcement is ON. Off: Enable microphone signal to intercom channel when announcement is OFF.
- Page 8 This switch is set to ON position by factory default. Before using, you should set it to ON or OFF position according to the actual connection of intercom line. Note: When TM-200 connects more than ten ends, this switch can be set as OFF. 27. AC Power Connection Input 90V-260V, 50-60Hz AC, and the power consumption is less than 45VA.
- Page 9 V Troubleshooting Problem: Power LED wink Cause 1: Direct short on the intercom channel Solution 1: Remove all the intercom cables from TM-200. Check each channel one by one, until find the short channel. Cause 2: Overload Solution 2: Decrease the amount of remote stations.
- Page 10 TELIKOU TM-200 Eight Channel Main Station Solution 3: Check headset cord Problem: Excessive crosstalk Cause 1: High DC resistance in ground return. Solution 1: Use heavier cable; add additional conductor(s) to ground return. Cause 2: Headset cables are not wired properly or shielded properly.
- Page 11 TELIKOU TM-200 Eight Channel Main Station WEIGHT: 2.6kg...
