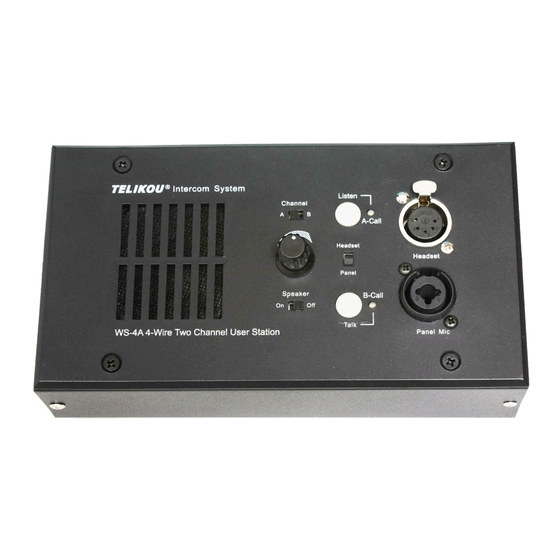

- Page 1 TELIKOU Intercom System WS-4A Two-Channel 4-Wire Speaker Station Instruction Manual © 2006 TELIKOU Systems All Rights Reserved...
- Page 2 TELIKOU WS-4A Two-Channel 4-Wire Speaker Station I. Introduction Thank you for choosing TELIKOU intercom product. The WS-4A Two-channel 4-Wire recessed speaker station suitable for the situation which needs the equipment mounted in the wall. This system adopts wired connection, and has following features, free of external emission...
- Page 3 Pin 3--headphone common Pin 4--headphone hot Pin 5—Null 2. Panel Mic Connector WS-4A(G) uses a double-purpose connector which supports XLR plug or 1/4inch plug unbalanced microphone. The wiring of 3-pin XLR microphone is as follows: Pin 1 -- Mic common...
- Page 4 6. Listen Level Control This control adjust the audio level which heard from headset and speaker. 7. Channel Select Switch WS-4A allows two different 4-wire system connected with station. This switch selects which external system is using. 8. Listen Button PTT: Hold the button and listen, then release the button.
- Page 5 A hole of size 210mm wide, 114mm high and 54mm deep is needed for the installation of WS-4A. Four 5mm fix holes are set evenly. The distance between any two holes is 144mm on width direction and 92mm on height direction.
- Page 6 TELIKOU WS-4A Two-Channel 4-Wire Speaker Station EARPHONE: Dynamic 50-2000 ohm MICROPHONE: Dynamic 100-600 ohm POWER SUPPLY: 12VDC, <0.5A ENVIRONMENTAL: 0° - 70°C（32°-158°F） DIMENSION: 8.27” (W) x4.49” (H) x2.13” (D), 210mm x 114mm x 54mm WEIGHT: 0.56kg...
