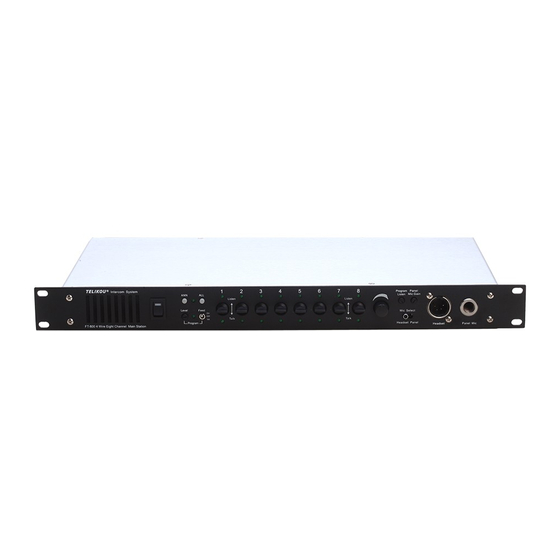

- Page 1 TELIKOU FT-800 (7+1) Channel Main Station TELIKOU Intercom System FT-800 (7+1) Channel Main Station Instruction Manual © TELIKOU Systems All Rights Reserved...
- Page 2 TELIKOU FT-800 (7+1) Channel Main Station I. Introduction Thank you for choosing TELIKOU intercom products. Our BK-100 belt packs have a range of up to 200 meters from the FT-800. Also, The FT800 can be connected RTS™ and ClearCom™ TWS, two-wire systems.
- Page 3 TELIKOU FT-800 (7+1) Channel Main Station EARPHONE: Dynamic 50-2000 ohm MICROPHONE: Dynamic 100-600 ohm Headset wiring: Pin 1—Mic common Pin 2—Mic hot Pin 3—Headphone common Pin 4—Headphone hot XLR-4 male connector doesn’t support LED call light） Pin 5—LED call light（...
- Page 4 LISTEN function off. The LED will illuminate indicating the LISTEN function is active.. 16. PL Indication LED The LED will light when the PL button is pressed. 17. PL Channel Button Self-locking button switch connects the FT-800 to standard 2-wire systems. The LED above will illuminate when activated.
- Page 5 (and any accompanying acoustic feedback) is the lowest. This is the null point. 5. After adjusting FT-800 sidetone, turn off PL switch and adjust the sidetone of other equipment. 19. Panel Mic Gain It is used to adjust the panel microphone gain. It has preset with electret microphone.
- Page 6 TELIKOU FT-800 (7+1) Channel Main Station Pin 3 --- Audio Output -; Pin 4 --- Audio Output +; Pin 5 ---Tally Signal Drive; 23. PL line connector Balanced audio input, XLR-3F connector. The pin out of connectors is as follows: Pin 1 --- Common (Shield) Pin 2 --- 24VDC;...
- Page 7 TELIKOU FT-800 (7+1) Channel Main Station Excessive Headset cables well the RJ-45 plug again 2、 crosstalk connected Check and connect 2、 again Hum or Improper ground. Check repair Buzz ground. 2. Inductive pickup caused by close proximity 2. Relocate the offending to power lines or transformers.
