- Page 1 TELIKOU Intercom System BK-101 Belt Pack Instruction Manual © 2006 TELIKOU Systems All Rights Reserved www.telikou.com...
- Page 2 Quick start 1. Connect BK-101 belt pack to a 2-wire intercom main station or belt pack by XLR-3 cable. If belt pack receives DC power, the red Power LED will light. 2. Turn volume control knob to the end by anticlockwise rotation, then plug in the headset.

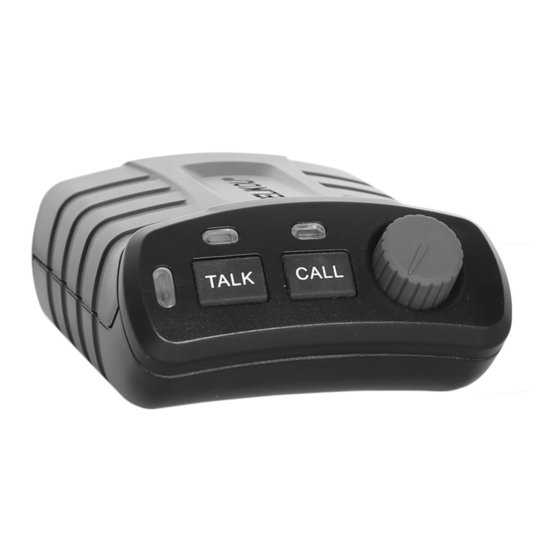

- Page 3 3. Volume Control This control is used to adjust the volume level which heard from connected headset. 4. Power LED A Red LED lights if BK-101 is powered. 5. TALK LED A green LED indicator is controlled by TALK button..
- Page 4 TELIKOU BK-101 Belt Pack 8. Intercom cable connectors A pair of internal parallel connected XLR-3 connectors is set for loop through connection of the intercom station. Pin out configuration as follow: Pin 1--Common Pin 2--DC supply（15-30V） Pin 3--Audio signal 9. 3.5mm Headset Connector 3.5mm jack headset connector.
-
Page 5: Specifications
TELIKOU BK-101 Belt Pack the voice heard from headset is minimal. 4. Turn off the talk button. Troubleshooting Problem: Listen level is too high or too low Cause 1: More than one Terminal in the system or non Terminal Solution 1: Check every channel, each channel must only has one Terminal.
