- Page 1 TELIKOU Intercom System BK-501 Belt Pack Instruction Manual © 2006 TELIKOU Systems All Rights Reserved www.telikou.com...
- Page 2 Quick start 1. Connect the BK-501 belt pack to an intercom main station by XLR-3 cable. If belt pack receives DC power, the Power LED will light. 2. Turn volume control knob to the end by anticlockwise rotation, then plug in the headset.

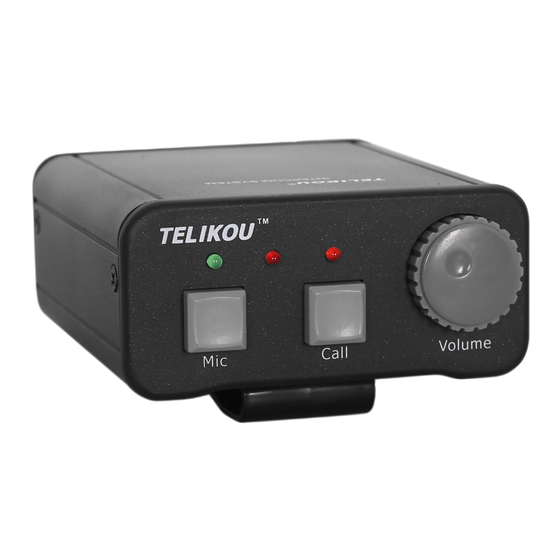

- Page 3 TELIKOU BK-501 Belt Pack Basic operation 1. Talk Button 1. Mic Button Mic button is a momentary button. Holding the Mic button turns on the microphone of connected headset and the microphone indication LED. 2. Call Button Pressing call button will send a call signal to the intercom system. And red LED indicator above will light.
- Page 4 Solution 3: Check headset cord Problem: Can not turn on the Mic function Cause 1: The connection among TELIKOU main stations must go via Online connector on rear panel. The Online connector of this station connected to the Intercom Line connector of another station.
- Page 5 TELIKOU BK-501 Belt Pack 2. Headphone Amplifier (From Line to Load) Load impedance: 50-600 ohm Voltage Gain: 31±3dB Harmonic Distortion: <0.1 %( 1000Hz) Bandwidth: 200Hz-8000Hz ±2dB 3. Others SNR: >72dB Current: <120mA Power Range: 12-30V DC Environment: -10~55° C Dimension: 105mm x 87mm x 48mm...
