TELIKOU
®

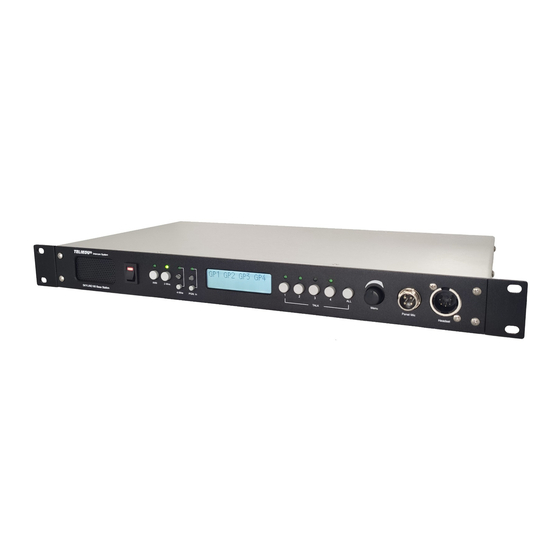

SKYLINE SK-100 / SK-190 Wireless Intercom
Instruction Manual
© TELIKOU Systems
All Rights Reserved

Advertisement

loading
Need help?

Need help?

Do you have a question about the SKYLINE SK-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Telikou SKYLINE SK-100

  • Page 1 Intercom System TELIKOU ® SKYLINE SK-100 / SK-190 Wireless Intercom Instruction Manual © TELIKOU Systems All Rights Reserved...
  • Page 2 TELIKOU SKYLINE SK-100 / SK-190 Wireless Intercom I. INTRODUCTION Thank you for choosing TELIKOU SKYLINE series wireless intercom products. 1. This system consists of 1x SK-100 main station, max 4x SK-100ANT antenna(RJ45 connector), Max 16x SK-190 wireless belt packs. 2. SK-190 belt pack can roam among different antennas. If the belt pack walks out of the antenna signal range, it will sound a cue.
  • Page 3 TELIKOU SKYLINE SK-100 / SK-190 Wireless Intercom 2. Panel Gooseneck Microphone 4 Pin Aviation Pin definition: Pin 1 -- Mic- Pin 2 -- Mic+ Pin 3 -- Ground Pin 4 -- Null 3. Volume / Menu Control knob Rotary encoder with switch. The rotary encoder is used to adjust the volume of the base station headphones, with a total of 16 choices.
  • Page 4 TELIKOU SKYLINE SK-100 / SK-190 Wireless Intercom The Settings  Language : English or Chinese MIC Select : Headset - Panel microphone and panel speaker do not work. Panel MIC - Headset microphone does not work. Earphone volume drops 6dB.
  • Page 5 TELIKOU SKYLINE SK-100 / SK-190 Wireless Intercom 10. 4-Wire Level Adjustment Adjust the 4-wire audio level input 11. 2-Wire Allows external 2-wire audio input to system. The green LED above lights constantly When receives call signal, the green LED above flashes.
  • Page 6 TELIKOU SKYLINE SK-100 / SK-190 Wireless Intercom 3. Relay Connector 6.35mm / 1/4 inch connector. When ANN.Out button is pressed, this relay is closed. R: Normally Closed Contact T: Moving Contact S: Noormally Open Contact 4. ANN. Out Base station microphone output.
  • Page 7 TELIKOU SKYLINE SK-100 / SK-190 Wireless Intercom 7. AUX. In XLR-3F Connector, 1Vp-p audio level Pin 1 --- GND Pin 2 --- Audio In + Pin 3 --- Audio In - 8. Transceiver Connector Four RJ-45 connector to Antenna RJ-45 Connector:...
  • Page 8 TELIKOU SKYLINE SK-100 / SK-190 Wireless Intercom 2. USB Connector External power bank supplies 5VDC  Computer Data port  3. Antenna Sequence Number Two digits coding switch. The number at the top of the chart is the antenna number corresponding to different dial positions 4.
  • Page 9 TELIKOU SKYLINE SK-100 / SK-190 Wireless Intercom 橙白 橙白 Orange White Orange White 橙 橙 Orange Orange 绿白 蓝 Green White Blue 蓝 绿白 Blue Green White 蓝白 绿 Blue White Green 绿 蓝白 Green Blue White 棕白 棕白 Brown White Brown White 棕...
  • Page 10 TELIKOU SKYLINE SK-100 / SK-190 Wireless Intercom 1. Power Button and Volume Adjustment With switch encoder. Turn it clockwise or anti-clockwise to adjust earphone audio volume. There Is 16 levels to select. If hold button more than 5s, the belt pack is turned on or off.
  • Page 11 TELIKOU SKYLINE SK-100 / SK-190 Wireless Intercom Pin 1 --- Mic - Pin 2 --- Mic + Pin 3 --- Ear - Pin 4 --- Ear + Pin 5 --- GND 6. ISO Button Press and hold the button. The belt pack makes an isolated conversation with ISO target belt pack.
  • Page 12 TELIKOU SKYLINE SK-100 / SK-190 Wireless Intercom which are already paired on LCD screen. Belt pack can roam among these antennas. Press and rotate the power and volume encoder can switch antenna manually. V Technical Parameters 1. Power: 4xAA Battery or 4xAA Rechargeable Battery 2.
  • Page 13 TELIKOU SKYLINE SK-100 / SK-190 Wireless Intercom 7. DECT 1.9G RF unit test Parameter Nominal Limit Unit TX NTP for PCBA ± 2 Frequency OFFSET (Use FIG31 patter) f © +/- 0 ± 50 DATA: For ATE: Freq deviation (FIG31)
