TLM 100T • Installation Guide

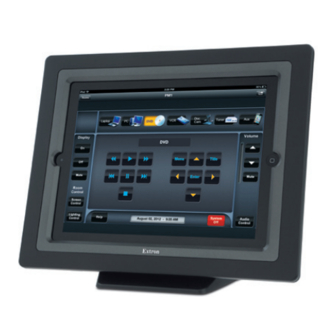

The TLM 100T is a secure tabletop mounting enclosure
for an iPad in a landscape orientation. The enclosure is
®
compatible with the iPad 2, iPad 3, and iPad 4.

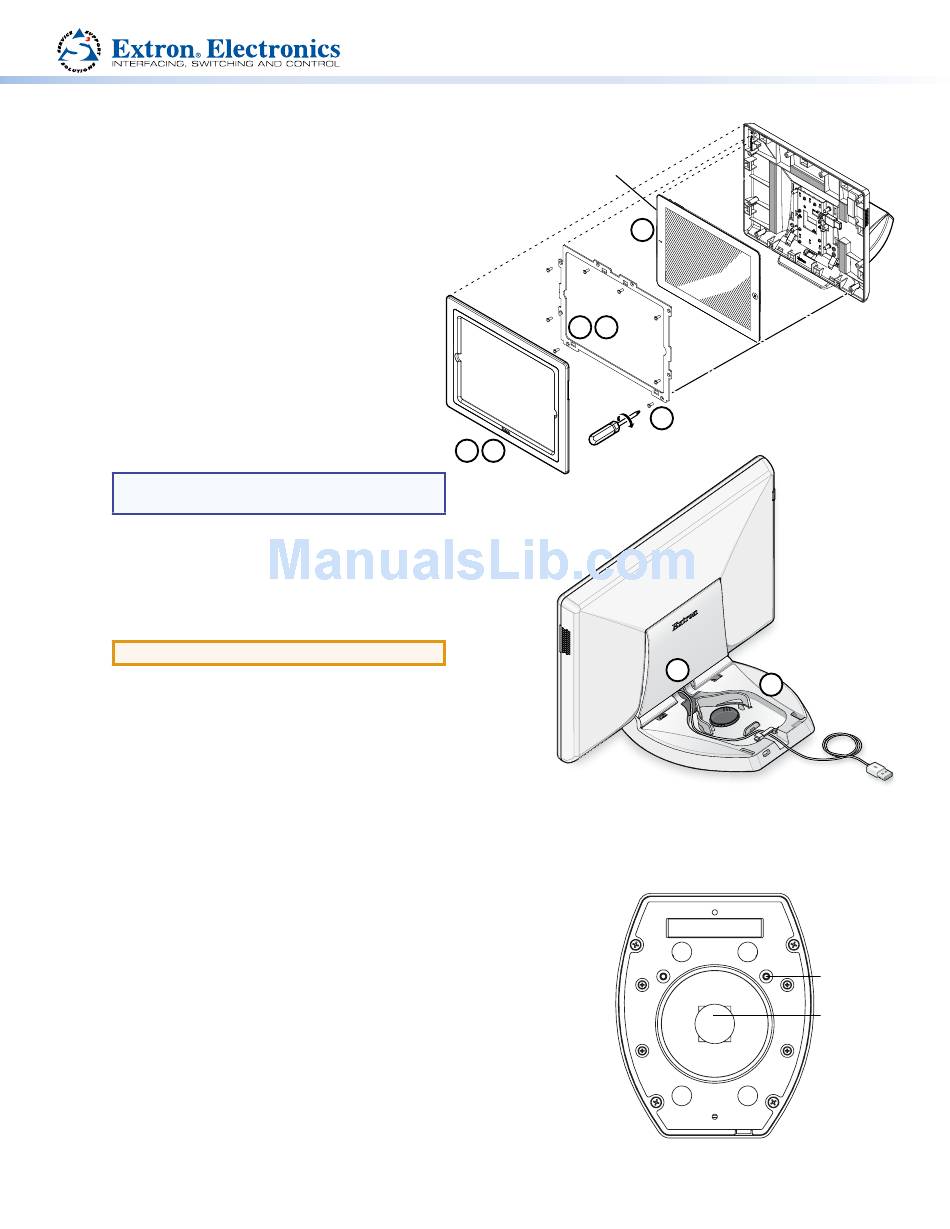

Installing an iPad in a TLM 100T
Use the provided Extron removal tool to ease
1.
the faceplate away from the back panel. Start by
releasing the catches at the bottom and gradually
work around the sides until the faceplate lifts off.
Remove the metal frame.
2.
Remove the base cover, using the Extron removal
3.
tool.
Run the iPad charging cable through the hole at the
4.
bottom of the TLM 100T back panel, then through
the cable raceway in the base of the unit, and out
the back of the base.
NOTE:
Leave about 1½ inches (3.8 cm) of
charging cable free to connect to the iPad.
Place the iPad in the rear enclosure. The power switch must be in
5.
the top left corner.
Place the metal frame with the rubber pads in contact with the iPad.
6.
Use the provided #6 spanner bit and the eight provided spanner
7.
drive screws to secure the metal frame.
ATTENTION:
Do not overtighten the screws.
Replace the faceplate. Ensure it is in the correct orientation with the
8.
Extron name at the bottom.
Replace the TLM 100T base cover.
9.
Tabletop Mounting Options
Securing the TLM 100T to a Tabletop
The TLM 100T can stand on any convenient tabletop. If required, use two screws in the two mounting holes in the base to secure
the unit to the desktop (see the figure at right).
Drill two holes through the desktop. The two holes must be 3.07 inches (78 mm) apart and 3/8 inch (9.5 mm) in diameter.
1.
Fasten the base to the desktop with two #8 wood screws (not provided) through
2.
the desktop from underneath into the two holes in the base of the TLM 100T.
Installing the TLM 100T on an SMA-1 Swivel Mount
The TLM 100T can be mounted with the Extron SMA-1 swivel mount adapter,
allowing it to swivel up to 359° (see the SMA-1 Swivel Mount Adapter Kit User Guide
at www.extron.com).
Determine where the SMA-1 and TLM 100T are to be mounted.
1.
Mount the SMA-1 and configure the set screws as described in the SMA-1
2.
Swivel Mount Adapter Kit User Guide.
Remove the rear and base covers of the TLM 100T, using the Extron removal
3.
tool.
Remove the hole plug from the base of the TLM 100T to reveal the mounting
4.
hole.
Power Switch
5
2 6
1 8
TLM 100T Faceplate
snaps to unit (11 plcs.)
TLP 100T rear view with
the base cover removed.
Product Category
TLM 100T
Back Panel.
iPad
7
Spanner Drive Screws (8)
secure the metal frame to
the TLM 100T back panel.
4
3
Mounting Holes
for screws (2)
Hole Plug for
SMA-1 mounting
TLP 100T Base View
1
