Attaching the Base

1 - 6
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
For headsets terminated in RJ-9 modular jacks to be used with SoundPoint IP 320
Note
and 330 phones, a separate Headset Jack Adapter (P/N 2457-11095-001) is
required. To purchase the Headset Jack Adapter, contact your reseller.

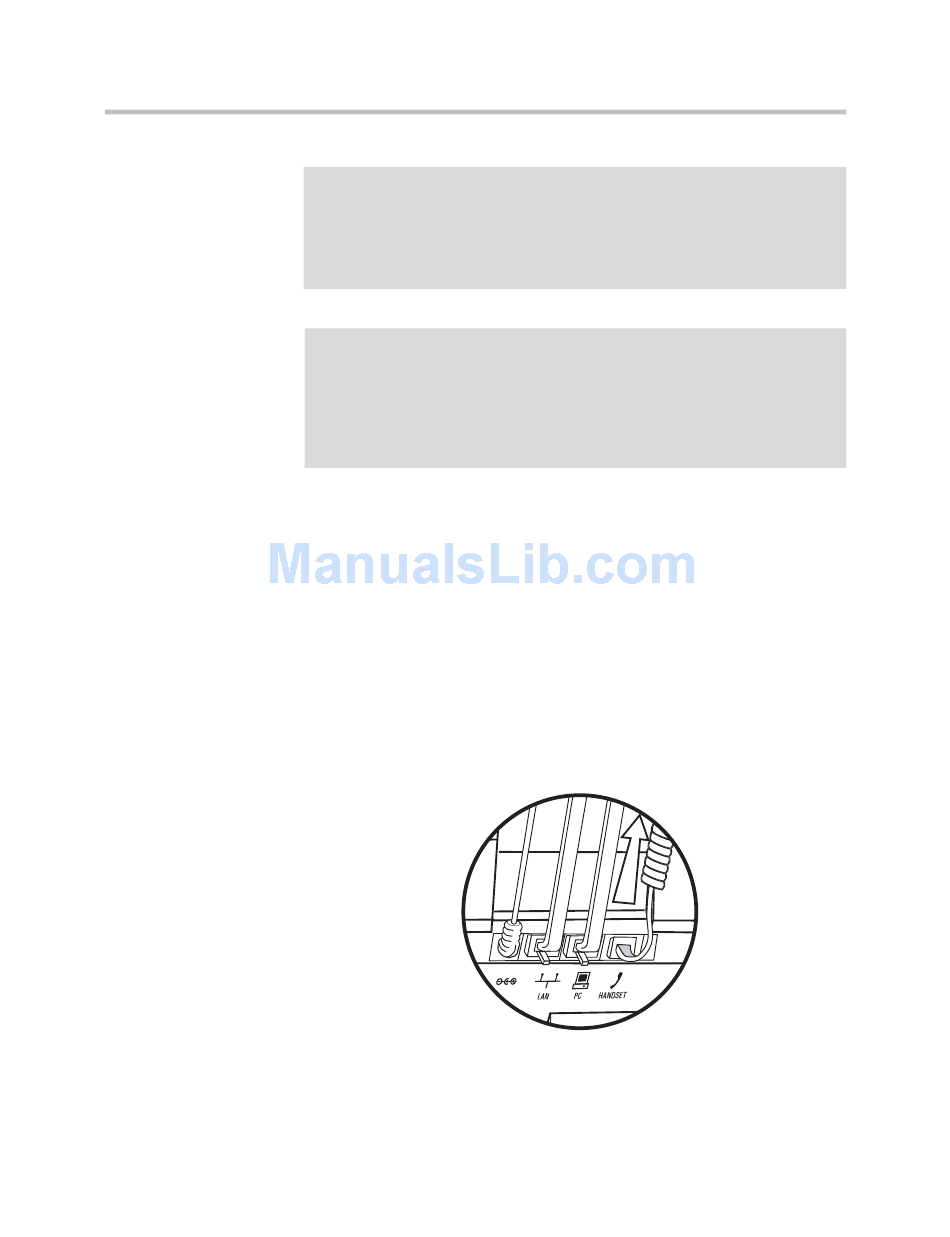

Plug the headset RJ9 jack into the adapter, and then plug the adapter into the
2.5mm port on the right side of the phone as shown below. The headset operates
as before.
Note If headsets are deployed in high static environments where users frequently
disconnect and re-connect the headset to the phone, it is possible that the phone
can be damaged by electrostatic discharge (ESD).
You should take precautions to avoid excessive static buildup in your environment.
This can include humidity control and removal of synthetic materials near the phone
location. Antistatic spray applied to carpets in the workplace can reduce the level of
static buildup.
Attach the phone base to the phone in one of the following ways:
• As a desk mount
• As a wall mount
For more detailed instructions, go to
http://www.polycom.com/support/voip/and search for the "Wallmount
Instructions for SoundPoint IP Phones" quick tip.
To attach the base as a desk mount:
1. Place all cords in the recessed area above the modular jacks.
