2.2.2 Step 2 — Attach Module to Prototyping Board
Turn the RCM4100 module so that the mounting holes line up with the corresponding
holes on the Prototyping Board. Insert the metal standoffs as shown, secure them from the
bottom using two screws and washers, then insert the module's header J2 on the bottom
side into socket RCM1 on the Prototyping Board.
Insert standoffs
between
mounting holes and
Prototyping Board.
RCM4100
Line up mounting
holes with holes
on Prototyping Board.

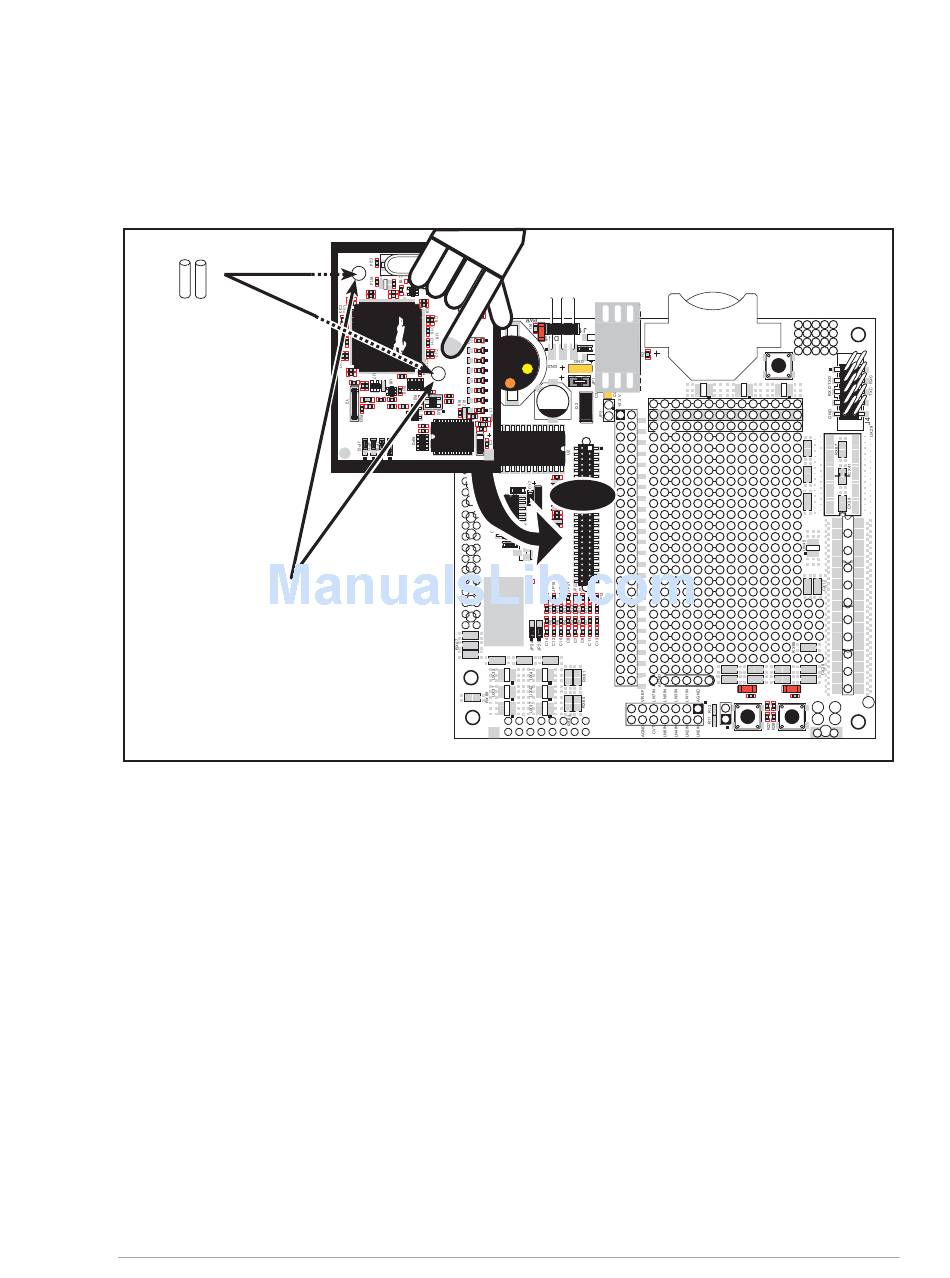

Figure 3. Install the Module on the Prototyping Board
NOTE: It is important that you line up the pins on header J2 of the module exactly with
socket RCM1 on the Prototyping Board. The header pins may become bent or damaged
if the pin alignment is offset, and the module will not work. Permanent electrical dam-
age to the module may also result if a misaligned module is powered up.
Press the module's pins gently into the Prototyping Board socket—press down in the area
above the header pins. For additional integrity, you may secure the RCM4100 to the stand-
offs from the top using the remaining two screws and washers.
