SECTION 6
[CHASSIS PARTS]
REF PART
NO. NO.
J1 6910021492 ANT CONNECTOR 106-2
SP1 2510002080 036D01206
W1 8920001910 CAB-1219
W2 8910000570 FFC-1061 (P0.5N24L90)
EP1 8940000020 3766 CONNECTOR P.C.B
EP2 8940000090 3877 VOL P.C.B
MP1 8210033312 3877 FRONT PANEL (A) ASSEMBLY-2
MP4 8930093460 3766 LENS
MP5 8930083680 O-RING (CM) (TOT)
MP6 8930070011 2893 VOL RUBBER-1 (TOT)
MP7 8930097360 3877 WINDOW SHEET
MP8 8310091550 3877 WINDOW PLATE (C)
MP9 8930098380 3877 KEYBOARD (B) (SC)
8930098380 3877 KEYBOARD (B) (SC)
8930098810 3877 KEYBOARD (C) (SC)
8930098810 3877 KEYBOARD (C) (SC)
8930098810 3877 KEYBOARD (C) (SC)
8930098810 3877 KEYBOARD (C) (SC)
MP10 8930095290 3766 VENT SHEET
MP11 8930093570 3766 MIC RUBBER (TOP)
MP13 8930097220 3699 SP HOLDER
MP14 8810009181 BT M2×5 NI-ZC3
MP16 8930095070 INSULATION SHEET (NW)
MP17 8930093591 3766 CONNECTOR SHEET-1
MP18 8950009011 3766 14-PIN CONNECTOR-1
MP19 8930093580 3766 CONNECTOR SEAL
MP24 8810009181 BT M2×5 NI-ZC3
MP31 8010024300 3972 CHASSIS
MP32 8930097410 THERMAL SHEET (DH) TC-100CAT-20 6×6
MP33 8930098620 SHIELD SPONGE (EO)
MP34 8930098630 SHIELD SPONGE (EP)
MP35 8930085880 SHIELD SPONGE (DA)
MP36 8850003421 SEALING WASHER (AA)-1 (TOT)
MP37 8810011050 BT O M2×3 NI-ZC3
MP38 8830001470 VRNUT (N)
MP39 8830004310 VR NUT (AI)
MP40 8930074350 O-RING (BW) (TOP)
MP41 8930088050 O-RING (CS) (TOT)
MP42 8930093560 3766 CONTACT RUBBER (TOP)
MP44 8930097910 3877 EARTH SPRING
MP45 8810008641 BT M2×4 NI-ZC3
MP46 8810011050 BT O M2×3 NI-ZC3
MP47 8930096990 3877 MAIN SEAL (SHJ)
MP48 8830003440 3285 ANT NUT
MP49 8810010850 PH BT B0 M2×8 SUS SSBC
MP51 8930097400 SPONGE (PD)
MP52 8930059830 2600 SHEET
MP53 8930059800 2600 PET SHEET
MP54 8930098660 3935 SPONGE
MP61 8610016360 KNOB N-452
MP63 8610016370 KNOB N-453
MP65 8210032940 3877 SIDE PANEL
MP66 8810010771 D6.9 M4×5 SUS SSBC

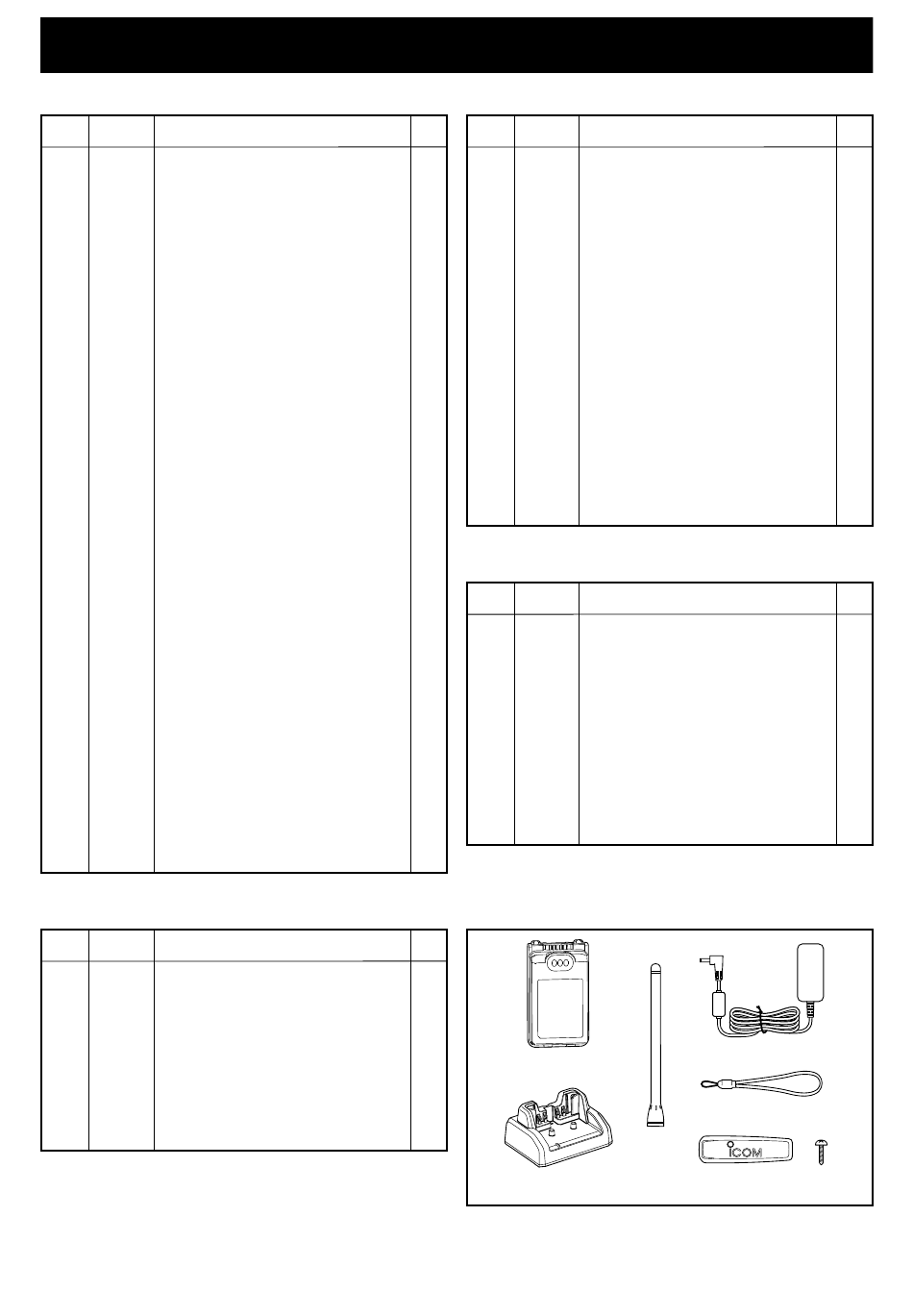

[ACCESSORIES]
REF PART
NO. NO.
EP1 – BP-290
†
EP2 – FA-SC58V
†
EP3 – BC-123SA
†
– BC-123SE
†
– BC-123SE
†
– BC-123SUK
– BC-123SE
†
– BC-123SV
†
EP4 – BC-227
†
EP5 6910018620 BLACK HANDY STRAP
MP1 – MBB-3
†
MP2 8810001470 PH A M3.5×30 SUS
Sold as an option.
†
*: Refer to "BOARD LAYOUTS" for the location.
**: Refer to "GENERAL WIRING" for the connection
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head BS: Brass NI: Nickel ZU: Zinc SUS: Stainless

MECHANICAL PARTS

DESCRIPTION
[#11]
[#12]
[#15]
[#16]
[#17]
[#19]
DESCRIPTION
[#11]
[#12]
[#15]
[#16]
†
[#17]
[#19]
[FRONT UNIT]
REF PART
qTY.
NO. NO.
1 J1* 6510030920 IMSA-9681S-24Y901
J2* 6510031380 31FXVL-RSM1-GAN-TF-1 (HF)
J3* 6510032530 04-6299-004-020-846+
1 J4* 6510031400 BM02B-ACHSS-GAN-ETF (LF) (SN)
J5* 6510031390 15FXVL-RSM1-GAN-TF-1 (HF)
1
1 DS6 5030004400 BTD-0701V-HBWD-N-A-A0
1 MC1* 7700003060 F6027AP-SBC-462
1
S1* 2230001060 EVQ-PUL 02K
1 S2* 2260003620 LS17C2-T
1 S3* 2260003620 LS17C2-T
1 S4* 2260003620 LS17C2-T
1 S5* 2260003620 LS17C2-T
1
1
1 MP1* 8510021700 OG-301012
1 MP3* 8510021700 OG-301012
1 MP5 8930070271 SHIELD SPONGE (AZ)-1
1 MP6 8930070271 SHIELD SPONGE (AZ)-1
1 MP7* 8510022380 3972 SHIELD PLATE
1 MP8 8930098820 INSULATION SHEET (OQ)
1 MP11 8210033320 3972 REFLECTOR
1 MP12 8930097380 3877 WHITE SHEET
1 MP13 8930097800 3877 B-SHEET
2 MP14 8930085790 SPONGE (LY)
1 MP15 8930098850 SPONGE (PN)
1
1
1
2
1
2
[MAIN UNIT]
1
1
REF PART
1
NO. NO.
1
J1* 6510030920 IMSA-9681S-24Y901
1
J404* 6510032530 04-6299-004-020-846+
1
1
1
F401* 5210001160 ERBRE3R00V
1
1
1
S401 2250001060 ED089070SU16.2S7C-2040
2
8
1
MP1* 8930097350 3877 ANT SPRING
1
MP2* 8410003020 3877 PA HEATSINK
2
MP3* 8510022370 3972 VCO CASE
1
MP11* 8510022290 E01J1113Y
1
MP14* 8510022290 E01J1113Y
1
MP17* 6910014760 OG-503040
2
MP18* 6910014760 OG-503040
1
MP401 8950008990 3766 CONTACT SPRING
1
1
1
qTY.
1
1
1
1
1
1
1
1
EP1
1
1
1
1
EP4
6-1 6-1
DESCRIPTION
DESCRIPTION
EP3
EP5
EP2
MP2
MP1
qTY.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
qTY.
1
1
1
1
1
1
1
1
1
1
1
1
