ASSEMBLY

To hire an authorized service technician to assemble the exercise bike, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver
wrench , and a rubber mallet

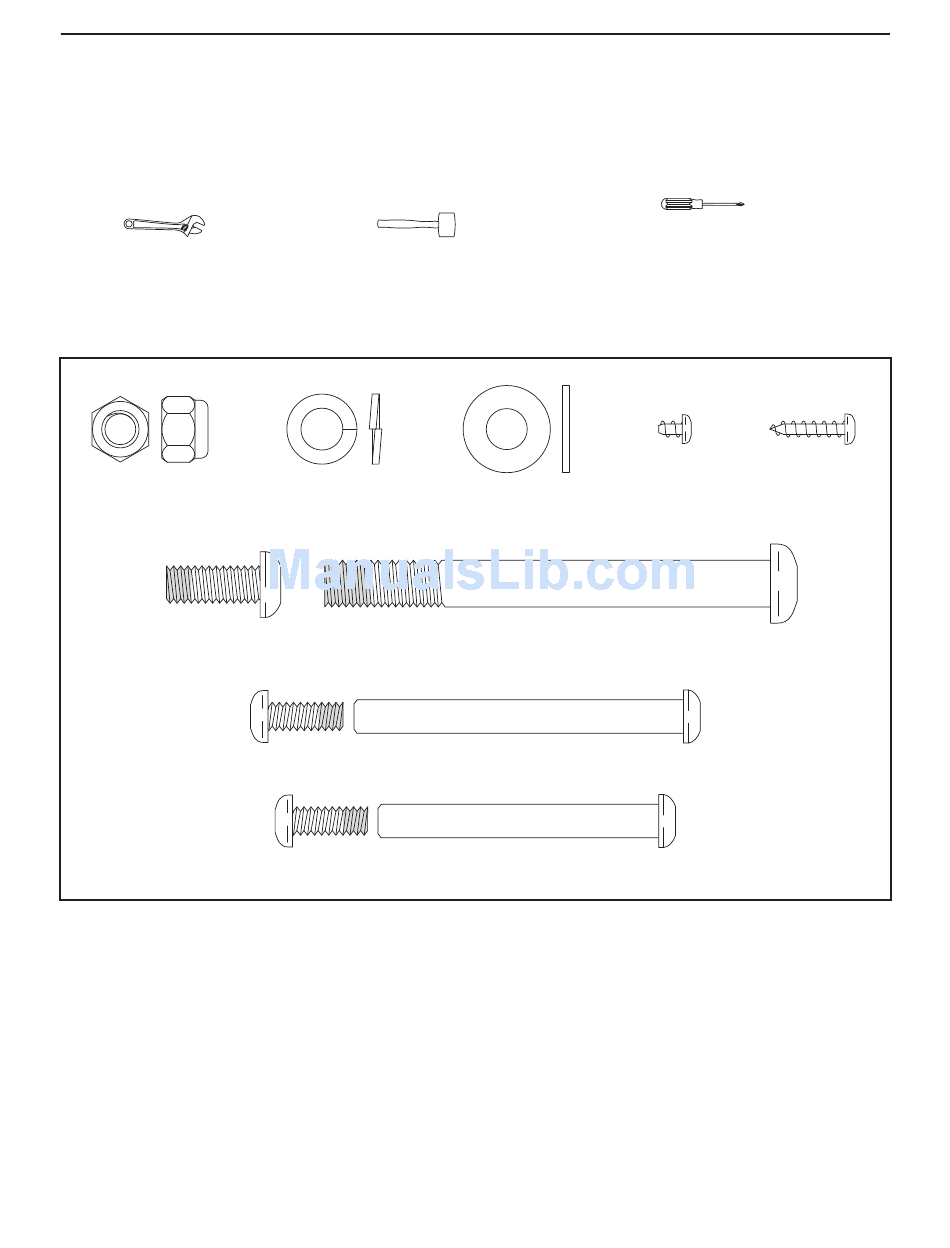

As you assemble the exercise bike, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit,
check to see if it has been preassembled.
M8 Locknut
(72)–4
M8 x 20mm
Patch Screw
(74)–4
M8 Split
Washer (75)–8
M6 x 70mm Bolt Set (50)–1
M6 x 60mm Bolt Set (51)–1
.
M4 x 5mm
M8 Washer
Bright Screw
(43)–2
M10 x 95mm Patch
Screw (76)–4
5
, an adjustable
M4 x 16mm
Screw (90)–8
(91)–1
