Pro-Form PFEX02210.0 User Manual page 10

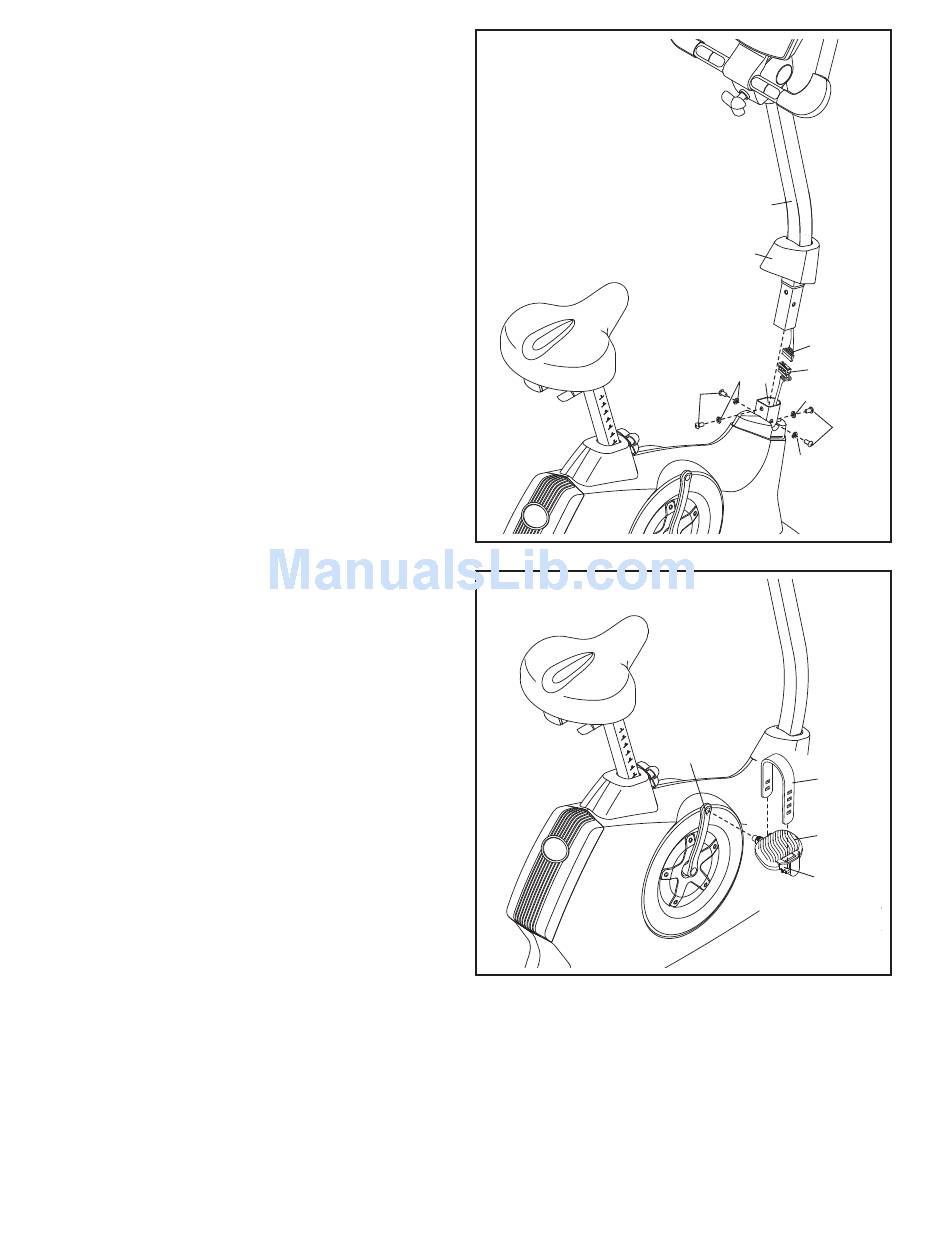

9. Slide the Front Shield Cover (7) upward onto
the Upright (4).
While another person holds the Upright (4) near
the Frame (1), connect the Extension Wire (59)
to the Wire Harness (58).
Insert the Upright (4) into the Frame (1).
Tip: Avoid pinching the wires. Attach the
Upright (4) with four M8 x 20mm Patch Screws
(74) and four M8 Split Washers (75).
Slide the Front Shield Cover (7) downward to
the Frame (1) and press it into place.
10. Identify the Right Pedal (21), which is marked
with an "R."
Using an adjustable wrench, firmly tighten the
Right Pedal (21) clockwise into the Right Crank
Arm (19).
Tighten the Left Pedal (not shown) counter-
clockwise into the Left Crank Arm (not shown).
IMPORTANT: Tighten both pedals as firmly
as possible. After using the exercise bike for
one week, retighten the pedals. For best per-
formance, keep the pedals tightened.
Adjust the strap on the Right Pedal (21) to the
desired position, and press the ends of the
straps onto the tabs on the Right Pedal. Adjust
the strap on the Left Pedal (not shown) in
the same way.
11. Make sure that all parts are properly tightened before you use the exercise bike. Note: Some hard-
ware may be left over after assembly is completed. Place a mat under the exercise bike to protect the
floor or carpet.
