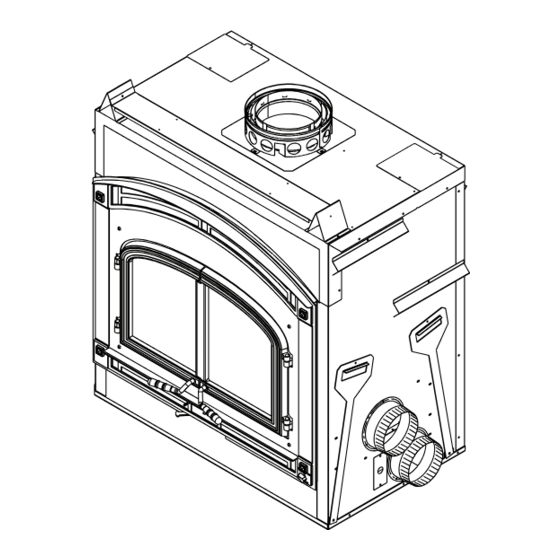

Quadra-Fire 7100FP-GD-B Installation Manual
Epa certified woodburning fireplace
Hide thumbs
Also See for 7100FP-GD-B:
- Owner's manual (72 pages) ,
- Owner's manual (75 pages) ,
- Owner's manual (36 pages)
Table of Contents
Advertisement
Quick Links
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE:
DO NOT discard this manual!
Model(s):
EPA CERTIFIED WOODBURNING
FIREPLACE
Installation and service of this fi replace should be
performed by qualifi ed personnel. Hearth & Home
Technologies recommends NFI certifi ed profes-
sionals, or technicians supervised by an
NFI certifi ed professional.
Installation Manual
Installation and Fireplace Setup
O-T L
Tested and
Portland
Oregon USA
Listed by
C
US
OMNI-Test Laboratories, Inc.
Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14
WARNING: If the information in these
instructions is not followed exactly, a fi re
R
or explosion may result causing property
damage, personal injury, or death.
• DO NOT store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• DO NOT overfi re. Overfi ring will void your
warranty.
• Comply with all minimum clearances to com-
bustibles as specifi ed. Failure to comply may
cause house fi re.
• CAREFULLY SUPERVISE children in same room as
fi replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other fl ammable
materials.
• Keep clothing, furniture, draperies and other fl ammable
materials away.
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfi re and generate poisonous
gases (i.e. carbon monoxide).
Pour demander un exemplaire
en français de ce Manuel
du propriétaire, visitez www.
heatnglo.com/translations.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
WARNING
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Quadra-Fire 7100FP-GD-B
Summary of Contents for Quadra-Fire 7100FP-GD-B
- Page 1 • Keep clothing, furniture, draperies and other fl ammable FIREPLACE materials away. WARNING Installation and service of this fi replace should be performed by qualifi ed personnel. Hearth & Home Fire Risk. Technologies recommends NFI certifi ed profes- For use with solid wood fuel only. sionals, or technicians supervised by an NFI certifi ed professional. Other fuels may overfi re and generate poisonous gases (i.e. carbon monoxide). Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14...
-
Page 2: Table Of Contents
C. Install Fascia (Fronts) H. Outside Air Kit I. Auxiliary Convection Air System 9 Reference Materials J. Heat Zone Kit (Optional) A. Chimney Components 4 Electrical Wiring B. Accessories MESH-HHT Firescreen 5 Chimney and Termination Requirements A. Chimney Requirements B. Offsets/Returns C. Termination Requirements Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... - Page 3 Fireplace Setup Section 8 (Pg. 40) All packaging and protective materials removed. Firebrick, baffle and ceramic blanket installed correctly. Facia and doors properly installed. Manual bag and all of its contents are removed from inside/under the fireplace and given to the party responsible for use and operation. All packaging materials are removed from inside/under the fireplace. Hearth & Home Technologies recommends the following: • Photographing the installation and copying this checklist for your file. • That this checklist remain visible at all times on the fireplace until the installation is complete. Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed: _________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Comments communicated to party responsible __________________________ by ______________________on _________ (Builder/Gen. Contractor) (Installer) (Date) Part # 4017-254 • Rev B • 01/29/13 Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14...
-
Page 4: Product Specific & Important Safety Information
Shipping Weight: 670 lbs WARNING! Risk of Fire! Firebox Size 3.4 cubic feet Hearth & Home Technologies is not responsible for discoloration, cracking or other material failures of finishing materials due to heat exposure or smoke. • Choose finishing materials carefully. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 5: Combustible Materials
NFPA 70-latest edition or the Canadian Electric Code CSA C22.1. • A 110-120 VAC circuit for this product must be protected with ground-fault circuit-interrupter protection, in compliance with the applicable electrical codes, when it is installed in damp locations. WARNING! Improper installation, adjustment, alteration, service or maintenance can cause injury or property dam- age. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 6: Getting Started
SL300 on top of V-shaped standoffs (spacers) chimney Non-combustible material Outside combustion air Hearth extension Protective metal hearth strip(s) Figure 2.1 Typical Fireplace System Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 7: Design And Installation Considerations
24 in. (610mm) Figure 2.2 Fireplace Locations Model # 7100FP in. 42-1/4 16 89-1/2 63-5/16 22-7/16 44-3/4 14-1/16 55-15/16 50-7/8 (Dimensions for finished walls) mm 1063 406 2273 1608 1137 1421 1292 Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 8: Locating Fireplace & Chimney
• Below adjacent structure • Insulated exterior chase • Lower roof line in cooler climates • Avoid outside wall Windward Leeward Multi-level Roofs Figure 2.3 Recommended Chimney Locations Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 9: Tools And Supplies Needed
• Vent system components and doors are shipped in separate packages. • Report to your dealer any parts damaged in shipment. • Read all the instructions before starting the installation. Follow these instructions carefully during the installation to ensure maximum safety and benefit. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 10: Framing And Clearances
(965 mm) (240 mm) 13-3/4 in. 40 in. (349 mm) Blower Electric Access (1016 mm) (right side of fireplace) 43 in. (1092 mm) Figure 3.1 Fireplace Dimensions Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 11: Clearances
Electrical wires must be 3-1/2: (89mm) from top 0 in. to floor 1 in. (25mm) to side of appliance Figure 3.2 Clearances to Combustible Materials Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 12: Minimum Clearances To Combustibles
The finished cavity depth must (1226 mm) be no less than 24 in. (610 mm) from the finished backwall to the outside of front wall framing. Figure 3.3 Framing the Fireplace Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 13: Construct The Chase
Chase Constructions shield should be installed in an insulated false ceiling at the 8 ft. (2438 mm) level above the fireplace assembly. This reduces heat loss through the chase. - In cold climates, the walls of the chase should be insulated to the level of the false ceiling as shown in Figure 3.4. This will help reduce heat loss from the home around the fireplace. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 14: Frame The Fireplace
Non-combustible facing material CAUTION! Risk of Cuts/Abrasions. Wear protective gloves Figure 3.6 Drywall - Non-combustible Facing Material and safety glasses during installation. Sheet metal edges are sharp. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 15: Protective Metal Hearth Strips
1 in. (25 mm) min. tags (51 mm) overlap Figure 3.9 Apply Non-combustible Materials Floor 2 in. (51 mm) Figure 3.8 Protect the Front of an Elevated Platform Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 16: Outside Air Kit
Blockages could cause combustion air starvation. CAUTION! Risk of Cuts/Abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges are sharp. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... - Page 17 Outlet placed higher than 3 ft below the termination cap UL181 Listed Class 0 or Class 1 metal flex or Figure 3.11 Outside Air Installation rigid duct Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14...
-
Page 18: Auxiliary Convection Air System
Convection OUTSIDE AIR Figure 3.12 Outside Air I. Auxiliary Convection Air System Note: Both the outside air and auxiliary air kits are installed on the right hand side of the fireplace. The auxiliary convection air system allows the option at the time of installation of the fireplace, to run a 6 inch (152 mm) diameter duct to the outside of the home, and Figure 3.13 Auxiliary Convection Air Duct bring outside air over the fans where it is heated and then distributed into the room. This produces a postive pres- sure inside the home. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... - Page 19 Auxiliary Convection Air Lever The auxiliary convection air lever is locked from the fac- tory. If you are going to use this function for air move- ment you must remove the lock. After removing the fascia, remove the one screw and plate to allow the handle to be moved in the full motion right to left. See Figure 3.14. Discard the plate and screw. Replace fascia. The auxiliary convection lever is located underneath the front lower panel as shown in Figure 3.14. Convection Lock Bracket 8-32 Screw Figure 3.14 Auxiliary Convection Air Lever Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14...
-
Page 20: Heat Zone Kit (Optional)
Possible Air Duct Runs / Locations 12 in. (305mm) minimum clearance from register to ceiling Ceiling Register Wall Register Floor Register Ceiling Register Two Duct Kits Figure 3.15 Minimum Clearances to Combustibles Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... - Page 21 A minimum 1 in. (13 mm) air clearance must be • On the mounting plate, hand bend the tabs downward. maintained at the back and 1 in. (25mm) to the sides Slide the tabs over the outside of the starter pipe. Secure of the fireplace assembly. with four sheet metal screws included in fasteners package. Figure 3.17. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14...
- Page 22 Junction Box Return Air Grille Securely Twist White Install with Louvers Lock B-Vent to pointed down Adapter Wire Nuts Wire Clamp Junction Box Removed Figure 3.21 Figure 3.19 Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14...
-
Page 23: Electrical Wiring
GREEN Power to the Fireplace Incoming Power (110V) Snap Disc bypass switch BLACK Figure 4.1 Fan Wiring Diagram Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 24: Chimney And Termination Requirements
14.5 ft (4.42 m) min. height/single offset-return 45 3/4 in. 20 ft. (6.10 m) min. height/double offset-return (1162 mm) 50 ft (15.24 m) max. height to top of standoffs Figure 5.1 Chimney Requirements Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 25: Offsets/Returns
84 1/8 2137 39 1/8 76 7/8 1953 22 3/4 91 7/8 2334 43 1/4 1099 84 1/8 2137 96 1/2 2451 45 1/8 1146 87 1/4 2216 25 7/8 103 1/2 2629 49 1/4 1251 94 1/2 2400 Proper assembly of air-cooled chimney parts result in an overlap at chimney joints of 1-1/4 in. (32 mm). Effective length is built into this chart. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 26: Termination Requirements
In a staggered installation with both gas and wood terminations, the wood termination cap must be higher than the gas termination cap. Figure 5.3 Multiple Chimney Locations Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 27: Chimney Installation
Ceiling firestops are required where chimney passes through ceiling or floor Figure 6.1 Typical Chimney System - Guidelines for Chimney System Installation Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 28: Assemble Chimney Sections
Secure to Top • Vertical straight runs of chimney must be supported every 35 ft (10.7 m). Figure 6.3 Installing the CAK4A Figure 6.2 Assembling Chimney Sections WARNING! Risk of Fire! DO NOT install substitute or damaged chimney components. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... - Page 29 WARNING! Risk of Fire! • The flex pipe must never be compressed or deformed! • Restricting the airflow inside the flex pipe may increase flue pipe temperatures causing a chase fire. 4" Duct - Use UL181 Class 0 or Class 1 ducting. Seal Seal Wire Ties Figure 6.4 Installing Flex Pipe Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14...
-
Page 30: Secure Offset/Return
CAUTION! Risk of Fire! Ceiling firestops must be used whenever the chimney penetrates a ceiling/floor. • Chase construction requires ceiling firestops at each floor or every 10 ft. (3.05 m) of clear space. • The ceiling firestop slows spread of fire and reduces cold air infiltration. • Install a ceiling firestop whenever chimney penetrates ceiling/floor. • Mark and cut an opening in ceiling as shown in Figure 6.6. • Frame the opening with the same size lumber used in the ceiling joists. • Nail the ceiling firestop to the bottom of the ceiling joists when there is a room above. • Use an attic insulation shield if the ceiling is insulated. The ceiling firestop may then be attached above or below the joists. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 31: Install Attic Insulation Shield
Insulation Insulation limitations given under Section 5. Check each section by pulling up slightly from the top 10-1/2 in. Ceiling Firestop to ensure proper engagement before installing the suc- Pipe (267 mm) ceeding sections. If they have been connected correct- ly, they will not disengage when tested. Figure 6.9 Install Attic Insulation Shield (firestop below ceiling) Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 32: Roof Penetration
The extension should overlap the thimble one inch. CHIMNEY • To attach the extension to the thimble, drill 1/8 in. (3 mm) FLASHING FLASHING holes through the outer shield of the thimble using the PLATE predrilled holes in the extension as guides. Attach the extension to the thimble using the screws provided with JOISTS the extension. • Install the thimble assembly and nail it securely to the NAIL framing members. THIMBLE Figure 6.11 Installing Part: 12966A, Configuration 1 Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 33: Install Chase/Chase Top
NAIL Drip Edge ADJUSTABLE THIMBLE EXTENSION Chase HOLES .018 (26 ga) min. Figure 6.13 Installing Part 12966A Configuration 3 Galvanized Chase Top Figure 6.14 Chase Top Construction Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 34: Termination Cap Requirements
Minimum Height Maximum Chase Top Chase Chimney Pipe Termination cap pipe and chimney section must overlap 1-1/2 in. (38 mm) Figure 6.16 Installing a TR342 Round Telescoping Termination Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... - Page 35 4 3/4 in. (121 mm) maximum Chase Chimney Pipe Termination cap pipe and chimney section must overlap 1-1/2 in. (38 mm). Figure 6.18 Installing a TS345/TS345P Square Termination Cap Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14...
-
Page 36: Finishing
Figure 7.1 Install the Finishing Template Note: DO NOT remove hang tags until installing finish materials. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 37: Mantel And Wall Projections
MUST be noncombustible. Armstrong™ Privacy Guard Plus 0.46 2.18 1 in. 46 in. 14.3-20.0 0.07-0.05 29 1/2 - 41 1/4 in. Marble (1168 mm) Figure 7.2 Mantel Specifications - Non-Combustible Mantel Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... - Page 38 ........Combustible Floor Minimum 4 in. (102 mm) Cement Board or equivalent, (or two pieces HX4) Figure 7.4 Fireplace and Hearth Extension Flush on the Floor. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14...
-
Page 39: Non-Combustible Sealant Material
(i.e., steel studs, concrete board, etc.). WARNING! Risk of Fire! Hearth & Home Technologies is not responsible for discoloration, cracking or other material failures of fi nishing materials due to heat exposure or smoke. • Choose fi nishing materials carefully. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 40: Fireplace Setup
Left Side Floor Figure 8.2 Fire Brick Configurations Table 8.1 Brick Size Qty. In Set 1 9” x 3-1/4” x 1-1/4” Angled (see drawing) 9.0" 2 6-1/4” x 4-1/2” x 1-1/4” 3 9” x 2” x 1-1/4” 3-1/4" 4 6-1/4” x 3-1/2” x 1-1/4” 1-1/4" 5 9” x 4.5” x 1-1/4” Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 41: Baffle And Blanket Placement
Back of Firebox Ceramic Blanket Baffle Protection Channel in position Figure 8.3 Baffle Board The ceramic blanket and baffle board MUST be in contact with the back of the firebox and even with each other in the front. The baffle protection channel MUST be in posi- tion. C. Install Fascia (Fronts) Fronts are required to complete the installation. The 7100 fireplace allows a choice of fronts, therefore they are shipped separately from the fireplace due to customer preference and selection. Instructions for attachment of the fronts are included with them. Contact your local dealer with any questions on offerings or installation. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... -
Page 42: Reference Materials
34-3/4 LDS33 Decorative Shroud - 3 ft x 3 ft (.91 m x .91 m) SL348 1219 46-3/4 1187 LDS46 Decorative Shroud - 4 ft x 6 ft (1.22 m x 1.83 m) LDS-BV Decorative Shroud - 26 in. x 26 in. (660 mm x 660 mm) Heat Zone Wood Field Constructed Shrouds (See “Woodburning Termination HHT - Template Cap”) Lintel Bar - HHT CT-3A Adapter - May be used with the following caps CT Series DT Series Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... - Page 43 (422 mm) (422 mm) Assembled Diameter: 14 1/2 in./368 mm Height: 24 in./610 mm 12966A Manufactured Home Thimble AS8 SL300 Straight Attic Insulation Shield (shipped with unit) Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14...
- Page 44 DTS146 21.18 1168 23 in. (584 mm) 15-3/4 in. 19 in. (400 mm) (483 mm) 15-5/8 in. TR344 Round Termination Cap (397 mm) ST375 Square Termination Cap Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14...
- Page 45 (870 mm) LDS-BV Decorative Shroud Catalog # 12.5 15.5 LDS-BV TV342 Top Vent Round Termiantion Cap 7 3/4 in. TR-TVK Top Vent Kit 26 in. CT-3A Adapter Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14...
-
Page 46: Accessories
B. Accessories MESH-HHT Firescreen Doors: Classic Black Gold Satin Nickel Fronts: Valley Forge Mission Hill Rolling Meadow Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14... - Page 47 This page intentionally left blank. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14...
- Page 48 Quadra-Fire, a brand of Hearth & Home Technologies 7571 215th Street West, Lakeville, MN 55044 www.quadrafire.com Please contact your Quadra-Fire dealer with any questions or concerns. For the location of your nearest Quadra-Fire dealer, please visit www.quadrafire.com. Quadra-Fire • 7100 FP • 433-3610 Installation Manual • Rev G • 5/27/14...
