effects

The LIBRARY screen's effects tab allows you to load and save presets for the various onboard effects processors.
To adjust the various settings on the effects tab, perform the following steps:
1. Adjust the first rotary control to select which of the eight effects slots to load or save a preset.
• As you navigate among the eight effects slots the specific effect processor loaded into each slot will display on
the screen as both a name and an icon.
2. To save and load presets, as well as import/export them, follow the same procedure as detailed in the LIBRARY
screen channel tab.

routing

The LIBRARY screen's routing tab allows you to load and save presets of the M32's signal routings. This can be useful
for repeating specific routing scenarios that occur over and over on a regular basis, such as when using the console for a
weekly club gig or worship service.
To adjust the various settings on the routing tab, perform the following steps:
1. Adjust the first rotary control to select which specific console signal paths will be recalled when loading a routing
preset. Choices include:
• Channel Inputs
• Analog Out
• Auxiliary Out
• P16 (Ultranet) Out
• Card Out
• AES50 Out.
2. Tap the first control to turn the currently selected element on or off in the recall list.
3. To save and load presets, as well as import/export them, follow the same procedure as detailed in the LIBRARY
screen channel tab.
76
Effects
The EFFECTS screen controls various aspects of the eight internal effects processors. On this screen the user can select
specific types of effects for the eight internal processors, configure their input and output paths, monitor their levels, and
adjust the various effect parameters.
The EFFECTS screen contains the following separate tabs:
home: The home tab provides a general overview for all eight effects processors, displaying what effect has been
inserted in each of the eight slots, as well as displaying input/output paths for each slot, and the I/O signal levels.
fx1-8: These eight duplicate screens display all relevant data for the right separate effects processors, allowing the
user to adjust all parameters for the selected effect.

home

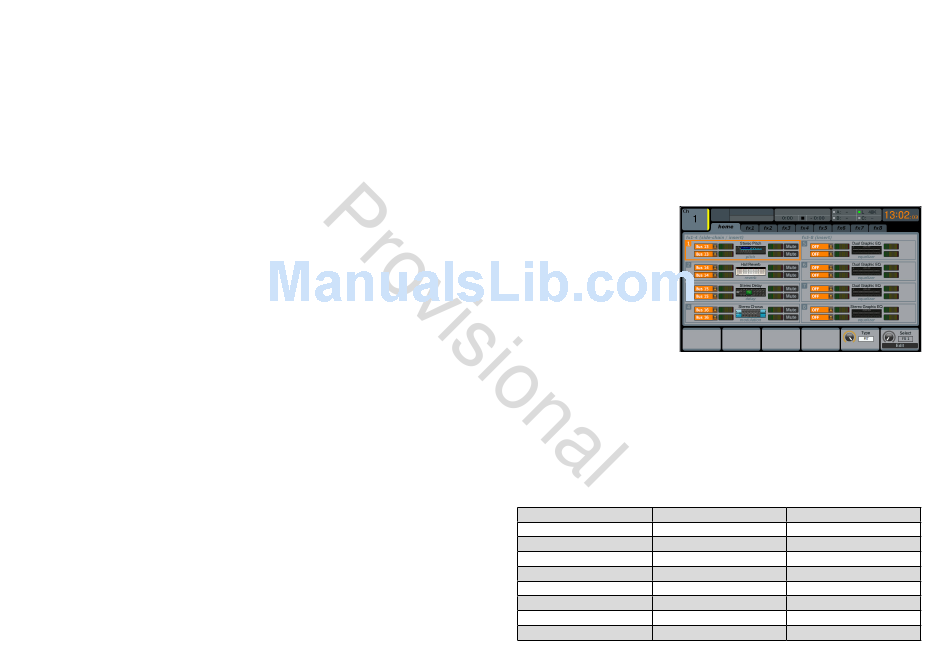

The EFFECTS screen's home tab provides a
high-level overview of the eight effects processor
slots, giving the user at-a-glance feedback on
the effects they have assigned to the slots, the
console source and destination for each processor,
and the input/output levels for each processor.
To make adjustments on the EFFECTS screen's
home tab, perform the following steps:
1. Adjust the first rotary control to select the
input source for the currently highlighted
effects block. Signal path choices include:
• Insert Send
• Mix Bus 1-16.
2. Tap the first control to assign the currently selected input source.
3. Adjust the second control to select the input source for the right side of the currently highlighted effects block.
4. Tap the second control to assign the currently selected input source.
TIP: To configure an effect as mono input and stereo output, set both input sources to the same signal path
5. Tap the third and fourth controls to mute the currently selected effect.
6. Adjust the fifth control to scroll among the different audio effects available. Choices include:
Hall Reverb
Ambience
Rich Plate Reverb
Room Reverb
Chamber Reverb
Plate Reverb
Vintage Reverb
Vintage Room
Gated Reverb
www.theaudiospecialists.eu
M32 - Digital Console User Manual
Delay + Chamber M/S Fair Comp
Chorus + Chamber Dual Fair Comp
Flanger + Chamber Stereo Leisure Comp
Delay + Chorus Dual Leisure Comp
Delay + Flanger Stereo Ultimo Comp
Modulation Delay Dual Ultimo Comp
Dual Graphic EQ Dual Enhancer
Stereo Graphic EQ Stereo Enhancer
Dual TruEQ Dual Exciter
77
