Channel Strip - Group/Bus Channels

FADER FLIP - SENDS ON FADER Button
Press to activate the M32's Sends on Fader function. This function aids with the level setting of channels sent to any of
the 16 Mix Buses. It is only for channels assigned to Mix Buses 1-16, and does not work for DCA groups, main or matrix
buses. The Sends on Fader function works in two convenient ways to cover the most obvious situations in a live environ-
ment:
When preparing a monitor mix for a specified musician
• Select the monitor bus (BUS 1-8 or BUS 9-16) that feeds the musician's stage monitor
• Press the Sends on Fader button, which will then flash
• Select one of the three input channel layers (INPUTS 1-16, INPUTS 17-32, AUX IN / USB or BUS MAST)
• As long as Sends on Fader is active all faders in the input channels section correspond to the send levels on the
selected monitor mix bus.
When checking or editing where a selected input signal is to be sent
• Select the input channel in the left-hand section
• Press the Sends on Fader button, which will then flash
• Select either bus channel layer (BUS 1-8 or BUS 9-16)
• The bus faders now represent the send levels of the selected input channel.
TIP: Sends on Fader can also be used for conveniently sending Bus or Main M/C signals to Matrices.
Layer Select Buttons
GROUP DCA 1-8
Press this button to select the Group DCA layer.
BUS 1-8 / 9-16
Press one of these buttons to select either the Bus 1-8 layer or the Bus 9-16 layer.
MTX 1-6 / MAIN C
20

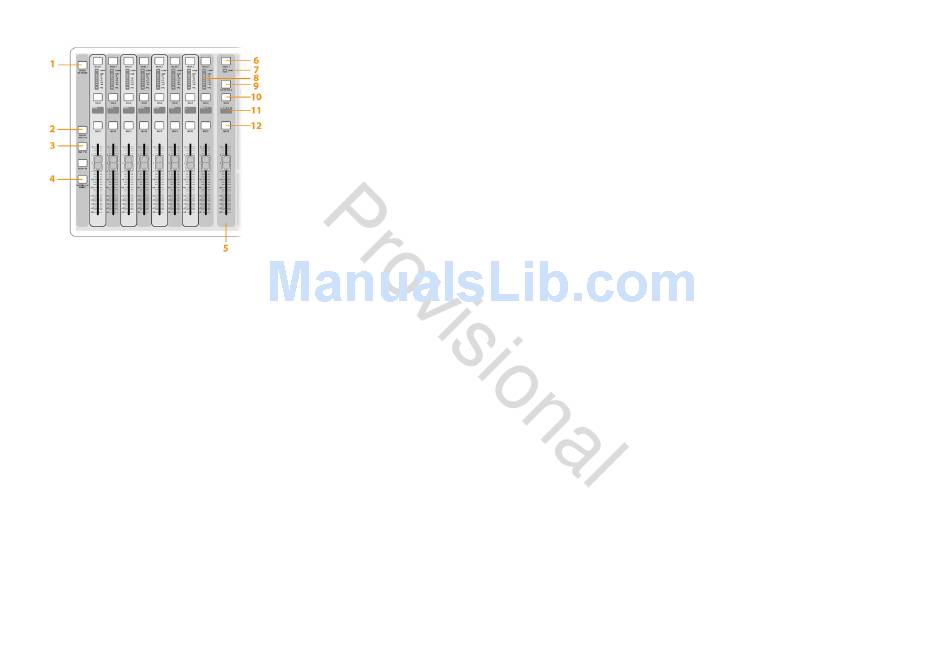

1. Fader Flip - Sends on Fader Button
2. Group DCA 1-8 Button
3. Bus 1-8, 9-16 Buttons
4. MTX 1-6 / Main C Button
5. Main Channel
6. SEL Button
7. COMP LED Indicator
8. LCD Display
9. CLR SOLO Button
10. SOLO Button
11. Scribble Strip
12. MUTE Button
www.theaudiospecialists.eu
M32 - Digital Console
Press to select the Aux In / USB channel layer.
Individual Channel Strip Controls
Each of the above layers operates in a similar way by use of the following controls:
SEL Button
Press to select a DCA or bus (depending on which layer is active) and allow it to be edited by the Channel Strip and Main
Display.
Channel Meter
This displays the signal level of the DCA or bus, depending on which layer is active. The PRE LED lights to indicate that the
bus is sourced pre-fader, while the COMP LED lights to indicate that compression is active.
SOLO Button
Press to send the channel to the solo bus.
Scribble Strip
Information such as channel number, input source and a graphic icon are displayed here.
MUTE Button
Press to mute the channel.
Fader
Use the MIDAS PRO Fader to adjust the channel volume or bus sends in Sends on Faders mode. The faders will automati-
cally display the current status as layers and functions are changed.
Main
SEL Button
Press to select the Main bus for editing.
COMP
The COMP indicator will illuminate when compression is being applied to the stereo output mix.
CLR SOLO Button
Press to clear all sources assigned to the solo bus.
SOLO Button
Press to solo the main bus.
Scribble Strip
Customisable information relating to the main bus are displayed here.
MUTE Button
Press to mute the main bus.
Fader
Use the MIDAS PRO Fader to adjust the output of the main bus.
User Manual
21
