Equaliser

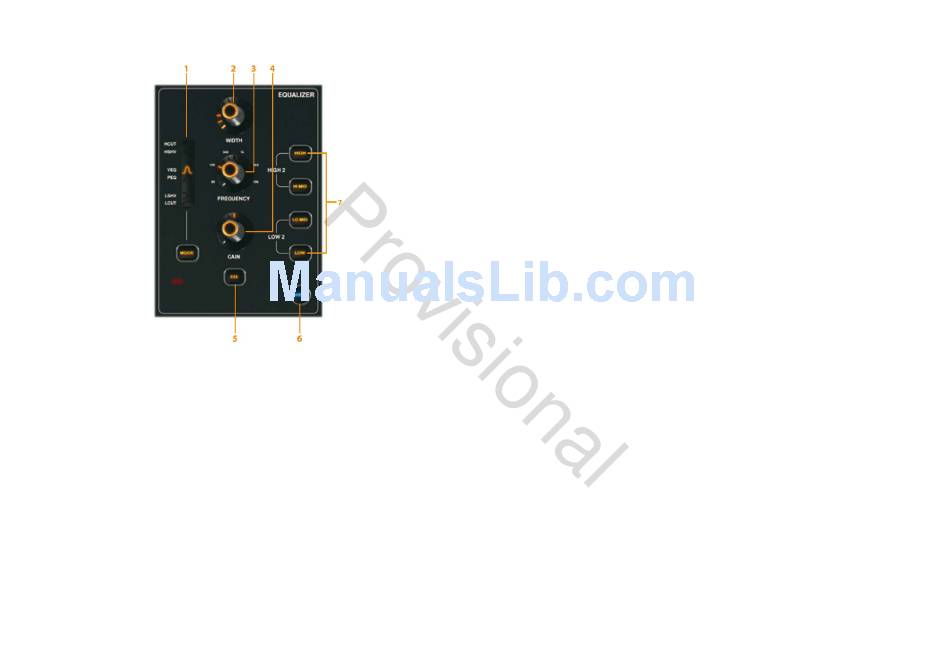

1. Mode Select Array
2. Width Rotary Control
3. Frequency Rotary Control
MODE Select Button and Display
Pressing the MODE button cycles through each of the EQ modes for the currently selected frequency range. Each of the
modes and the frequency ranges to which they apply are listed below:
HCUT
A high-cut function which attenuates signals above the selected frequency.
HSHV
A high-shelving function which boosts or attenuates signals above the selected frequency. Only available with the HIGH
2 - HIGH setting.
VEQ
A bell filter that provides a more 'Vintage EQ' sound. Available on all frequency settings.
PEQ
A bell filter that provides a classic 'Parametric EQ' sound. Available on all frequency settings.
LSHV
26
4. Gain Rotary Control
5. EQ Button
6. View Button
www.theaudiospecialists.eu
M32 - Digital Console
A low-shelving function which boosts or attenuates signals below the selected frequency. Only available with the LOW 2 -
LOW setting.
LCUT
A low-cut function which attenuates signals below the selected frequency.
NOTE: Low-Cut and High-Cut Modes do not have Gain and Width settings.
WIDTH Rotary Control
The WIDTH rotary control determines the span of frequencies around that specified by the FREQUENCY rotary control,
which will be affected by adjusting the GAIN control.
FREQUENCY Rotary Control
Select the specific frequency to be adjusted with the FREQUENCY rotary control. Each frequency can be adjusted between
20 Hz and 20 kHz. The equaliser provides four discreet filter bands for input channels and even six discreet bands for buses
and matrices as follows:
HIGH
A band intended for high frequencies, with access to HCUT, HSHV, VEQ and PEQ EQ modes.
HI MID
A band intended for high-mid frequencies, with access to VEQ and PEQ EQ modes.
LO MID
A band intended for low-mid frequencies, with access to VEQ and PEQ EQ modes.
LOW
A band intended for low frequencies, with access to LCUT, LSHV, VEQ and PEQ EQ modes.
HIGH 2
Press HIGH and HI MID concurrently to access the HIGH 2 band of any bus equaliser.
LOW 2
Press LOW and LO MID concurrently to access the LOW 2 band of any bus equaliser.
GAIN Rotary Control
Boost or attenuate the selected frequency by turning the GAIN rotary control. The selected equaliser band is inactive when
the Gain control is in the center position (0 dB).
EQ Button
Engages the EQ function for the selected channel.
VIEW
Press the VIEW button to access more detailed parameters on the Main Display. See the section Main Display - eq for
more details.
