MONITOR / CONTROL ROOM OUT

External Lamp Socket

Connect an external lamp via a standard 12 V / 5 W socket.
XLR Left & Right Sockets
Connect a pair of studio monitors using standard XLR cables.
BAL / UNBAL Left & Right Jack Sockets
Connect a pair of studio monitors using standard ¼" cables.

AC / POWER

Power On / Off

Turn the console on and off with the On / Off switch.

IEC Power Socket

Connect the console to a mains power supply via the standard IEC power socket.
110

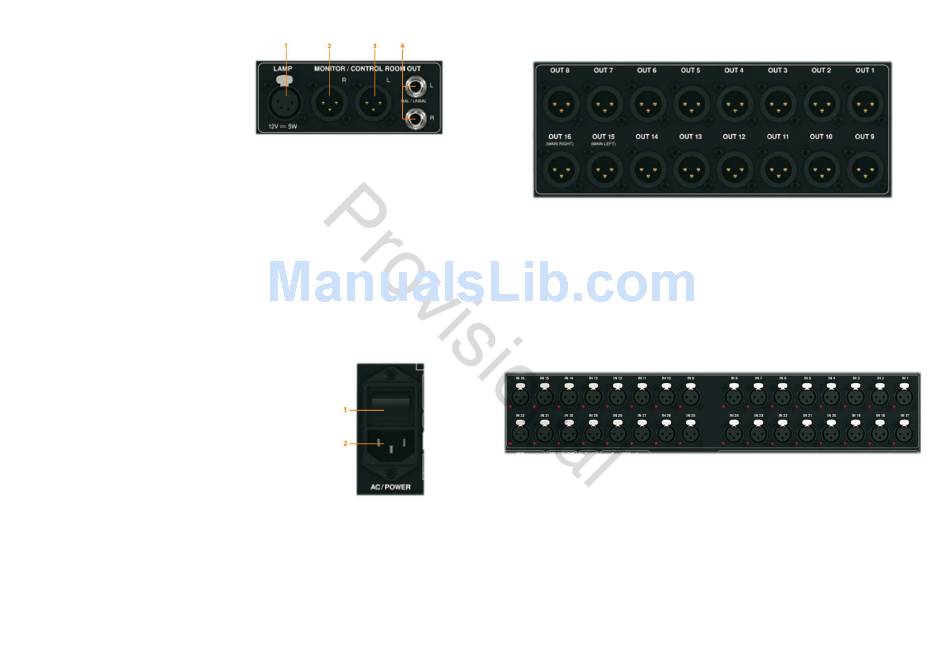

1. External Lamp Port
2. XLR Right Socket
3. XLR Left Socket
4. Bal / Unbal Left & Right Jack Sockets
1. Power On / Off Switch
2. IEC Power Socket
www.theaudiospecialists.eu
M32 - Digital Console

XLR OUT 1-16

Outputs 1-16

Send audio to external equipment using XLR cables. Outputs 15 and 16 by default carry the main stereo bus signals.

XLR IN 1-32

Inputs 1-32

Connect audio sources via XLR cables.
