M32 DIGITAL CONSOLE User Manual

effects

The LIBRARY screen's effects tab allows you to load and save presets for the
various onboard effects processors.
To adjust the various settings on the effects tab, perform the following steps:
1. Adjust the first push encoder to select which of the eight effects slots to load
or save a preset.
• As you navigate among the eight effects slots the specific effect
processor loaded into each slot will display on the screen as both a
name and an icon.
2. To save and load presets, as well as import/export them, follow the same
procedure as detailed in the LIBRARY screen channel tab.
routing
The LIBRARY screen's routing tab allows you to load and save presets of the
M32's signal routings. This can be useful for repeating specific routing scenarios
that occur over and over on a regular basis, such as when using the console for a
weekly club gig or worship service.
To adjust the various settings on the routing tab, perform the following steps:
1. Adjust the first push encoder to select which specific console signal paths
will be recalled when loading a routing preset. Choices include:
• Channel Inputs
• Analog Out
• Auxiliary Out
• P16 (Ultranet) Out
• Card Out
•
AES50 Out.
2. Tap the first encoder to turn the currently selected element on or off in the
recall list.
3. To save and load presets, as well as import/export them, follow the same
procedure as detailed in the LIBRARY screen channel tab.
2.6 Effects
The EFFECTS screen controls various aspects of the eight internal effects
processors. On this screen the user can select specific types of effects for the
eight internal processors, configure their input and output paths, monitor their
levels, and adjust the various effect parameters.
The first four slots can be Insert and Side-Chain effects, and the slots five to eight
are Insert only. Additionally these slots can only hold some effects excluding
reverbs and other power-intensive effects. They also have different selections for
the input sources.
The EFFECTS screen contains the following separate tabs:
home: The home tab provides a general overview for all eight effects
processors, displaying what effect has been inserted in each of the eight
slots, as well as displaying input/output paths for each slot, and the I/O
signal levels.
fx1-8: These eight duplicate screens display all relevant data for the right
separate effects processors, allowing the user to adjust all parameters for
the selected effect.

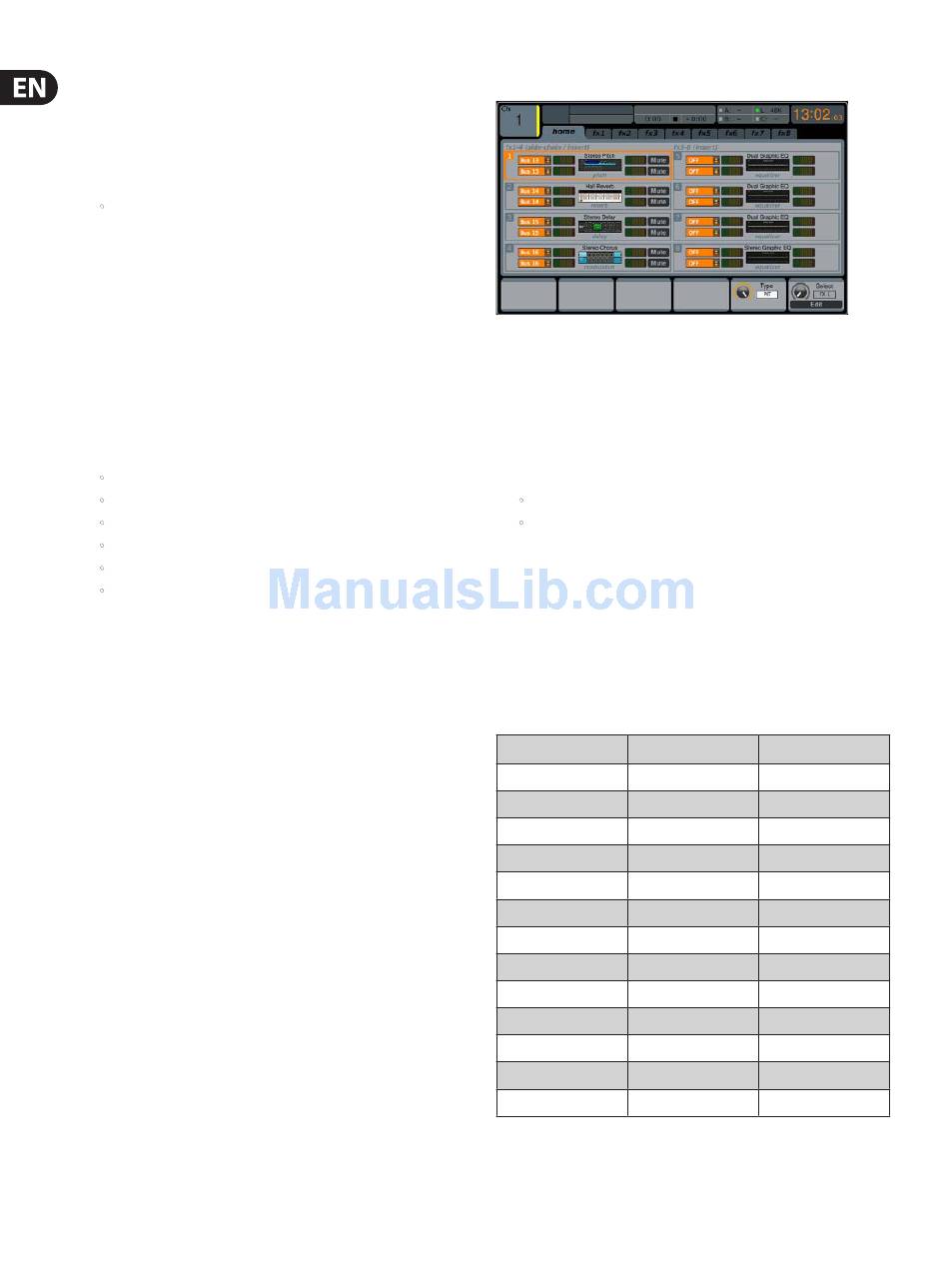

home
The EFFECTS screen's home tab provides a high-level overview of the eight
effects processor slots, giving the user at-a-glance feedback on the effects they
have assigned to the slots, the console source and destination for each processor,
and the input/output levels for each processor.
To make adjustments on the EFFECTS screen's home tab, perform the
following steps:
1. Adjust the first push encoder to select the input source for the currently
highlighted effects block. Signal path choices include:
• Insert Send
• Mix Bus 1-16.
2. Tap the first encoder to assign the currently selected input source.
3. Adjust the second encoder to select the input source for the right side of the
currently highlighted effects block.
4. Tap the second encoder to assign the currently selected input source.
TIP: To configure an effect as mono input and stereo output, set both input
sources to the same signal path
5. Tap the third and fourth encoders to mute the currently selected effect.
6. Adjust the fifth encoder to scroll among the different audio effects available.
Choices include:
Hall Reverb Delay + Chamber
Ambience Chorus + Chamber
Rich Plate Reverb Flanger + Chamber
Room Reverb Delay + Chorus
Chamber Reverb Delay + Flanger
Plate Reverb Modulation Delay
Vintage Reverb Dual Graphic EQ
Vintage Room Stereo Graphic EQ
Gated Reverb Dual TruEQ
Reverse Reverb Stereo TruEQ
Stereo Delay Dual DeEsser
Triple Delay Stereo DeEsser
Rhythm Delay Stereo Xtec EQ1
Stereo Chorus Dual Xtec EQ1
M/S Fair Comp
Dual Fair Comp
Leisure Comp
Dual Leisure Comp
Ultimo Comp
Dual Ultimo Comp
Dual Enhancer
Stereo Enhancer
Dual Exciter
Stereo Exciter
Stereo Imager
Edison EX1
Sound Maxer
Dual Guitar Amp
