  • Page 1 C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER 7-Series Instruction Booklet HS-730 HS-740...

  • Page 2: Table Of Contents

    7-Series Instruction Booklet TABLE OF CONTENTS INTRODUCTION -------------------------------------------------------1 IMPORTANT PRECAUTIONS ----------------------------------------2 ELECTROMAGNETIC INTERFERENCE AND WARNINGS ----3 IDENTIFICATION OF PARTS ----------------------------------------5 OPERATING YOUR SCOOTER ---------------------------------------7 DISASSEMBLING YOUR SCOOTER ---------------------------------9 ASSEMBLING YOUR SCOOTER ----------------------------------11 CHARGING THE BATTERIES --------------------------------------12 CARE AND MAINTENANCE ----------------------------------------13 TROUBLESHOOTING ------------------------------------------------14 TECHNICAL SPECIFICATIONS...

  • Page 3: Introduction

    Also, retain this booklet for future reference. If you have any questions, you can contact: C.T.M.HOMECARE PRODUCT, INC. 13815 Magnolia Ave. #B, Chino CA 91710 Toll Free : 1-866-466-8168 Tel : 909-590-1388 Fax : 909-590-3365 E-Mail : ctm@ctmhomecare.com http : //www.ctmhomecare.com...

  • Page 4: Important Precautions

    7-Series Instruction Booklet IMPORTANT PRECAUTIONS Only one person at a time can ride a C.T.M. Mobility Scooter. Maximum load is 181 kg / 399 lbs. Turn key off before getting on or off. Always drive carefully and be aware of others using the same area as yourself. Always use pedestrian crossings where possible.

  • Page 5: Electromagnetic Interference And Warnings

    7-Series Instruction Booklet ELECTROMAGNETIC INTERFERENCE AND WARNINGS CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones.
  • Page 6 7-Series Instruction Booklet Motorized Scooter Electromagnetic Interference Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the motorized scooter control system while using these devices.

  • Page 7: Identification Of Parts

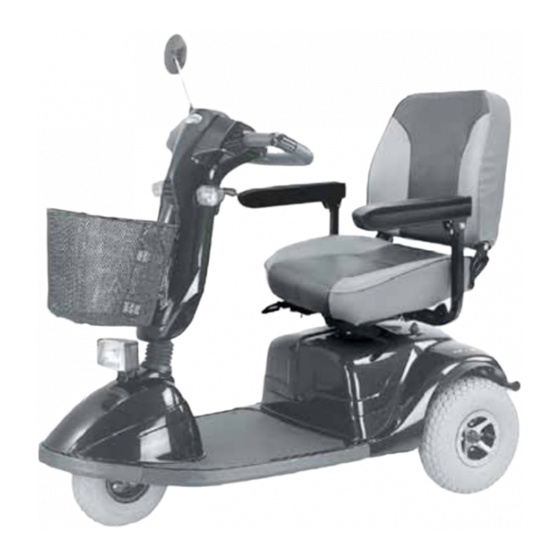

    7-Series Instruction Booklet IDENTIFICATION OF PARTS Before attempting to drive this scooter on your own, it is important that you familiarize yourself with the controls, and how to operate Mirror Delta handle bar Tall Back Rotating Seat-Sliding Adjustment Tilting Armrest Front Basket Seat Rotation Head Light...
  • Page 8 7-Series Instruction Booklet FUNCTION OF PARTS TOP CONTROL PANEL Speed Dial Knob Turning knob counter-clock, scooter will reduce speed. Turning speed knob clock-wise, scooter will gain speed. Total control speed will be transferred to the thumb lever controls. Self Diagnostic Warning Light Fig. 2 A flash code will inform of a malfunction of scooter.

  • Page 9: Operating Your Scooter

    7-Series Instruction Booklet OPERATING YOUR SCOOTER You can make the following adjustments to increase your comfort when driving. adjust seat height and location adjust steering column to comfortable position. adjust legroom. 1.Before operating your scooter, check the following: free-wheeling device on D speed dial is at the turtle picture.
  • Page 10 7-Series Instruction Booklet Keep in mind these rules Release thumb levers and allow scooter to stop completely before changing from forward to reverse, or reverse to forward. When turning a corner, swing the front wheels wide, because the back wheels will turn more tightly.

  • Page 11: Disassembling Your Scooter

    7-Series Instruction Booklet DISASSEMBLING YOUR SCOOTER No tools are necessary to disassemble scooter. You can disassemble scooter for transportation. Remove seat by releasing Seat Rotation Lever (A) and then lift off. (See Fig. 4) Remove Battery Cover (B) by pressing button in center. (See Fig. 5) Figure 4 Figure 4 Figure 5...
  • Page 12 7-Series Instruction Booklet Remove Rear Hood (H) by pushing the end forward. (See Fig. 10) Release two Locking Pins (I) to separate front and rear units. (See Fig. 11) Figure 10 Figure 10 Figure 11 Figure 11 With one hand on Rear Frame (J) and other on Seat Piller (K) as Hand hold. detach front and rear sections.

  • Page 13: Assembling Your Scooter

    7-Series Instruction Booklet ASSEMBLING YOUR SCOOTER To assemble the scooter, you can repeat the disassembly directions in reverse. Abbreviated directions are given below. Refer to the Figures on pages 11 - 12 to locate the parts. 1.Use the tiller angle adjustment lever to move the steering column up out of the way. 2.Place the front basket 3.Tilting the rear end to a horizontal position, insert the scooter frame tube of the front end into the rear section first, making sure that the locking pins are removed.

  • Page 14: Charging The Batteries

    7-Series Instruction Booklet CHARGING THE BATTERIES Batteries must be charged before using the scooter for the first time and should be recharged after each day use. You will need the scooter and the battery charger. Each country may supply different charger.

  • Page 15: Care And Maintenance

    7-Series Instruction Booklet CARE AND MAINTENANCE Cleaning Your Scooter If your scooter is dirty, use a damp or lightly soapy cloth to wipe it down. Do not use running water to wash or rinse the scooter in order to protect the electrical parts. Polish with an automotive liquid polish.

  • Page 16: Troubleshooting

    7-Series Instruction Booklet TROUBLESHOOTING Here are some suggestions about solving problems you may have with your scooter. There is a Self-Diagnostic Warning Light on the Control Panel. To check the Self-Diagnostic Warning Light, turn on the key and count the number of blinks on the Warning Light. Number of Problem Solution...

  • Page 17: Technical Specifications

    7-Series Instruction Booklet SPECIFICATION SPECIFICATIONS HS-730 HS-740 Overall Length 52.8" 54.7" Overall Width 26.6" 26.6" Overall Height 40" 40" Wheels: Front 10" 11" Wheels: Rear 13" 13" Weight w/ Batteries 217.7 lbs 246.4 lbs Max. Speed 7.5 mph 7.5 mph...
