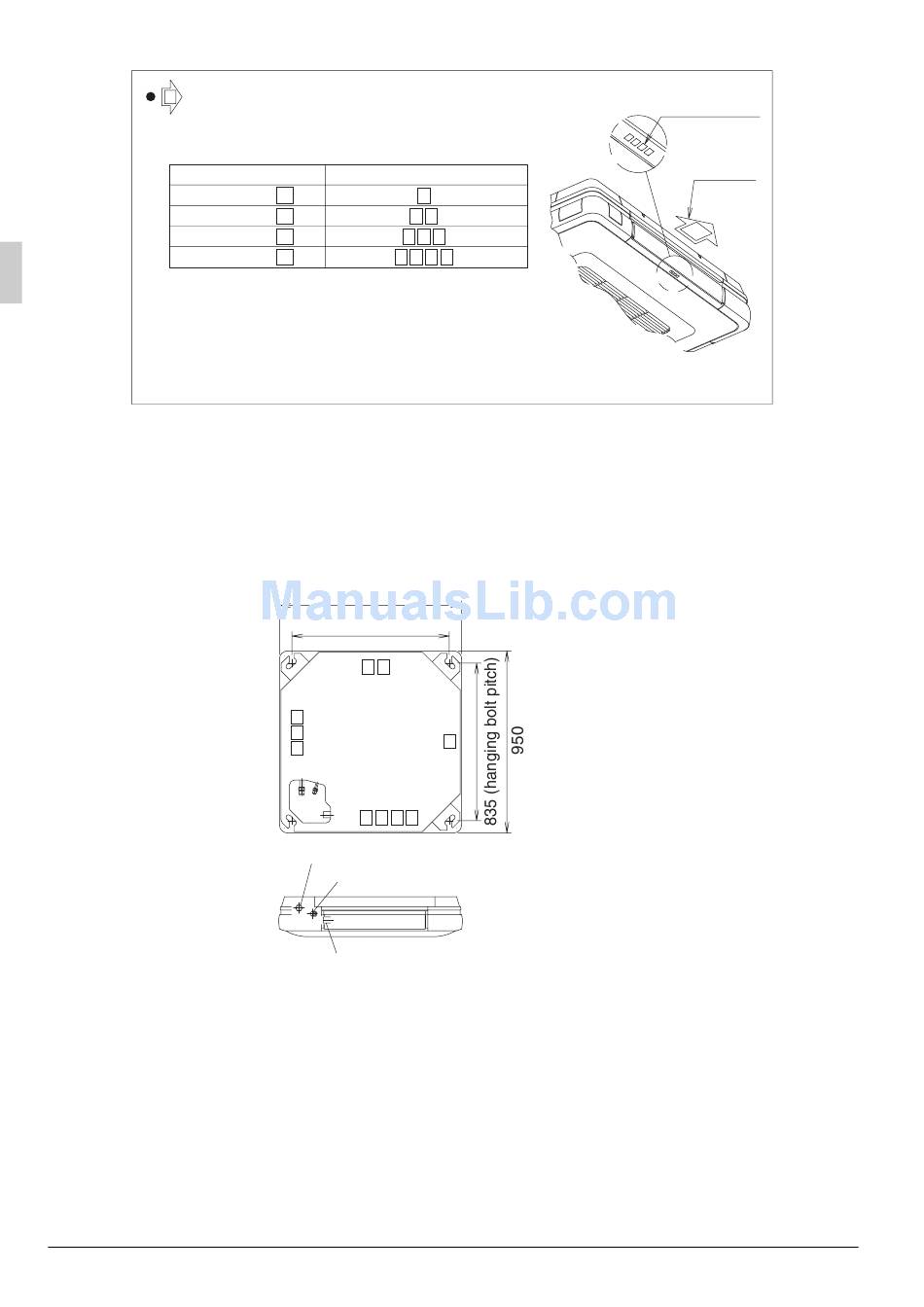

* : This indication shows the air discharge direction.
For cross-reference of air outlet No. to indication
on indoor unit.
Name of air outlet
Air outlet 1
Air outlet 2
Air outlet 3
Air outlet 4

4. PREPARATION BEFORE INSTALLATION

(1) Check the locations of indoor unit hanging bolts, piping outlet holes, drain piping outlet hole and
electric wirings inlet hole. (The drawing shows the view from the ceiling.)
(Refer to Fig. 5 and Fig. 6)
7
Indication on indoor unit
Fig. 4
950
835 (hanging bolt pitch)
Gas piping
Liquid piping
Drain connection outlet
(VP20)
Fig. 5
Indication on
indoor unit
No. of air
outlet
4
Indoor unit
(unit [mm])
