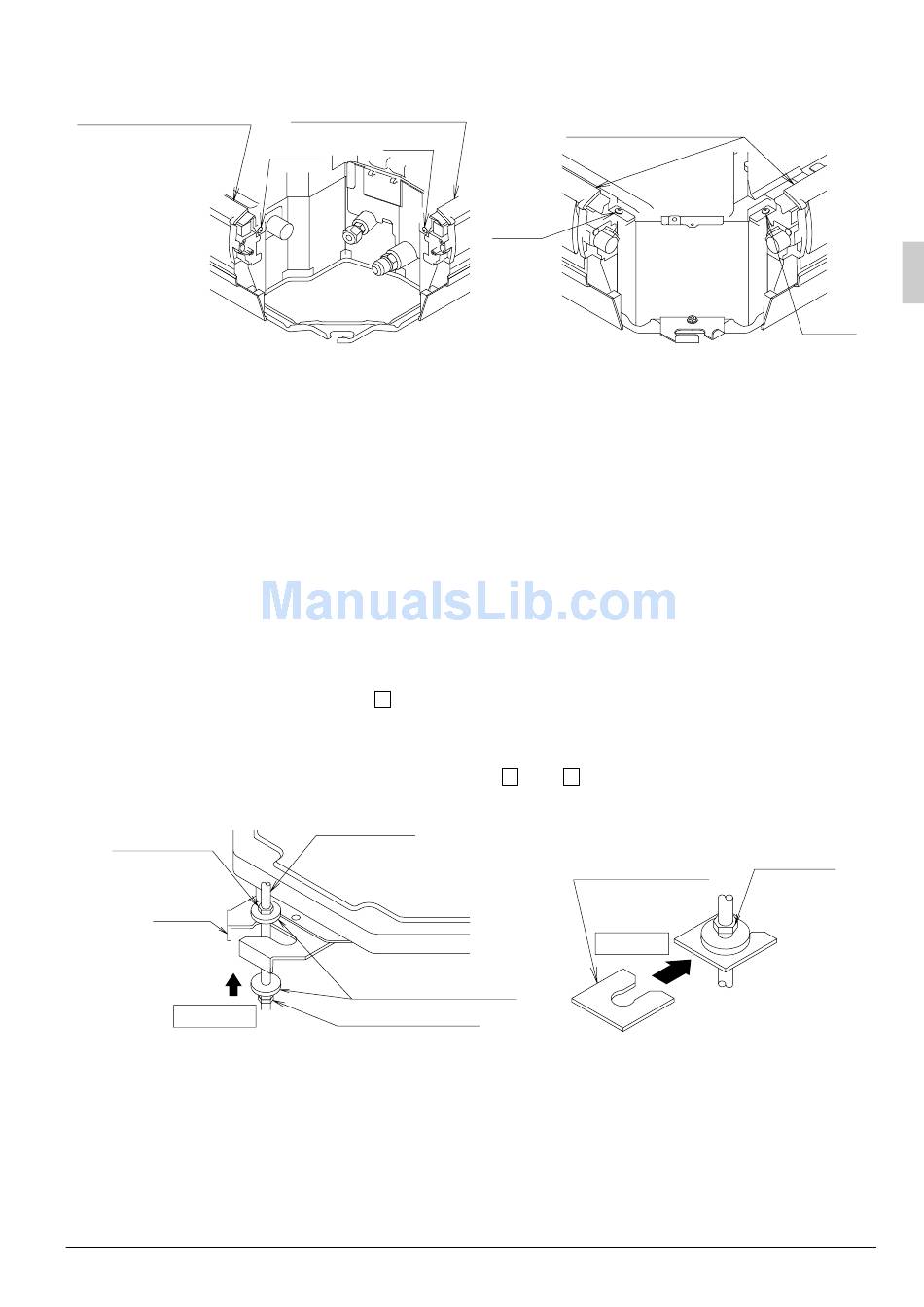

* If the blocking material is difficult to insert, loosen the left and right screws of the lower decoration panel and
insert it. Make sure to tighten the loosened screws again after the blocking material is fixed. (Refer to Fig. 14)
Lower decoration panel
< Screw location of piping >

5. INSTALLATION OF THE INDOOR UNIT

〈〈It is easy to attach the optional parts before installing the indoor unit. Refer to also the installation
manual attached to the optional parts.〉〉
For installation, use the attached installation parts and specified parts.
(1) Attach the upper and lower nuts and the washers for the hanger (3) to the 4 hanging bolts.
(Refer to Fig. 15)
If the attached washer clamp (5) are used, the washer for the hanger (3) can be prevented from falling off.
(Refer to Fig. 16)
(2) Installation of indoor unit. (Refer to Fig. 17)
• Insert the hangers on the air outlet
• Insert the remaining 2 hanging bolts into the hanger and fix the underside washers for the hanger (3) and
the nuts.
(3) Check the level of the unit from 2 directions (air outlet
Nut
(Field supply)
Hanger
Tighten
English
Lower decoration panel
Screw
Screw
4 side and hang them tentatively.
Hanging bolt
Washer for hanger (3)
(accessory)
Nut (Field supply)
To fix hanger
Fig.15
Lower decoration panel
Screw
< Screw location other than piping part >
Fig.14
1 and 2 ). (Refer to Fig. 18)
Washer clamp (5)
(accessory)
Insert
Washer fixing method
Screw
Upper nut
Fig.16
