Page 1: Operation Manual

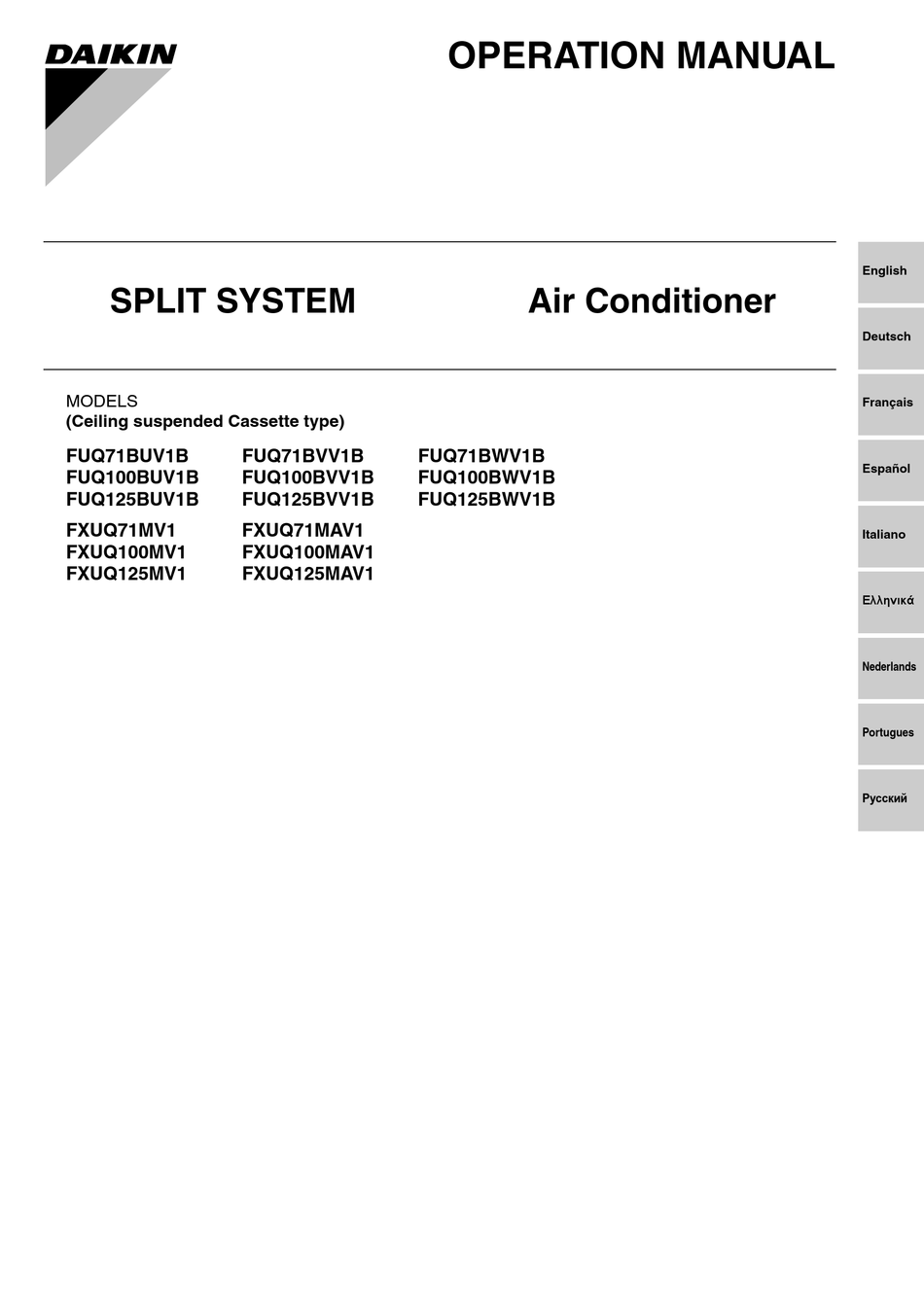

OPERATION MANUAL English SPLIT SYSTEM Air Conditioner Deutsch MODELS Français (Ceiling suspended Cassette type) FUQ71BUV1B FUQ71BVV1B FUQ71BWV1B Español FUQ100BUV1B FUQ100BVV1B FUQ100BWV1B FUQ125BUV1B FUQ125BVV1B FUQ125BWV1B FXUQ71MV1 FXUQ71MAV1 Italiano FXUQ100MV1 FXUQ100MAV1 FXUQ125MV1 FXUQ125MAV1 ΕλληνικÜ Nederlands Portugues Русский... - Page 2 Funktionen der Schalter und Anzeigen auf der Fernbedi- enung. Nous vous remercions pour votre acquisition de ce clima- Wij danken u voor de aankoop van deze Daikin aircondi- tiseur Daikin. tioner. Lees deze bedrijfshandleiding aandachtig door Lisez attentivement ce manuel avant d’utiliser le climati- voordat u de airconditioner gebruikt.
-
Page 3: Disposal Requirements
■ DISPOSAL REQUIREMENTS ■ VORSCHRIFTEN ZUR ENTSORGUNG ■ INSTRUCTIONS D’ÉLIMINATION ■ REQUISITOS PARA LA ELIMINACIÓN ■ SPECIFICHE DI SMALTIMENTO ■ ΠΡΟΫΠΟΘΕΣΕΙΣ ΑΠΟΡΡΙΨΗΣ ■ VEREISTEN VOOR HET OPRUIMEN ■ REQUISITOS PARA A ELIMINAÇÃO Disposal requirements Specifiche di smaltimento Your air conditioning product is marked with this symbol. This means that Il climatizzatore è... -
Page 4: Table Of Contents
This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. NOTE Refrigerant type : R410A • Contact your Daikin dealer in case of changing value : 1975 the combination or setting of group control and GWP = global warming potential two remote controllers control systems. -
Page 5: Safety Precautions
Inlet air Discharged air If your installation has a customized control system, Air outlet ask your Daikin dealer for the operation that corre- sponds to your system. Air flow flap (at air outlet) Refrigerant piping, connection electric wire • Heat pump type, Heat recovery type... - Page 6 • The precautions described herein are classi- Consult your local dealer regarding what to do in case of refrigerant leakage. fied as WARNING and CAUTION. They both When the air conditioner is to be installed in a contain important information regarding small room, it is necessary to take proper mea- safety.
- Page 7 Do not use flammable materials (e.g., hair- Do not allow a child to mount on the outdoor spray or insecticide) near the product. unit or avoid placing any object on it. Do not clean the product with organic sol- Falling or tumbling may result in injury. vents such as paint thinner.
-
Page 8: Operation Range
Do not leave the remote controller wherever HEATING there is a risk of wetting. OUTDOOR INDOOR OUTDOOR If water gets into the remote controller there is a UNIT TEMPERATURE TEMPERATURE risk of electrical leakage and damage to elec- tronic components. –19.5 to 21 RZQ71, 100, Watch your steps at the time of air filter... -
Page 9: Installation Site
Where there is much salt such as a beach area • Operating procedure varies with heat pump type c. Where sulfured gas exists such as a hot-spring and cooling only type. Contact your Daikin dealer resort to confirm your system type. -
Page 10: Optimum Operation
• Do not wash the air conditioner with water 6. OPTIMUM OPERATION Doing so may result in an electric shock. • Be careful with a scaffold or staging Observe the following precautions to ensure the Caution must be exercised because of work at a system operates. - Page 11 4. Fix the air filter 2 With the suction grille in the open position, 1 Slide the air filter along the suction grille’s remove the suction grille by pushing it up as frame and push it into the protruding section of shown.
-
Page 12: Not Malfunction Of The Air Conditioner
• When the main power switch is turned on, some becomes uneven. It is necessary to clean the watts of electricity is being used even if the sys- inside of the indoor unit. Ask your Daikin dealer for tem is not operating. details on cleaning the unit. This operation Turn off the main power supply switch for saving requires a qualified service person. -
Page 13: Trouble Shooting
VI.THE LIQUID CRYSTAL OF THE REMOTE CON- MALFUNCTION CODE TROLLER SHOW “ ” Measure: Notify your Daikin dealer and inform • It happens immediately after the main power him/her of the display. supply switch is turned on. II. If the system does not properly operate... - Page 14 • If the set temperature is not proper (Refer to the operation manual attached to the remote controller). • If the FAN SPEED button is set to LOW SPEED (Refer to the operation manual attached to the remote controller). • If the air flow angle is not proper (Refer to AIR FLOW DIRECTION ADJUST).
- Page 15 3P170549-15K EM11A074 (1201) HT...
