NOTE
1. Terminal numbers of outdoor and indoor units must be matched.
2-1. Connect the remote controller only to the master unit.
2-2. The remote controller needs to be wired only to the master unit; it does not need to be connected to the
slave units through transition wiring. (Do not connect transition wiring to the slave units.)
2-3. The indoor temperature sensor is effective only for indoor units to which the remote controller is con-
nected.
2-4. The length of wiring between the indoor unit and the outdoor unit varies depending on the connected
model, the number of connected units, and the maximum piping length.
For details, refer to the technical documents.

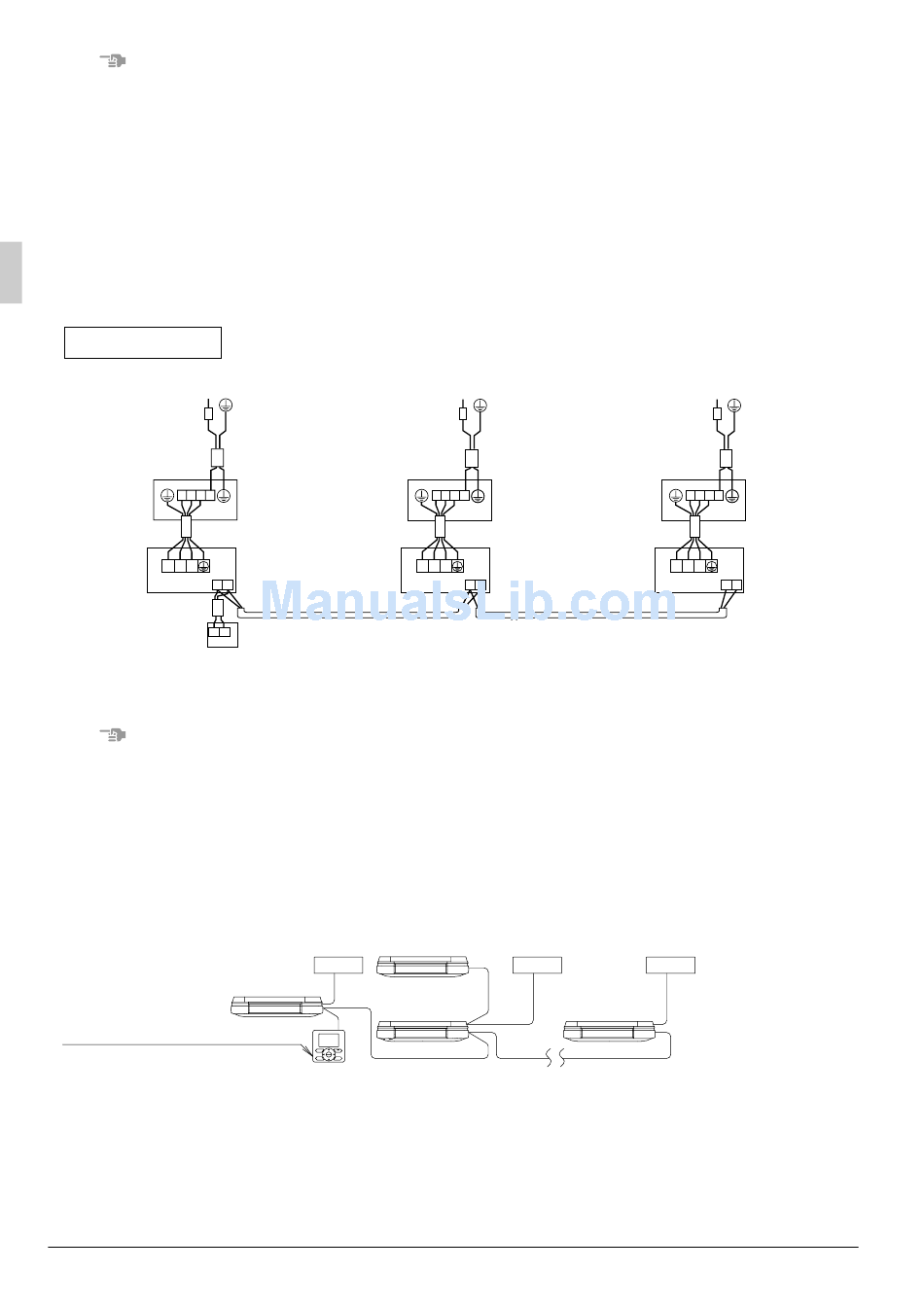

• Group control: 1 remote controller controls up to 16 indoor units
(All indoor units operate according to the remote controller). (Refer to Fig. 42)
Group control
Earth leakage
breaker
Outdoor unit
1 2 3
NOTE)
1 2 3
P1 P2
Indoor unit
P1 P2
NOTE
• Terminal numbers of outdoor and indoor units must be matched.
When implementing group control
• When using as a pair unit or as a master unit for simultaneous multiple unit operation, you may carry out
simultaneous start/stop (group) control up to 16 units with the remote controller. (Refer to Fig. 43)
• In this case, all the indoor units in the group will operate in accordance with the group control remote con-
troller.
• Select a remote controller which matches as many of the functions in the group as possible.
Group control remote controller
27
Power supply
220-240V
~ Earth leakage
50Hz
breaker
Outdoor unit
Indoor unit
Group control remote controller
(Optional accessories)
Indoor unit
(Slave)
Outdoor unit 1
Indoor unit 1
Indoor unit 2
(Master)
Power supply
220-240V
~
50Hz
1 2 3
NOTE)
1 2 3
P1 P2
Fig. 42
Outdoor unit 2
Indoor unit 16
Fig. 43
Power supply
220-240V
Earth leakage
50Hz
breaker
Outdoor unit
1 2 3
NOTE)
1 2 3
P1 P2
Indoor unit
Outdoor unit 16
For simultaneous
operation type, be
sure to perform the
remote controller
wiring through the
master unit.
~
