• Keep the distance of 50mm or more between the low voltage wiring (remote controller wiring) and the
high voltage wiring (transmission wiring, earth wiring) at anywhere outside the indoor unit. If both the wir-
ings are laid down together, they may be affected by electric noise (outside noise) and cause malfunction
or failure.
WARNING
When wiring, form the wiring orderly so that the control box lid can be securely fastened.
If the control box lid is not in place, the wiring may float up or be sandwiched by the box and the lid and
cause electric shocks or a fire.

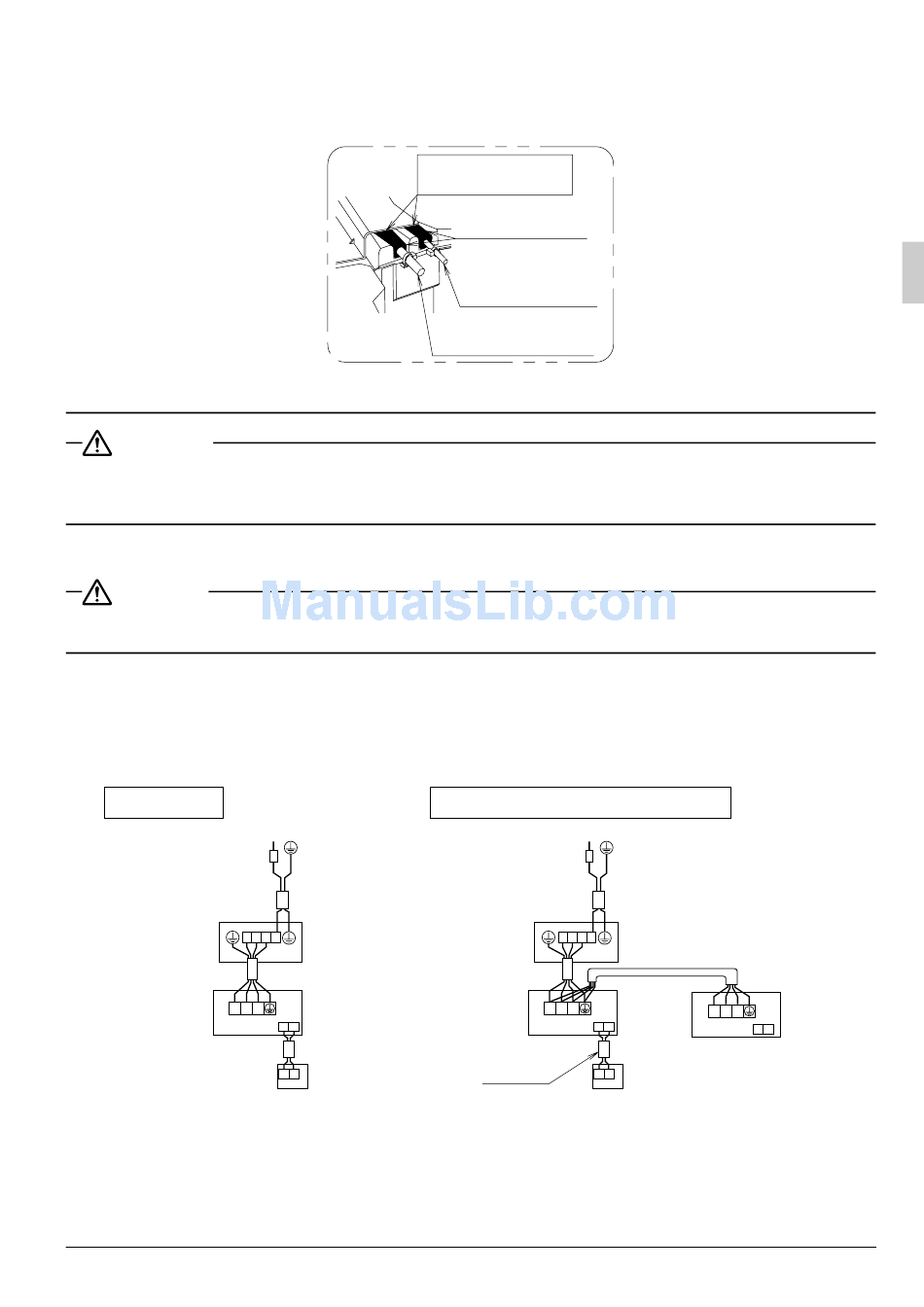

8-4 WIRING EXAMPLES
CAUTION
Be sure to install an earth leakage breaker to the outdoor unit.
This is to avoid electric shocks or a fire.
For the wiring of outdoor units, refer to the installation manual attached to the outdoor units.
Confirm the system type.
• Pair type: 1 remote controller controls 1 indoor unit (standard system). (Refer to Fig. 40)
• Simultaneous operation system: 1 remote controller controls 2 indoor units (2 indoor units operates
equally). (Refer to Fig. 41)
Pair type
Earth leakage
breaker
Outdoor unit
1 2 3
Indoor unit
Remote controller
(Optional accessories)
Fig. 40
English
Power supply
220-240V
~
50Hz
1 2 3
NOTE 1)
P1 P2
P1 P2
Seal with putty and
insulating material.
Sealing material
(Small) (9)
Remote controller
wiring
Transmission wiring/
earth wiring
Fig. 39
Simultaneous operation system
Earth leakage
breaker
Outdoor unit
1 2 3
NOTE 1)
1 2 3
P1 P2
Indoor unit (Master)
NOTE 2)
P1 P2
Fig. 41
Power supply
220-240V
~
50Hz
1 2 3
P1 P2
Indoor unit (Slave)
Remote controller
(Optional accessories)
