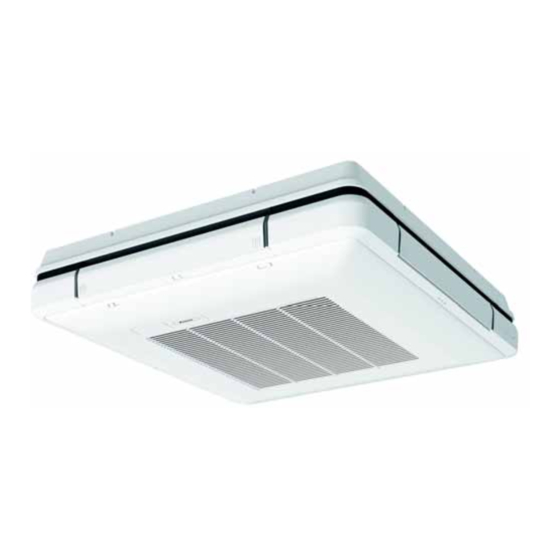

Air Conditioning Technical Data 4-way blow ceiling suspended unit EEDEN13-100 FUQ-C... -
Page 3: Table Of Contents
• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-C TABLE OF CONTENTS FUQ-C Features ............. 2 Specifications . -
Page 4: Features
• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-C Features F U Q • User friendly remote control with contemporary design • Set up to 3 independent schedules, so the user can easily change the schedule himself throughout the year (e.g. summer, winter, mid- •... -
Page 5: Specifications
• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-C Specifications 2-1 Technical Specifications FUQ7 1C FUQ100C FU Q125 C Power input - 50Hz Cooling Nom. 0.109 0.163 0.185 Heating Nom. 0.103 0.158 0.180 Casing Colour Fresh White Material Resin Dimensions Unit... -
Page 6: Technical Specifications
• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-C Specifications 2-1 Technical Specifications FUQ7 1C FU Q100 C FUQ12 5C Sound pressure level Cooling High/Nom./Low 41/38/35 46/42/39 47/43/40 Heating Super high/High/ -/41/38/35 -/46/42/39 -/47/43/40 Nom./Low Refr iger ant Type R- 410A Piping connections... -
Page 7: Safety Device Settings
• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-C Safety device settings 3 - 1 Safety Device Settings • Split - Sky Air • Indoor Unit... -
Page 8: Options
• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-C Options 4 - 1 Options • Split - Sky Air • Indoor Unit... -
Page 9: Dimensional Drawings
• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-C Dimensional drawings 5 - 1 Dimensional Drawings • Split - Sky Air • Indoor Unit... -
Page 10: Piping Diagrams
• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-C Piping diagrams 6 - 1 Piping Diagrams • Split - Sky Air • Indoor Unit... -
Page 11: Wiring Diagrams
• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-C Wiring diagrams 7 - 1 Wiring Diagrams - Single Phase • Split - Sky Air • Indoor Unit... -
Page 12: External Connection Diagrams
• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-C External connection diagrams 8 - 1 External Connection Diagrams • Split - Sky Air • Indoor Unit... -
Page 13: Sound Data
• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-C Sound data 9 - 1 Sound Pressure Spectrum • Split - Sky Air • Indoor Unit... - Page 15 Daikin’s unique posit ion as a m anufact urer of air Daik in Europe N. V. participat es in the Eu- c ondit ioning equipment, c om press ors and refriger- rovent Cert ification programme for Air con- ants has led to it s close involvement in environmen- ditioners (AC), Liquid Chill ing Pack ages t al issues.
